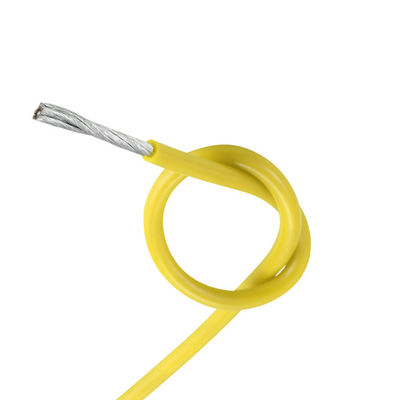

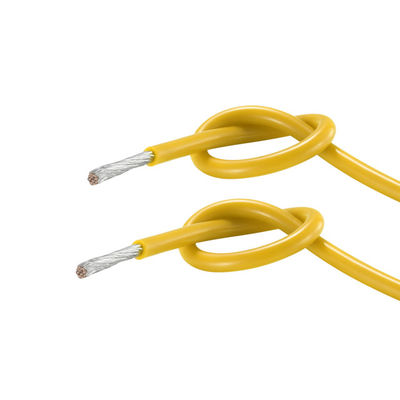

2.5mm2 UL3135 20AWG Flexible Electical Wire Tinned Copper

  • 2.5mm2 UL3135 20AWG Flexible Electical Wire Tinned Copper
  • 2.5mm2 UL3135 20AWG Flexible Electical Wire Tinned Copper
  • 2.5mm2 UL3135 20AWG Flexible Electical Wire Tinned Copper
  • 2.5mm2 UL3135 20AWG Flexible Electical Wire Tinned Copper
  • 2.5mm2 UL3135 20AWG Flexible Electical Wire Tinned Copper
  • 2.5mm2 UL3135 20AWG Flexible Electical Wire Tinned Copper
  • 2.5mm2 UL3135 20AWG Flexible Electical Wire Tinned Copper
Place of Origin Guangdong
Brand Name Mysun
Certification UL,ISO9001,CE,RoHS,CCC,VDE
Model Number 3135-20AWG
Minimum Order Quantity 1000 meter
Price Negotiable
Packaging Details 305/610 Meters Per Roll
Delivery Time 5-10 working day
Payment Terms T/T , Western Union, MoneyGram
Supply Ability 2000000+meters+ Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Applications Industrial Power,home Appliance Colors All Colors
Standard UL 758 Insulation Silicone Rubber
Conductor Tinned Copper Insulation Material Silicone Rubber
Character High Temperature Wire Working Temperature -60C°-200C°
Size 0.3mm2-2.5mm2 12AWG~26AWG
High Light

20AWG Flexible Electical Wire

,

UL3135 Flexible Electical Wire

,

2.5mm2 Silicone Hook Up Wire
Leave a Message
Product Description



Silicone Wire Heat Resistance , Flexible Electical Wire UL 3135 20 AWG,Silicone Hook Up Wire



Specifications:
Nominal voltage: 600V
Temperature range: 200℃
Standard: UL758
Insulation: silicone rubber
Conductor: Tinned copper wire

Colors: All colors



Advantages of Silicone Rubber Wire

  • Excellent aging resistance, even under extreme conditions.
  • High resistance to many different chemical substances.
  • Outstanding electrical properties.
  • Extreme flexibility.



BRAND STORY


2.5mm2 UL3135 20AWG Flexible Electical Wire Tinned Copper 0



Cooperative Enterprise
2.5mm2 UL3135 20AWG Flexible Electical Wire Tinned Copper 1



Product dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.78 2.04 143 305/1000
24 7/0.20 0.61 0.78 2.17 89.3 305/1000
22 7/0.254 0.77 0.78 2.33 56.4 305/1000
20 7/0.31 0.94 0.78 2.5 35.2 305/1000
18 7/0.39 1.19 0.78 2.75 22.2 305/1000
16 7/0.49 1.49 0.78 3.05 14 305/1000
24 11/0.16 0.61 0.78 2.17 89.3 305/1000
22 17/0.16 0.76 0.78 2.32 56.4 305/1000
20 26/0.16 0.94 0.78 2.5 35.2 305/1000
18 41/0.16 1.18 0.78 2.74 22.2 305/1000
16 26/0.254 1.49 0.78 3.05 14 305/1000
14 41/0.254 1.87 0.78 3.43 8.78 305/1000
12 19/0.47 2.63 0.78 3.92 5.53 305/1000
0.30mm² 12/0.18 0.71 0.78 2.27 59.78 305/1000
0.50mm² 20/0.18 0.92 0.78 2.48 40.1 305/1000
0.75mm² 30/0.18 1.13 0.78 2.69 26.7 305/1000
1.00mm² 40/0.18 1.31 0.78 2.87 20 305/1000
1.25mm² 50/0.18 1.46 0.78 3.02 14.35 305/1000
2.00mm² 41/0.254 1.87 0.78 3.43 8.78 305/1000
2.50mm² 50/0.254 2.08 0.78 3.64 7.16 305/1000



Service

Packaging : Hard cardboard carton ( Customizable)

Shipment:
1. by express
2. by sea

If you have your own shipper,you can tell me in advance.

My targert is to give my best serivce for you and hope we can have a good cooperation!


Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days







FAQ:



1, What’s the delivery date?

Most of the commonly used products are in Stock. We can arrange it within one day.

We will arrange the delivery date as your requirement while the Bulk Production.



2, How to visit your factory/company?

We are located in Shenzhen City, Guangdong Province, closed to Guangzhou, Dongguan and Hong Kong. Only one and a half hours drive away. Convenient for visit.



3, What’s the payment terms?

LC, TT, Western Union, Money Gram and PayPal



4, What’s the MOQ?

One roll. 100M/200M/300M/305M/500M/Roll.
