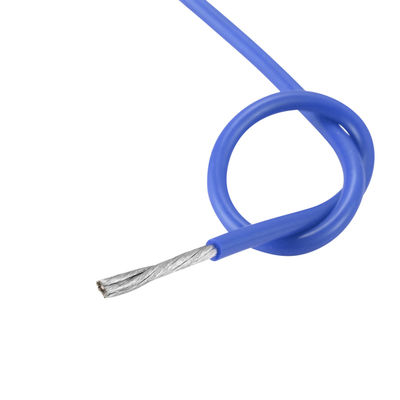

Silicone Rubber FT-2 Flame 2.5mm2 Flexible Insulated Wire ISO9001

Place of Origin CHINA
Brand Name MYSUN
Certification ISO9001
Model Number UL3512
Minimum Order Quantity 1000 meters
Price usd 0.05-2usd per meter
Packaging Details carton, pallet
Delivery Time 7-10 working days
Payment Terms T/T, Western Union
Supply Ability 1.5million per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
COLOR All Colors Are Avaiable Temperature -60-200C
Voltage 600V Flame Test FT-2
Usage Home Appliance/ Heater Certification UL/CUL
Core SINGLE
High Light

2.5mm2 Flexible Insulated Wire

,

FT-2 Flame Flexible Insulated Wire

,

ISO9001 Silicone Rubber Flexible Wire

Leave a Message
Product Description

high temperature Flexible Insulated Wire 2.5mm silicone rubber material yellow color


Silicone wire appliance:




Cable dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM) (M)(Ft)
0.50 20/0.18 0.95 0.78 2.51 40.1 305/1000
0.75 30/0.18 1.17 2.73 26.7
1.00 40/0.18 1.3 2.86 20
1.25 50/0.18 1.5 3.06 14.35
1.50 30/0.25 1.60 3.16 13.7
2.00 41/0.254 1.85 3.41 8.78
2.50 50/0.25 2.06 3.62 7.16
3.00 60/0.25 2.30 3.86 6.5
4.00 56/0.30 2.62 4.18 4.7


Certificate:

ISO9001,ISO14001. UL,CUL,












Mysun lab:

Good equipment lays a firm foundation for good products.Mysun has full set of test equipments, such as flame test chamber, aging
test machine, grinding test machine, abrasion resistance test machine, low temperature winding machine, air ventilation climatic
test chamber, high voltage tester, printing hardness fastness tester, projector, high temperature furnace and so on.

Silicone Rubber FT-2 Flame 2.5mm2 Flexible Insulated Wire ISO9001 0


Price term:
EXW, FOB, CIF

Payment terms:
LC, TT, Western Union and PayPal

Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days



FAQ:

Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 20 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power
Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines,
Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New
Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops
are equipped with advanced production and inspection equipment and the products strictly according to international standards or
customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What’s the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers’ requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar
model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C, O/A
