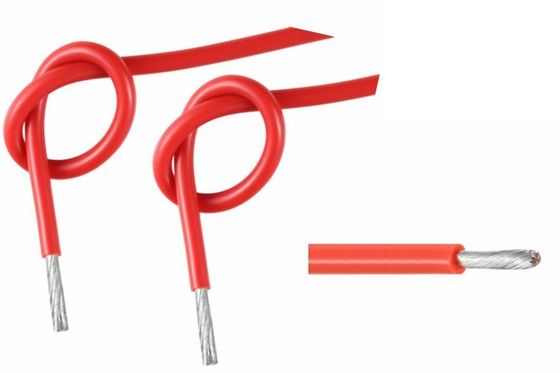

Heat Proof 200C 0.5sqmm UL3512 Flexible Insulated Wire

  • Heat Proof 200C 0.5sqmm UL3512 Flexible Insulated Wire
  • Heat Proof 200C 0.5sqmm UL3512 Flexible Insulated Wire
  • Heat Proof 200C 0.5sqmm UL3512 Flexible Insulated Wire
  • Heat Proof 200C 0.5sqmm UL3512 Flexible Insulated Wire
Place of Origin CHINA
Brand Name MYSUN
Certification UL CSA ROHS REACH
Model Number UL3512
Minimum Order Quantity 3050meters
Packaging Details carton, pallet
Delivery Time 7-10 working days
Payment Terms T/T, Western Union
Supply Ability 1.5million per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 0.5-4.0sqmm Color Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink
Voltage 600V Rated Temp 200C
Conductor Tinned Copper Insulation Silicone Rubber
Standard UL758 Sample Available
Lead Time 7-10 Working Days
High Light

UL3512 Flexible Insulated Wire

,

0.5sqmm Flexible Insulated Wire

,

S200C Silicone Insulation Electrical Wire
Leave a Message
Product Description

silicone insulation electrical wire flexible insulated wire UL3512


Silicone wire features:
Heat-proof electric cables using silicon rubber as an insulating material. The main uses are for home appliances, residential
facilities, office equipment, automotive electric appliances, etc., where its heat-resistance (180, 200 and 250 degrees
centigrade), excellent electric properties, and feasibility are needed. In addition, there are some wire lines that comply with
the UL/CSA of overseas-standard products and the Electrical Safety Law.

Cable dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
0.50 20/0.18 0.95 0.78 2.51 40.1 305/1000
0.75 30/0.18 1.17 2.73 26.7
1.00 40/0.18 1.3 2.86 20
1.25 50/0.18 1.5 3.06 14.35
1.50 30/0.25 1.60 3.16 13.7
2.00 41/0.254 1.85 3.41 8.78
2.50 50/0.25 2.06 3.62 7.16
3.00 60/0.25 2.30 3.86 6.5
4.00 56/0.30 2.62 4.18 4.7


Certificate:
Heat Proof 200C 0.5sqmm UL3512 Flexible Insulated Wire 0

MYSUN factory:

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds of UL, cUL, CSA, VDE, CCC, RoHS, REACH certified high temperature wire and cable. For home appliances, lighting, medical equipment, office facilities, industrial machine and motors & generators. The company has consistently in accordance with the ISO9001, ISO14001 international standard and IATF16949 auto certification.

Heat Proof 200C 0.5sqmm UL3512 Flexible Insulated Wire 1



Mysun lab:

Good equipment lays a firm foundation for good products.Mysun has full set of test equipments, such as flame test chamber, aging
test machine, grinding test machine, abrasion resistance test machine, low temperature winding machine, air ventilation climatic
test chamber, high voltage tester, printing hardness fastness tester, projector, high temperature furnace and so on.

Heat Proof 200C 0.5sqmm UL3512 Flexible Insulated Wire 2


Price term:
EXW, FOB, CIF

Payment terms:
LC, TT, Western Union and PayPal

Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
