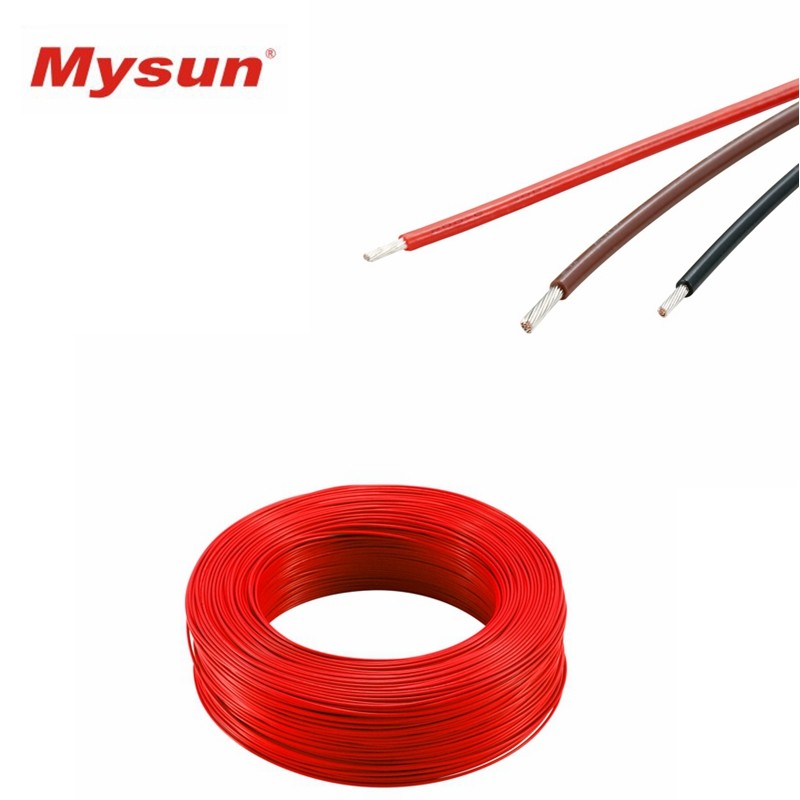

E239689 UL10362 Electrical Hookup Wire PFA Insulation Heating Resistance

  • E239689 UL10362 Electrical Hookup Wire PFA Insulation Heating Resistance
  • E239689 UL10362 Electrical Hookup Wire PFA Insulation Heating Resistance
Place of Origin GuangDong,China
Brand Name MYSUN
Certification UL
Model Number UL10362
Minimum Order Quantity 3050meter
Price USD+0.02-0.67+$
Packaging Details 100m/roll,305m/roll
Delivery Time 7-15days
Payment Terms T/T, Western Union, L/C
Supply Ability 850000+Meter+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name UL10362 PFA Insulation Heating Resistance Electric Wire Color All Colors
Conductor Nickel-plated Copper Insulation PFA
Rated Voltage 600V Rated Temperature 250C
Sample Conventional Sample Free Packing 100m/roll,305m/roll
Producing Experience 20 Years Delivery Time 7-15 Days
Highlight

flexible hook up wire

,

flexible electrical wire

,

UL10362 Hookup Wire
Leave a Message
Product Description

UL 10362 PFA Wire 250C Heat Resistant electric wire



Specifications:

Nominal voltage: 600V

Temperature range: 250C

Standard: UL 758

Conductor: Nickel-plated copper wire

Insulation:PFA



Lead Time :

Quantity(Meters) 1 - 6100 >6100
Est. Time(days) 7 To be negotiated



Conductor Insulation Max.cond Unit Length
resistance (m)(Ft)
Size Construction Diameter Nominal Thickness Diameter (Ω/km)
(AWG) (No./mm) (mm) (mm) (mm)
32 7/0.08 0.24 0.35 0.94 563 610/2000
30 7/0.10 0.30 0.35 1.00 361 610/2000
28 7/0.12 0.36 0.35 1.08 227 610/2000
26 7/0.16 0.48 0.35 1.18 143 610/2000
24 7/0.20 0.60 0.35 1.30 89.3 610/2000
22 19/0.15 0.75 0.35 1.45 56.4 305/1000
20 19/0.185 0.93 0.35 1.63 35.2 305/1000
18 19/0.235 1.17 0.35 1.87 22.2 305/1000
16 19/0.30 1.50 0.35 2.20 14 305/1000
14 19/0.37 1.85 0.35 2.55 8.78 305/1000
12 19/0.47 2.35 0.35 3.05 5.53 305/1000
10 37/0.43 3.00 0.35 3.70 3.476 305/1000
8 37/0.54 3.78 0.51 4.80 2.16 customized
7 37/0.60 4.20 0.51 5.22 1.716
6 37/0.68 4.76 0.51 5.78 1.361
5 37/0.76 5.32 0.80 6.92 1.079
4 37/0.86 6.02 0.80 7.62 0.8859
3 7/2.21 6.63 0.80 8.23 0.6788
2 7/2.48 7.44 0.80 9.04 0.5384
1 7/2.78 8.34 1.20 10.74 0.4268
0 7/3.20 9.60 1.20 12.00 0.3367
2/0 7/3.57 10.71 1.20 13.11 0.267
3/0 7/3.94 11.82 1.20 14.22 0.2119
4/0 7/4.42 13.26 1.20 15.66 0.168



E239689 UL10362 Electrical Hookup Wire PFA Insulation Heating Resistance 0E239689 UL10362 Electrical Hookup Wire PFA Insulation Heating Resistance 1E239689 UL10362 Electrical Hookup Wire PFA Insulation Heating Resistance 2E239689 UL10362 Electrical Hookup Wire PFA Insulation Heating Resistance 3E239689 UL10362 Electrical Hookup Wire PFA Insulation Heating Resistance 4E239689 UL10362 Electrical Hookup Wire PFA Insulation Heating Resistance 5E239689 UL10362 Electrical Hookup Wire PFA Insulation Heating Resistance 6E239689 UL10362 Electrical Hookup Wire PFA Insulation Heating Resistance 7



Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
