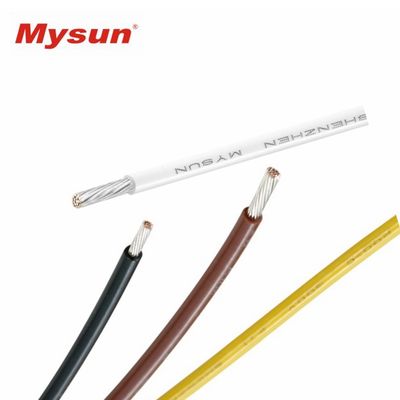

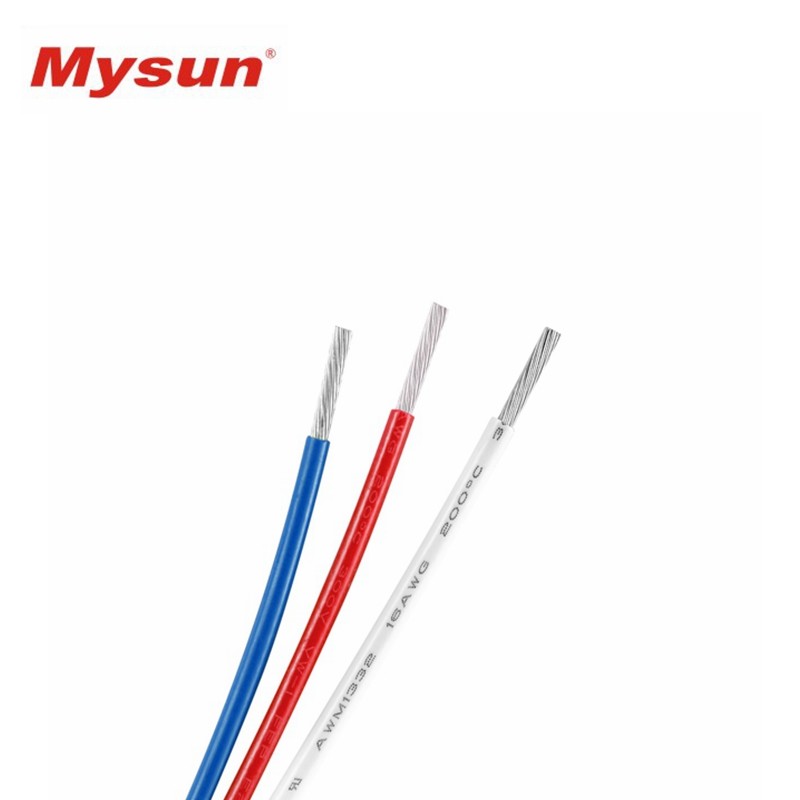

FEP Insulation Coated Wire , Insulated Wire Cable UL1330 30AWG 200C

Place of Origin GuangDong,China
Brand Name MYSUN
Certification UL
Model Number UL1180
Minimum Order Quantity 3050meter
Price USD+0.02-0.67+$
Packaging Details 100m/roll,305m/roll
Delivery Time 7-15days
Payment Terms T/T, Western Union, L/C
Supply Ability 850000+Meter+per month
Product Details
Product Name UL1330 30AWG FEP Insulation Wire Coated Wire Color All Colors
Conductor Nickel-plated Copper Insulation PTFE
Rated Voltage 600V Rated Temperature 200C
Sample Conventional Sample Free Packing 100m/roll,305m/roll
Producing Experience 20 Years Delivery Time 7-15 Days
High Light

flexible electrical wire

,

high temperature appliance wire

Leave a Message
Product Description

UL1330 insulation wire for electric heater



Specifications:

Nominal voltage: 600V

Temperature range: 200C

Standard: UL 758

Conductor: Nickel-plated copper wire

Insulation: PTFE



Lead Time :

Quantity(Meters) 1 - 6100 >6100
Est. Time(days) 7 To be negotiated



Product dimensions:

CONDUCTOR INSULATION MAX.COND RESISTANCE (Ω/KM) UNIT LENGTH (M)(FT)
SIZE (AWG) CONSTRUCTION (NO./mm) DIAMETER (mm) NOMINAL THICKNESS (mm) DIAMETER (mm)
30 1/0.26 0.26 0.305 0.87 361 610(2000)
7/0.10 0.30 0.305 0.91
28 1/0.32 0.32 0.305 0.93 227 610(2000)
7/0.12 0.36 0.305 0.97
26 7/0.16 0.48 0.305 1.09 143 610(2000)
19/0.10 0.48 0.305 1.11
24 1/0.50 0.50 0.305 1.11 89.3 610(2000)
7/0.20 0.60 0.305 1.21
19/0.12 0.60 0.305 1.21
22 1/0.65 0.65 0.33 1.31 56.4 305(1000)
7/0.254 0.76 0.33 1.42
19/0.15 0.75 0.33 1.41
20 1/0.81 0.81 0.33 1.47 35.2 305(1000)
7/0.31 0.93 0.33 1.59
19/0.19 0.93 0.33 1.59
18 1/1.02 1.02 0.33 1.68 22.2 305(1000)
7/0.39 1.17 0.33 1.83
19/0.235 1.17 0.33 1.83
16 1/1.30 1.30 0.33 1.96 14 305(1000)
7/0.49 1.47 0.33 2.13
19/0.30 1.50 0.33 2.16
14 19/0.37 1.85 0.33 2.51 8.78 305(1000)
12 19/0.47 2.35 0.33 3.01 5.53 305(1000)
10 19/0.61 3.05 0.33 4.71 3.476 305(1000)

QNH76117-b--20170321_01--20170321_08--20170321_02--20170321_03--20170321_04--20170321_05--20170321_06--20170321_012



Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
