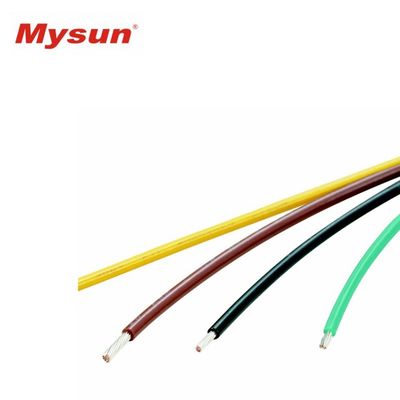

Nickel Plated Insulated Copper Wire PFA Insulation VDE 8298 For Headlamp

  • Nickel Plated Insulated Copper Wire PFA Insulation VDE 8298 For Headlamp
  • Nickel Plated Insulated Copper Wire PFA Insulation VDE 8298 For Headlamp
  • Nickel Plated Insulated Copper Wire PFA Insulation VDE 8298 For Headlamp
Place of Origin Guangdong
Brand Name Mysun
Certification UL/cUL/CCC/CE/RoHS/SGS
Model Number VDE8298
Minimum Order Quantity 3050/6100 meters
Price Negotiable
Packaging Details 305/610 Meters per Roll / 7 Rolls per Carton or can be customized
Delivery Time 7-10 Working Days
Payment Terms L/C, D/A, T/T, Western Union,Paypal,HSBC
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Insulated Wire Conductor Nickel-plated Copper Wire
OD 1.36-2.76mm Max.Cond Resistance 7.16-59.78 Ω/KM
Rated Voltage 450/750V Rated Temperature 250℃
Standard VDE 0250 Flammability Rating VW-1/FT-1/ -LF-/-HF-
Color 8 Colors / Can Be Customized Application Home Appliance,industrial Machines And Others
Package 305/610 Meters Per Roll Original Of Place China
Insulation PFA
High Light

insulated hookup wire

,

coated electrical wire
Leave a Message
Product Description

insulated wire



Specifications:

Nominal voltage:450/750V

Temperature range: 250℃

Standard: VDE0250

Insulation: PFA

Conductor: Nickel-plated copper wire



Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.



Product dimensions:



Conductor Insulation Max.cond
resistance
(Ω/km)		 Unit Length
(m)(Ft)
Section (mm²) Construction
(No./mm)		 Diameter
(mm)		 Inside thickness(mm) Diameter
(mm)
0.34 19/0.15 0.75 0.305 1.36 59.78 610/2000
0.50 19/0.19 0.95 0.305 1.56 40.1 305/1000
0.75 19/0.23 1.17 0.305 1.78 26.7 305/1000
1.00 19/0.26 1.31 0.305 1.91 20 305/1000
1.25 19/0.29 1.46 0.350 2.16 14.35 305/1000
1.50 19/0.32 1.61 0.350 2.31 13.7 305/1000
2.00 19/0.37 1.85 0.350 2.55 8.78 305/1000
2.50 19/0.41 2.06 0.350 2.76 7.16 305/1000


Marking: VDE-Reg.-Nr.8298  1*0.75mm² PFA 250°c 450V/750V SHENZHEN MYSUN



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Product shoot:

Nickel Plated Insulated Copper Wire PFA Insulation VDE 8298 For Headlamp 0Nickel Plated Insulated Copper Wire PFA Insulation VDE 8298 For Headlamp 1





Nickel Plated Insulated Copper Wire PFA Insulation VDE 8298 For Headlamp 2





Nickel Plated Insulated Copper Wire PFA Insulation VDE 8298 For Headlamp 3


Shipment:
1. by express
2. by sea

If you have your own shipper,you can tell me in advance.

My targert is to give my best serivce for you and hope we can have a good cooperation!


Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days





FAQ:



1, What’s the MOQ?

One roll. 100M/200M/300M/305M/500M/Roll.



2, How to get the samples?

We have most of the commonly used samples in Stock.

We can offer the free samples immediately.



3, What’s the payment terms?

LC, TT, Western Union, Money Gram and PayPal



4, What’s the delivery date?

Most of the commonly used products are in Stock. We can arrange it within one day.

We will arrange the delivery date as your requirement while the Bulk Production.



5, How to visit your factory/company?

We are located in Shenzhen City, Guangdong Province, closed to Guangzhou, Dongguan and Hong Kong. Only one and a half hours drive away. Convenient for visit.
