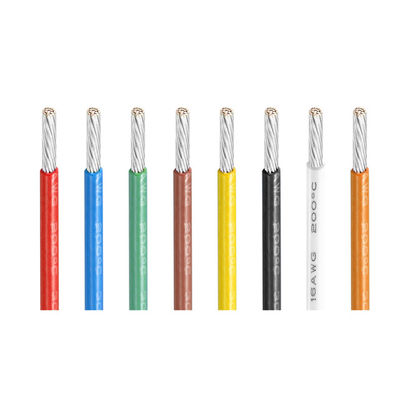

High Temperature PFA Insulated Wire 26 AWG UL1859 Reel Packing

Place of Origin China
Brand Name MYSUN
Certification UL
Model Number UL1859
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m/roll
Payment Terms T/T
Supply Ability 50,000m/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 600V Rated Temperature 150℃
Insulation PFA Conductor Tinned Copper
Standard UL758 Color All Colors Are Available
Appliance Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products. Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008
Packing Reel Name Wire
Size 4/0-32AWG Name Auto Motive Wire
High Light

coated electrical wire

,

insulated cable

Leave a Message
Product Description

insulated wire UL1859



Specifications:

Nominal voltage: 600V

Temperature range:150C

Standard: UL 758

Insulation: PFA

Conductor: tinned copper wire



Product dimensions:



Conductor Insulation Max.cond
resistance
(Ω/km)
Unit Length
(m)(Ft)
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
32 7/0.08 0.24 0.51 1.26 563 610/2000
30 7/0.10 0.30 0.51 1.32 361 610/2000
28 7/0.12 0.36 0.51 1.38 227 610/2000
26 7/0.16 0.48 0.51 1.50 143 610/2000
24 7/0.20 0.60 0.51 1.62 89.3 610/2000
22 19/0.15 0.75 0.51 1.77 56.4 305/1000
20 19/0.185 0.93 0.51 1.95 35.2 305/1000
18 19/0.235 1.17 0.51 2.19 22.2 305/1000
16 19/0.30 1.50 0.51 2.52 14 305/1000
14 19/0.37 1.85 0.51 2.87 8.78 305/1000
12 19/0.47 2.35 0.51 2.37 5.53 305/1000
10 37/0.43 3.00 0.51 4.02 3.476 305/1000
8 37/0.54 3.78 0.80 5.38 2.16 customized
7 37/0.60 4.20 0.80 5.80 1.716
6 37/0.68 4.76 0.80 6.36 1.361
5 37/0.76 5.32 0.80 6.92 1.079
4 37/0.86 6.02 0.80 7.62 0.8859
3 7/2.21 6.63 0.80 8.23 0.6788
2 7/2.48 7.44 0.80 9.04 0.5384
1 7/2.78 8.34 1.20 10.74 0.4268
0 7/3.20 9.60 1.20 12.00 0.3367
2/0 7/3.57 10.71 1.20 13.11 0.267
3/0 7/3.94 11.82 1.20 14.22 0.2119
4/0 7/4.42 13.26 1.20 15.66 0.168



advantage of our wire:

  1. It is resistant to soldering. It remains unaffected in such circumstances.
  2. It does not absorb moisture. Hence, it can be used in damp environments.
  3. They exhibit low dielectric constant and high dielectric strength. This makes the material chemically inert.
  4. It is extremely strong with high impact strength. Despite the high levels of strength, this material is flexible.
  5. It has high heat capacity making it resistant to thermal aging. It can withstand temperatures as high as 260 oC ( oF)
  6. It is inflammable (flame resistant). It is not only be used in high temperature applications but also around applications where fire is used.
  7. It is corrosion resistant. Hence, it can be used in environments where other materials will be easily corroded.
  8. The coefficient of friction of the material is also extremely low. It can therefore be used in conjunction with bearings, and other equipment that can cause friction.
  9. It is abrasion resistant making it extremely useful in outdoor applications, or those using abrasive chemicals and media.
