insulated ptfe coated wire UL1570 nickel plated and silver plated copper

  • insulated ptfe coated wire UL1570 nickel plated and silver plated copper
  • insulated ptfe coated wire UL1570 nickel plated and silver plated copper
  • insulated ptfe coated wire UL1570 nickel plated and silver plated copper
  • insulated ptfe coated wire UL1570 nickel plated and silver plated copper
Place of Origin CHINA
Brand Name MYSUN
Certification UL
Model Number UL1570
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details carton, pallet
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 0.5 million meters each day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation PTFE Conductor Nickel Plated Or Silver Plated
Size 30AWG-10AWG Color Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink, Transparent
Rated Voltage 600V Working Temp 250C
Use In Lighting, Home Appliance, Industry And So On SPQ 305m/roll, 610m/roll
Package Reel, Carton, Pallet Flame Retardant VW-1
Highlight

insulated hookup wire

,

coated electrical wire
Leave a Message
Product Description

insulated ptfe coated wire UL1570 nickel plated and silver plated copper



Specification:

Rated voltage: 600V

Rated temperature: 250C

UL standard: UL758,

Applications: this wire widely sued for motor. lighting, sensor and home appliance.



Cable dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
24 7/0.20 0.60 0.51 1.62 89.3 610/2000
22 19/0.15 0.75 1.77 56.4 305/1000
20 19/0.185 0.93 1.95 35.2
18 19/0.235 1.17 2.19 22.2
16 19/0.30 1.50 2.52 14
14 19/0.37 1.85 2.87 8.78
12 19/0.47 2.35 2.37 5.53
10 37/0.43 3.00 0.80 4.02 3.476
8 37/0.54 3.78 5.38 2.16 customized
7 37/0.60 4.20 5.80 1.716
6 37/0.68 4.76 6.36 1.361



Cable details:

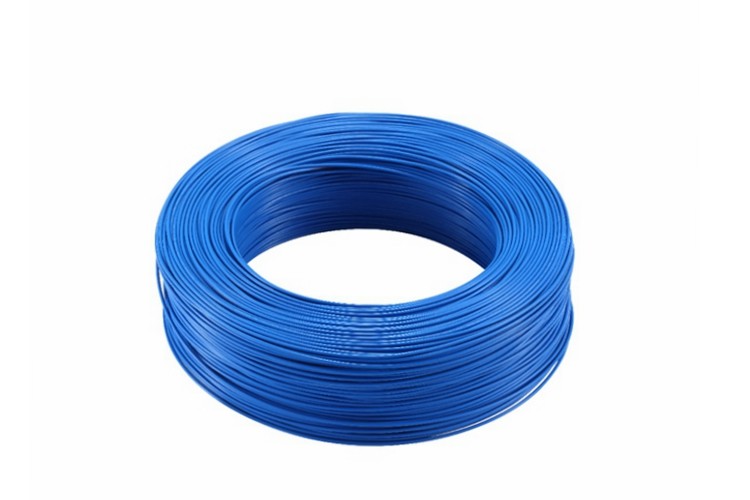

insulated ptfe coated wire UL1570 nickel plated and silver plated copper 0

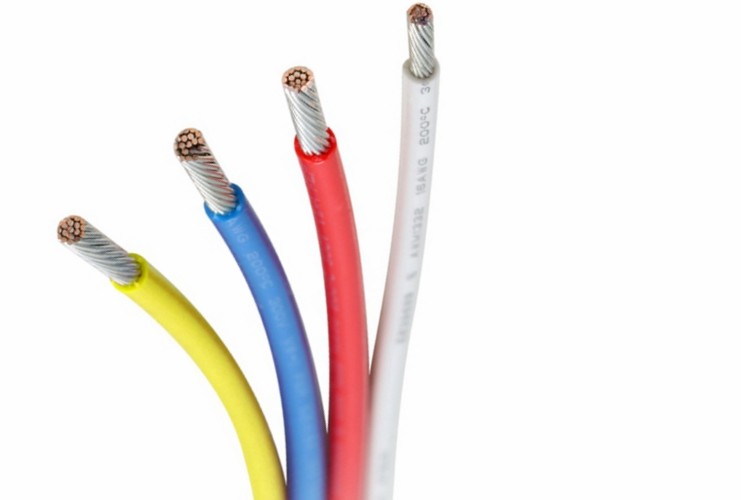

insulated ptfe coated wire UL1570 nickel plated and silver plated copper 1

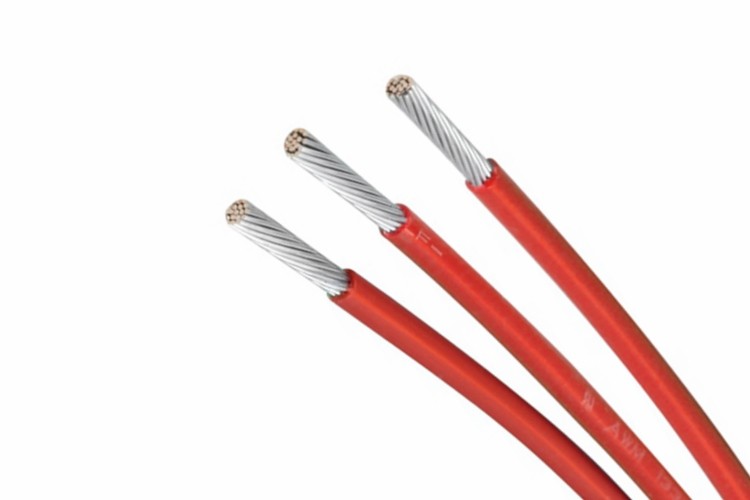

insulated ptfe coated wire UL1570 nickel plated and silver plated copper 2

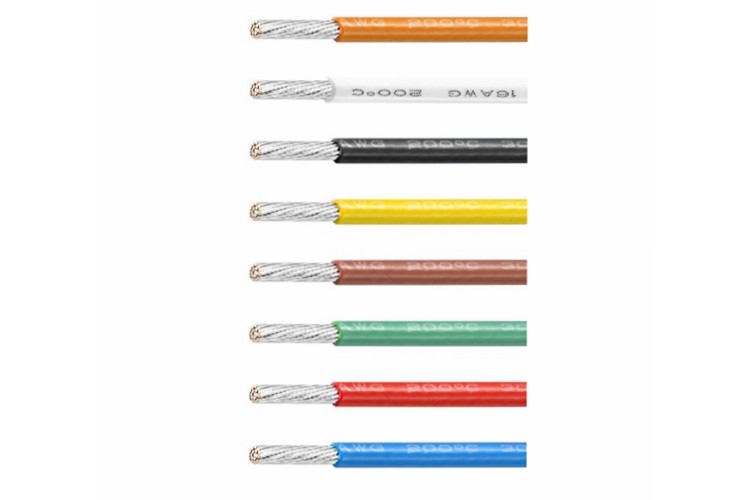

insulated ptfe coated wire UL1570 nickel plated and silver plated copper 3

insulated ptfe coated wire UL1570 nickel plated and silver plated copper 4



Price term:
EXW, FOB, CIF



Payment terms:
LC, TT, Western Union and PayPal



Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
