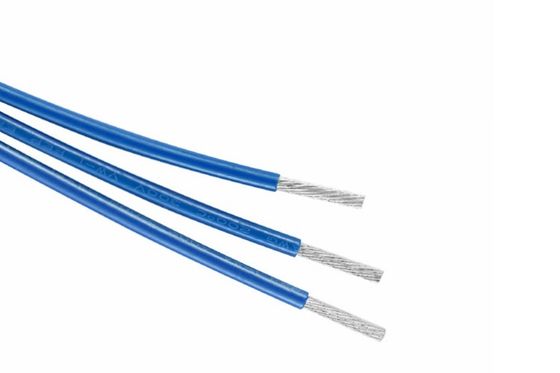

UL Listing 24 AWG Wire , FEP Coated Hook Up Wire 300V 150C

  • UL Listing 24 AWG Wire , FEP Coated Hook Up Wire 300V 150C
  • UL Listing 24 AWG Wire , FEP Coated Hook Up Wire 300V 150C
  • UL Listing 24 AWG Wire , FEP Coated Hook Up Wire 300V 150C
  • UL Listing 24 AWG Wire , FEP Coated Hook Up Wire 300V 150C
Place of Origin CHINA
Brand Name MYSUN
Certification UL, CSA
Model Number UL1333
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details carton, pallet
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 0.6 million meters each day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation FEP Conductor Tinned Copper
Size 30AWG-10AWG Color Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink, Transparent
Rated Voltage 300V Working Temp 150C
Use In Lighting, Home Appliance, Industry And So On SPQ 305m/roll, 610m/roll
Package Reel, Carton, Pallet Flame Retardant VW-1
High Light

insulated hookup wire

,

insulated cable
Leave a Message
Product Description

24AWG FEP costed hook-up wire UL1333 insulated wire 300V 150C



Specification:

Rated voltage: 300V

Rated temperature: 150C

UL standard: UL758, CSA

Applications: this wire is widely used in household appliances, lighting, electrical appliances,

instrumentation, industrial equipment and other high temperature environment. Among them,

household appliances can be used for air conditioning, microwave ovens, electronic disinfection cabinet,
rice cookers, electronic thermos, electric heaters, electric ovens, electric wok and
other internal wiring. The wires have excellent resistance to heat, acid and moisture.



Insulation Material Features:

material is characterized by high temperature and flame retardant, but also has

excellent corrosion resistance, strong acid and alkali; with excellent electrical insulation properties.

Fluorine plastic is also a major feature of high temperature resistance, high pressure resistance,

less high frequency loss, insulation resistance, aging resistance, long service life.



Cable dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
30 1/0.26 0.26 0.305 0.87 361 610/2000
7/0.10 0.3 0.91
28 1/0.32 0.32 0.305 0.93 227 610/2000
7/0.12 0.36 0.97
26 7/0.16 0.48 0.305 1.09 143 610/2000
19/0.10 0.48 1.11
24 1/0.50 0.5 0.305 1.11 89.3 610/2000
7/0.20 0.6 1.21
19/0.12 0.6 1.21
22 1/0.65 0.65 0.33 1.31 56.4 305/1000
7/0.254 0.76 1.42
19/0.15 0.75 1.41
20 1/0.81 0.81 0.33 1.47 35.2 305/1000
7/0.31 0.96 1.59
19/0.19 0.93 1.59
18 1/1.12 1.02 0.33 1.68 22.2 305/1000
7/0.39 1.17 1.83
19/0.235 1.17 1.83
16 1/1.30 1.3 0.33 1.96 14 305/1000
7/0.49 1.47 2.13
19/0.30 1.5 2.16
14 1/0.81 1.85 0.33 2.51 8.78 305/1000
12 7/0.31 2.35 0.33 3.01 5.53 305/1000
10 19/0.19 3.05 0.33 3.71 3.476 305/1000



Cable details:

UL Listing 24 AWG Wire , FEP Coated Hook Up Wire 300V 150C 0

UL Listing 24 AWG Wire , FEP Coated Hook Up Wire 300V 150C 1
UL Listing 24 AWG Wire , FEP Coated Hook Up Wire 300V 150C 2

UL Listing 24 AWG Wire , FEP Coated Hook Up Wire 300V 150C 3



Price term:
EXW, FOB, CIF



Payment terms:
LC, TT, Western Union and PayPal



Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
