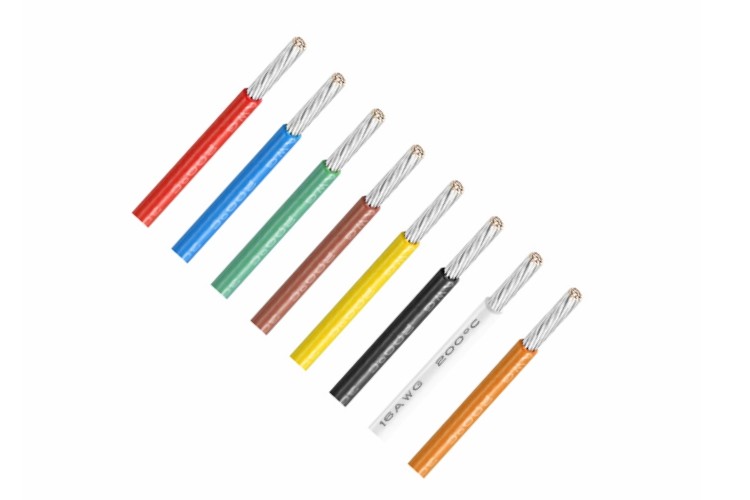

250C 0.5mm VDE8298 Insulated Wire ROHS REACH certificate heating wire

  • 250C 0.5mm VDE8298 Insulated Wire ROHS REACH certificate heating wire
  • 250C 0.5mm VDE8298 Insulated Wire ROHS REACH certificate heating wire
  • 250C 0.5mm VDE8298 Insulated Wire ROHS REACH certificate heating wire
Place of Origin China
Brand Name MYSUN
Certification VDE
Model Number VDE8298
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m/roll
Payment Terms T/T
Supply Ability 50,000m/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 450V/750V Rated Temperature 250℃
Insulation PFA Conductor Nickel-plated Copper Wire
Standard VDE 0250 Color All Colors Are Available
Appliance Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products. Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008
Packing Reel Name High Temperature Wire
Size 0.34-2.5mm Name Wire
Usage Lead Wire, Hook Up Wire, Heating Wire
Highlight

insulated hookup wire

,

insulated cable
Leave a Message
Product Description

insulated wire VDE 8298



Specifications:

Nominal voltage:450V/750V

Temperature range:250C

Standard: VDE 0250

Insulation: PFA

Conductor: nickel-plated copper wire

appliance:home appliance, headlamp, industrial machine, electro thermal products.

color:all colors are available



Product dimensions:



Conductor Insulation Max.cond
resistance
(Ω/km)		 Unit Length
(m)(Ft)
Section
(mm²)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)
0.34 19/0.15 0.75 0.305 1.36 59.78 610/2000
0.50 19/0.19 0.95 1.56 40.1 305/1000
0.75 19/0.23 1.17 1.78 26.7
1.00 19/0.26 1.31 1.91 20
1.25 19/0.29 1.46 0.35 2.16 14.35
1.50 19/0.32 1.61 2.31 13.7
2.00 19/0.37 1.85 2.55 8.78
2.50 19/0.41 2.06 2.76 7.16



advantage of our wire:

It is resistant to soldering. It remains unaffected in such circumstances.

It does not absorb moisture. Hence, it can be used in damp environments.

They exhibit low dielectric constant and high dielectric strength. This makes the material chemically inert.

It is extremely strong with high impact strength. Despite the high levels of strength, this material is flexible.

It has high heat capacity making it resistant to thermal aging. It can withstand temperatures as high as 260 ºC ( ºF)

It is inflammable (flame resistant). It is not only be used in high temperature applications but also around applications where fire is used.

It is corrosion resistant. Hence, it can be used in environments where other materials will be easily corroded.

The coefficient of friction of the material is also extremely low. It can therefore be used in conjunction with bearings, and other equipment that can cause friction.

It is abrasion resistant making it extremely useful in outdoor applications, or those using abrasive chemicals and media.









Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
