Contact Person : Peter Sun
Phone Number : 0086-13823381460

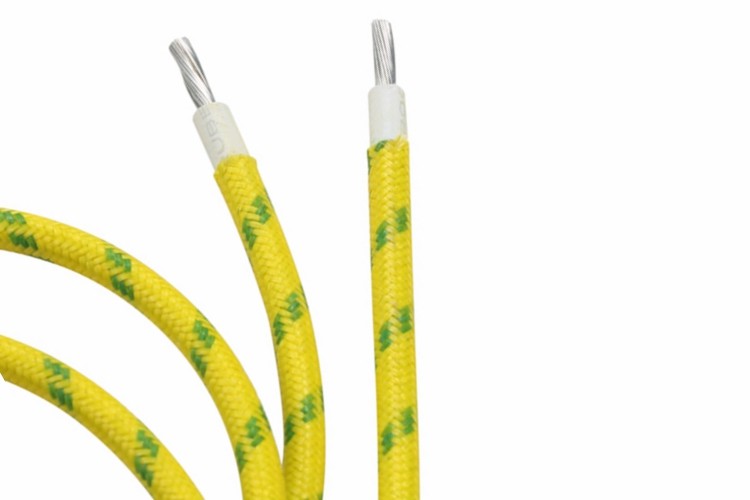

3.0mm Fiberglass Insulated Copper Wire 180C For Coffee Maker Halogen Free

Place of Origin CHINA
Brand Name MYSUN
Certification CCC
Model Number CCC silicone wire
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m per roll
Payment Terms T/T
Supply Ability 500,000m per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 300V/500V Temperature 180C
Insulation Fiberglass Conductor Tinned Copper/bare Copper
Color All Colors Are Available Standard GB5013.3-2008
Appliance Home Application,LED Lamp, Oven,industrial Machine Size 0.5-4.0mm
Name High Temperature Cable Certification CCC CE ROHS ISO
High Light

fibreglass insulated cable

,

high temperature stranded wire

Leave a Message
Product Description

CCC Fiberglass Insulated Copper Wire



Specifications:

Nominal voltage: 300V/500V

Temperature range: 180C

Standard: UL 758

Conductor: tinned copper

Insulation: Silicone Rubber

Insulation: Fiber Glass

appliance: They are widely used for home appliance, headlamp,industrial machine, electro thermal products and etc.



It has good capacities of flexibility, high temperature resistant, high volatege resistant, halogen free, fire resistant etc. It is widely used in industrial area like metallurgy, chemical engineering, oil field etc.



Product dimensions:



CONDUCTOR INSULATION

MAX.COND RESISTANCE

(Ω/KM)

UNIT LENGTH(M)(Ft)

SECTION

(mm)

CONSTRUCTION (NO./mm) DIAMETER (mm) NOMINAL THICKNESS (mm)

DIAMETER

(mm)

0.50 20/0.18 0.92 0.85 2.62 40.1 305(1000)
0.75 30/0.18 1.15 0.85 2.85 26.7 305(1000)
1.00 40/0.18 1.33 0.80 2.93 20 305(1000)
1.25 50/0.18 1.46 0.85 3.16 14.35 305(1000)
1.50 30/0.25 1.61 0.90 3.41 13.7 305(1000)
2.00 41/0.25 1.89 0.95 3.79 8.78 200(656)
2.50 50/0.25 2.06 1.00 4.06 7.16 200(656)
3.00 60/0.25 2.29 1.00 4.29 6.5 200(656)
3.50 70/0.25 2.47 1.00 4.47 5.119 100(328)
4.00 56/0.305 2.65 1.05 4.75 4.7 100(328)





Insulated wires are always a special area of interest for manufacturers, businesses, and residential users. Many types of insulated wires are available in the market. Some of the well-known choices are PVC insulated wires, cross-linked wires, silicone rubber insulated wire etc. Silicone insulated wires are gaining popularity due to their performance-oriented designs, and reliable mechanical properties. This post concentrates on their advantages, and some of the popular applications.




















FAQ​

How can I get samples?

Please tell us the detailed information of products you need. Then we will check our stock.We can offer the free samples immediately. If we don't have the exact model you need, Maybe we will send you similar sample if you accept.f you couldn’t accept,it will take us 3-5days to get the sample done.





What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.Usually, delivering time is 7-10days, Generally speaking, we suggest that you start inquiry one months before the date you would like to get the products at your country.


What is your terms of delivery?
We usually accept FOB, CFR, CIF etc. You can choose the one which is the most convenient or cost effective for you.



Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
