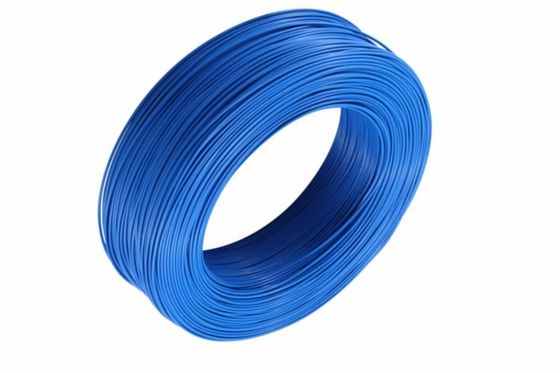

18 AWG High Temp Silicone Rubber Insulated Wire For Electrical Appliance UL 3367

  • 18 AWG High Temp Silicone Rubber Insulated Wire For Electrical Appliance UL 3367
  • 18 AWG High Temp Silicone Rubber Insulated Wire For Electrical Appliance UL 3367
  • 18 AWG High Temp Silicone Rubber Insulated Wire For Electrical Appliance UL 3367
Place of Origin China
Brand Name MYSUN
Certification UL
Model Number UL 3350
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m/roll
Payment Terms T/T
Supply Ability 50,000m/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 300V Rated Temperature 200℃
Conductor Tinned Copper Insulation Silicone Rubber
Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 Application Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products.
Color Customized Name Lead Wire, Hook Up Wire, Power Cable
Flame Resistance FT-2
High Light

silicone rubber insulated cable

,

high temperature heater wire
Leave a Message
Product Description

flexible UL 3367 Silicone Rubber Insulated Wire



specifications



Retad voltage 300V
Retad temperature 200°C
Insulation silicone rubber
Conductor Tinned copper
Standards UL 758
Application home appliances/ leds/industrial machine
M/FT 305/1000
Color white,black,red,brown,yellow,blue,green,transparent etc.



product dimensions



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.45 1.38 143 305/1000
24 7/0.20 0.6 0.45 1.5 89.3 305/1000
22 7/0.254 0.76 0.45 1.66 56.4 305/1000
20 7/0.31 0.94 0.45 1.83 35.2 305/1000
18 7/0.39 1.17 0.45 2.07 22.2 305/1000
16 7/0.49 1.47 0.45 2.37 14 305/1000
14 41/0.254 1.89 0.45 2.77 8.78 305/1000
12 19/0.47 2.36 0.45 3.26 5.53 305/1000
10 19/0.61 3.05 0.45 3.95 3.48 305/1000



Advantages of Silicone Insulated Wires
Following are some of the advantages of using silicone insulated wires for your application.

1.Excellent Performance in Adverse Environments:
These wires provide optimum performance in adverse environments.
They can withstand snow, humidity, ozone, rains, and harsh UV rays for years without disintegrating.

2.Wide Operating Temperature Ranges:
The wires can withstand a wide temperature range from –50 to +200 °C.
Also, advanced grades can withstand a temperature range from –90 to +300 °C.

3.Ideal for Daily Use:
These wires can easily withstand daily wear and tear as well as aging.


18 AWG High Temp Silicone Rubber Insulated Wire For Electrical Appliance UL 3367 0

18 AWG High Temp Silicone Rubber Insulated Wire For Electrical Appliance UL 3367 1

Service:
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

FAQ


Is the quality of your products guaranteed?

A:Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment,

and our workers are highly experienced . We strictly follow the international standards and customers' requirements.



How can I get samples?

Please tell us the detailed information of products you need. Then we will check our stock.We can offer the free samples immediately. If we don't have the exact model you need, Maybe we will send you similar sample if you accept.f you couldn’t accept,it will take us 3-5days to get the sample done.



What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.Usually, delivering time is 7-10days, Generally speaking, we suggest that you start inquiry one months before the date you would like to get the products at your country.


What is your terms of delivery?
We usually accept FOB, CFR, CIF etc. You can choose the one which is the most convenient or cost effective for you.
