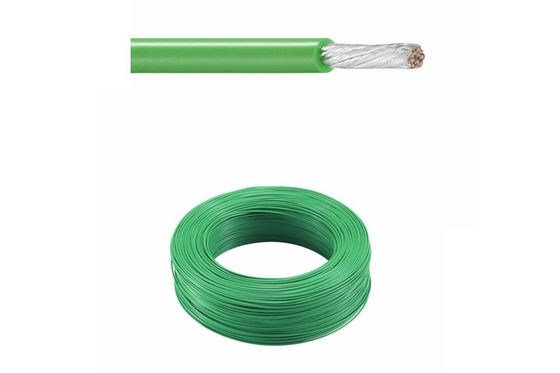

High working temperature silicone rubber insulated wire UL3253 250C

  • High working temperature silicone rubber insulated wire UL3253 250C
  • High working temperature silicone rubber insulated wire UL3253 250C
  • High working temperature silicone rubber insulated wire UL3253 250C
  • High working temperature silicone rubber insulated wire UL3253 250C
Place of Origin CHINA
Brand Name MYSUN
Certification UL
Model Number UL3253
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details carton, pallet
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability one million meters each day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation Silicone Rubber Conductor Nickel Plated Copper
Size 30-12AWG Color Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink
Rated Voltage 300V Working Temp 250C
Use In Coffee Maker, Oven And Other Home Appliance SPQ 610m/roll, 305m/roll
Package Reel, Carton, Pallet
High Light

heat resistant electrical cable

,

high temperature heater wire
Leave a Message
Product Description

High working temperature silicone rubber insulated wire UL3253 250C

Specification:
Rated voltage: 300V
Rated temperature: 250C
UL standard: UL758
Applications: this wire widely sued for home appliance, headlamp, industrial machine and etc.

Cable dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
30 7/0.1 0.3 0.78 1.9 361 610/2000
28 7/0.127 0.36 0.78 1.96 227 610/2000
26 7/0.16 0.48 0.78 2.08 143 305/1000
24 7/0.20 0.6 0.78 2.2 89.3 305/1000
22 7/0.254 0.76 0.78 2.36 56.4 305/1000
20 7/0.31 0.94 0.78 2.53 35.2 305/1000
18 7/0.39 1.17 0.78 2.77 22.2 305/1000
16 7/0.49 1.47 0.78 3.07 14 305/1000
14 41/0.254 1.89 0.78 3.49 8.78 200/656
12 19/0.47 2.36 0.78 3.96 5.53 200/656


Cable details:
High working temperature silicone rubber insulated wire UL3253 250C 0

High working temperature silicone rubber insulated wire UL3253 250C 1

High working temperature silicone rubber insulated wire UL3253 250C 2

High working temperature silicone rubber insulated wire UL3253 250C 3

High working temperature silicone rubber insulated wire UL3253 250C 4

High working temperature silicone rubber insulated wire UL3253 250C 5

Price term:
EXW, FOB, CIF

Payment terms:
LC, TT, Western Union and PayPal

Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
