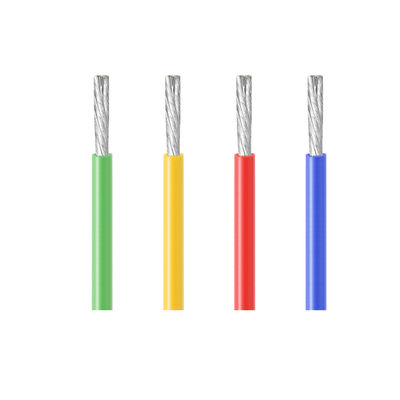

Heat Proof Soft Silicone Insulated Wire 300V 150C Tinned Copper Conductor UL3140

  • Heat Proof Soft Silicone Insulated Wire 300V 150C Tinned Copper Conductor UL3140
  • Heat Proof Soft Silicone Insulated Wire 300V 150C Tinned Copper Conductor UL3140
  • Heat Proof Soft Silicone Insulated Wire 300V 150C Tinned Copper Conductor UL3140
  • Heat Proof Soft Silicone Insulated Wire 300V 150C Tinned Copper Conductor UL3140
Place of Origin CHINA
Brand Name MYSUN
Certification UL, CSA
Model Number UL3140
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details carton, pallet
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability one million meters each day
Product Details
Name Heat Proof Silicone Insulated Wire Conductor Tinned Copper
Size 26-20AWG Color Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink
Rated Voltage 300V Working Temp 150C
Use In Coffee Maker, Oven And Other Home Appliance SPQ 305m/roll, 610m/roll
Package Reel, Carton, Pallet
Highlight

silicone hook up wire

,

silicone copper wire
Leave a Message
Product Description

Silicone insulated wire 300V 150C tinned copper conductor UL3140



Specification:

Rated voltage: 600V

Rated temperature: 150C

UL standard: UL758

Applications: this wire widely sued for home appliance, headlamp, industrial machine and etc.



Cable dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 1/0.4 0.4 1.6 3.6 143 305/1000
24 1/0.5 0.5 1.6 3.7 89.3 305/1000
22 1/0.65 0.65 1.6 3.85 56.4 305/1000
20 1/0.81 0.81 1.6 4.01 35.2 305/1000




Cable details:

Heat Proof Soft Silicone Insulated Wire 300V 150C Tinned Copper Conductor UL3140 0

Heat Proof Soft Silicone Insulated Wire 300V 150C Tinned Copper Conductor UL3140 1

Heat Proof Soft Silicone Insulated Wire 300V 150C Tinned Copper Conductor UL3140 2

Heat Proof Soft Silicone Insulated Wire 300V 150C Tinned Copper Conductor UL3140 3



Price term:
EXW, FOB, CIF



Payment terms:
LC, TT, Western Union and PayPal



Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
