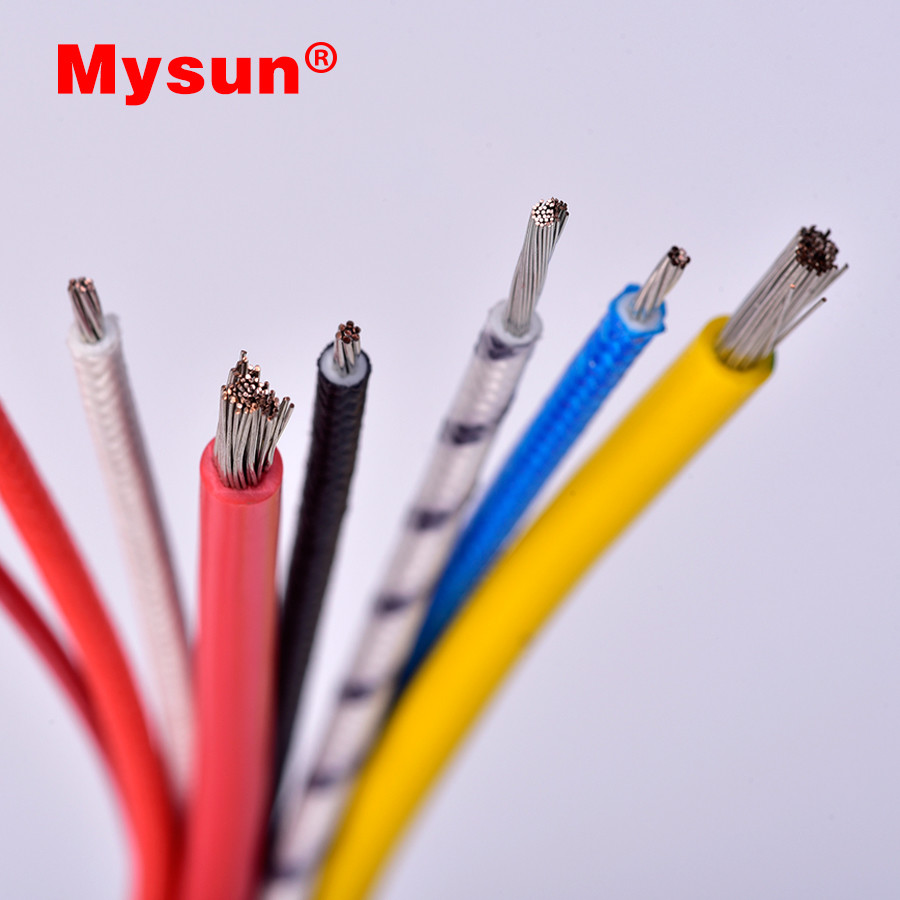

Mildew Proof 12 AWG Silicone Rubber Insulated Wire High Temperature Cable UL3253

  • Mildew Proof 12 AWG Silicone Rubber Insulated Wire High Temperature Cable UL3253
  • Mildew Proof 12 AWG Silicone Rubber Insulated Wire High Temperature Cable UL3253
  • Mildew Proof 12 AWG Silicone Rubber Insulated Wire High Temperature Cable UL3253
  • Mildew Proof 12 AWG Silicone Rubber Insulated Wire High Temperature Cable UL3253
Place of Origin China
Brand Name MYSUN
Certification UL
Model Number UL3253
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m/roll
Payment Terms T/T
Supply Ability 50,000m/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 300V Rated Temperature 250℃
Conductor Nickel-plated Copper Wire Insulation Silicone Rubber
Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 Application Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products.
Color Customized Size 12-30awg
Name High Temperature Cable
Highlight

heat resistant electrical cable

,

high temperature heater wire
Leave a Message
Product Description

high temperature UL 3253 Silicone Rubber Insulated Wire



specifications



Retad voltage 300V
Retad temperature 250°C
Insulation silicone rubber
Conductor nickel-plated copper wire
Standards UL 758
Application home appliances/ leds/industrial machine
M/FT 305/1000
SIZE 12-30awg
Color white,black,red,brown,yellow,blue,green,transparent etc.



product dimensions

CONDUCTOR INSULATION MAX.COND RESISTANCE (Ω/KM) UNIT LENGTH (M)(FT)
SIZE (AWG) CONSTRUCTION (NO./mm) DIAMETER (mm) NOMINAL THICKNESS (mm) DIAMETER (mm)
30 7/0.10 0.3 0.78 1.86 361 610(2000)
28 7/0.12 0.36 0.78 1.92 227 610(2000)
26 7/0.16 0.48 0.78 2.04 143 305(1000)
24 7/0.20 0.6 0.78 2.16 89.3 305(1000)
22 7/0.25 0.76 0.78 2.32 56.4 305(1000)
20 7/0.31 0.93 0.78 2.49 35.2 305(1000)
18 7/0.39 1.17 0.78 2.73 22.2 305(1000)
16 7/0.49 1.47 0.78 3.03 14 305(1000)
14 41/0.254 1.89 0.78 3.45 8.78 305(1000)
12 19/0.47 2.36 0.78 3.92 5.53 305(1000)



Application Benefits of Silicone Rubber Insulated Wire

Extreme applications can benefit by utilizing these types of wires.

  • The material has good insulating qualities, which does not change to a great extent when subjected to environmental stress.
  • They are nearly unaffected by extreme weather changes such as harsh sunlight and extreme cold.
  • The wires are extremely flexible, and provide a certain amount of resilience to compression in an application.
  • silicone rubber insulated wire have a long service life, and can be used in multiple applications.



Industrial Applications of Silicone Rubber Wire

The ease of manufacturing and shaping allows these wires to be used in a wide variety of applications and industries, including:

  • Automotive components
  • Industrial electronic products
  • Medical devices and implants
  • Food and beverage industry

Silicone rubber insulated wires are the perfect solution to protect wires and provide inimitable wire performance in extreme applications.



Why choose us
1. Full experience of 20 years in manufacturing electric cables/wires
2. ISO9001:2008 member
3. Strong R&D Team to design and test products
4. Strict quality control process with strict standards
5. Over 200 certifications for our products including UL, RoHS, CUL, CSA, VDE,CCC, SGS,etc
6. Free samples
7. Several different payment methods,like T/T,L/C,Western Union,Paypal
8. Delivery in one week for your goods
9. Quick after-sale technical advice and guidance





Mildew Proof 12 AWG Silicone Rubber Insulated Wire High Temperature Cable UL3253 0Mildew Proof 12 AWG Silicone Rubber Insulated Wire High Temperature Cable UL3253 1

Mildew Proof 12 AWG Silicone Rubber Insulated Wire High Temperature Cable UL3253 2
