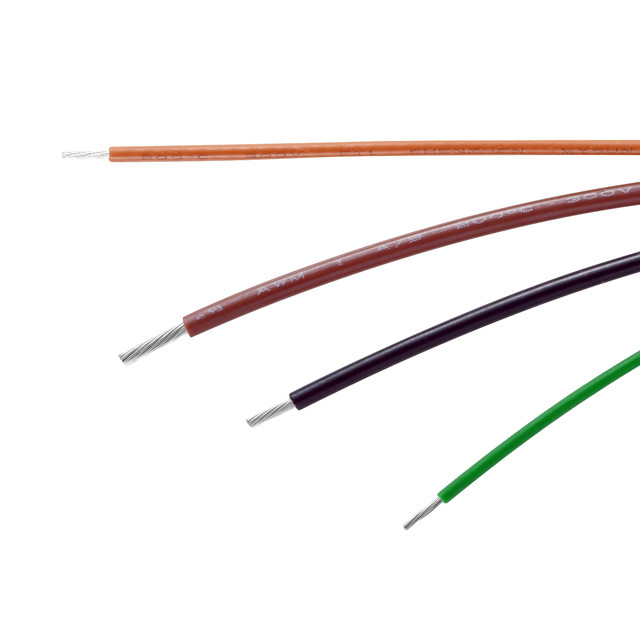

22WAG UL1858 PFA High Temperature Insulated Wire 150 Degree

  • 22WAG UL1858 PFA High Temperature Insulated Wire 150 Degree
  • 22WAG UL1858 PFA High Temperature Insulated Wire 150 Degree
  • 22WAG UL1858 PFA High Temperature Insulated Wire 150 Degree
  • 22WAG UL1858 PFA High Temperature Insulated Wire 150 Degree
Place of Origin China
Brand Name MYSUN
Certification UL
Model Number UL1858
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m/roll
Payment Terms T/T
Supply Ability 50,000m/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 300V Rated Temperature 150℃
Insulation PFA Conductor Tinned Copper
Standard UL758 Color All Colors Are Available
Appliance Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products. Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008
Packing Reel Name Wire
Size 10-32AWG Flame Test VW-1
Name Lead Wire, Hook Up Wire
High Light

coated electrical wire

,

insulated cable
Leave a Message
Product Description

insulated wire UL1858



Specifications:

Nominal voltage: 300V

Temperature range:150C

Standard: UL 758

Insulation: PFA

Conductor: tinned copper wire



Product dimensions:



Conductor Insulation Max.cond
resistance
(Ω/km)		 Unit Length
(m)(Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)
32 7/0.08 0.24 0.35 0.94 563 610/2000
30 7/0.10 0.30 1.00 361 610/2000
28 7/0.12 0.36 1.06 227 610/2000
26 7/0.16 0.48 1.18 143 610/2000
24 7/0.20 0.60 1.30 89.3 610/2000
22 19/0.15 0.75 1.45 56.4 305/1000
20 19/0.185 0.93 1.63 35.2 305/1000
18 19/0.235 1.17 1.85 22.2 305/1000
16 19/0.30 1.50 2.20 14 305/1000
14 19/0.37 1.85 2.55 8.78 305/1000
12 19/0.47 2.35 3.05 5.53 305/1000
10 37/0.43 3.00 3.70 3.476 305/1000



features of PFA insulated wire

When compared to rubber insulation, PFA is a more suitable alternative, as they are smaller in terms of diameter,

and are lighter in terms of weight. Both these attributes support easy wire installation. They are particularly useful

for applications, which comprise fluctuating voltages and temperatures.

The features of PFA insulated wire include:

  • Chemical resistance
  • Good electrical stability
  • High mechanical strength
  • Low outgassing properties
  • Protects wires during harsh weather conditions
  • Conductor Material: Tinned Copper
  • AWG Rating Range: From 10 to 30 AWG
  • Operating Temperature Range:
  • Static: From -75° C to +200° C
  • Flex: Between -50 °C and 190 °C



These various features and benefits make them the perfect insulation for wires used in gas igniters,

scientific instruments, automotive sensors, and aircraft and marine systems.









Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
