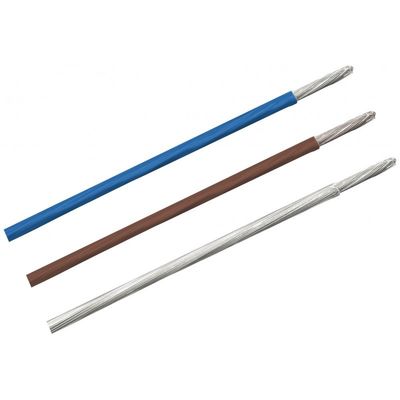

20awg high temp 250C AWM UL1726 PFA Insulated Wire heating cable

Place of Origin China
Brand Name MYSUN
Certification UL
Model Number UL1726
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m/roll
Payment Terms T/T
Supply Ability 50,000m/day
Product Details
Rated Voltage 300V Rated Temperature 250℃
Insulation PFA Conductor Tinned Copper
Standard UL758 Color All Colors Are Available
Appliance Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products. Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008
Packing Reel Name Wire
Size 4/0-32AWG
High Light

teflon coated electrical wire

,

teflon insulated cable

Leave a Message
Product Description

insulated wire UL1726



Specifications:

Nominal voltage: 300V

Temperature range:250C

Standard: UL 758

Insulation: PFA

Conductor: tinned copper wire



Product dimensions:



Conductor Insulation Max.cond Unit Length
resistance (m)(Ft)
Size Construction Diameter Nominal Thickness Diameter (Ω/km)
(AWG) (No./mm) (mm) (mm) (mm)
32 7/0.08 0.24 0.35 0.94 563 610/2000
30 7/0.10 0.30 0.35 1.00 361 610/2000
28 7/0.12 0.36 0.35 1.08 227 610/2000
26 7/0.16 0.48 0.35 1.18 143 610/2000
24 7/0.20 0.60 0.35 1.30 89.3 610/2000
22 19/0.15 0.75 0.35 1.45 56.4 305/1000
20 19/0.185 0.93 0.35 1.63 35.2 305/1000
18 19/0.235 1.17 0.35 1.87 22.2 305/1000
16 19/0.30 1.50 0.35 2.20 14 305/1000
14 19/0.37 1.85 0.35 2.55 8.78 305/1000
12 19/0.47 2.35 0.35 3.05 5.53 305/1000
10 37/0.43 3.00 0.35 3.70 3.476 305/1000
8 37/0.54 3.78 0.51 4.80 2.16 customized
7 37/0.60 4.20 0.51 5.22 1.716
6 37/0.68 4.76 0.51 5.78 1.361
5 37/0.76 5.32 0.80 6.92 1.079
4 37/0.86 6.02 0.80 7.62 0.8859
3 7/2.21 6.63 0.80 8.23 0.6788
2 7/2.48 7.44 0.80 9.04 0.5384
1 7/2.78 8.34 1.20 10.74 0.4268
0 7/3.20 9.60 1.20 12.00 0.3367
2/0 7/3.57 10.71 1.20 13.11 0.267
3/0 7/3.94 11.82 1.20 14.22 0.2119
4/0 7/4.42 13.26 1.20 15.66 0.168











Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
