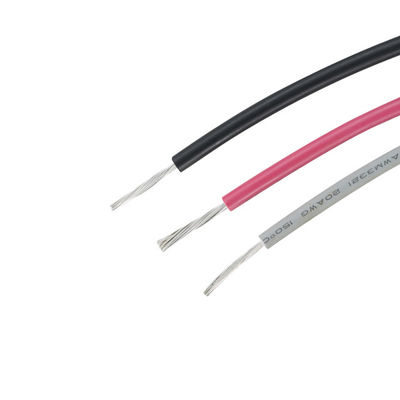

UL3266 300V 125C xlpe insulated cable fire resistant with UL certificate

  • UL3266 300V 125C xlpe insulated cable fire resistant with UL certificate
  • UL3266 300V 125C xlpe insulated cable fire resistant with UL certificate
  • UL3266 300V 125C xlpe insulated cable fire resistant with UL certificate
  • UL3266 300V 125C xlpe insulated cable fire resistant with UL certificate
Place of Origin CHINA
Brand Name MYSUN
Certification UL
Model Number UL3266
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details carton, pallet
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability one million meters each day
Product Details
Insulation XLPE Conductor Tinned Copper
Size 32-10AWG Color Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink
Rated Voltage 300V Working Temp 125C
Use In Motor, Home Appliance SPQ 305m/roll, 610m/roll
Package Reel, Carton, Pallet
High Light

electric hook up cable

,

cross linked polyethylene wire
Leave a Message
Product Description

UL3266 300V 125C xlpe insulated cable fire resistant with UL certificate

Specification:
Rated voltage: 300V
Rated temperature: 125C
UL standard: UL758
Applications: this wire widely sued for motor, home appliance and etc.

Cable dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
32 7/0.08 0.24 0.39 1.02 563 610/2000
30 7/0.10 0.30 1.08 361
28 7/0.127 0.38 1.16 227
26 7/0.16 0.48 1.26 143 305/1000
24 11/0.16 0.60 1.38 89.3
22 17/0.16 0.76 1.54 56.4
20 21/0.18 0.94 1.72 35.2
18 16/0.254 1.18 1.96 22.2
16 26/0.254 1.50 2.28 14
14 41/0.254 1.89 2.67 8.78
12 65/0.254 2.37 3.15 5.53
10 105/0.254 3.02 3.80 3.476



Cable details:
UL3266 300V 125C xlpe insulated cable fire resistant with UL certificate 0
UL3266 300V 125C xlpe insulated cable fire resistant with UL certificate 1
UL3266 300V 125C xlpe insulated cable fire resistant with UL certificate 2
UL3266 300V 125C xlpe insulated cable fire resistant with UL certificate 3
UL3266 300V 125C xlpe insulated cable fire resistant with UL certificate 4

Price term:
EXW, FOB, CIF

Payment terms:
LC, TT, Western Union and PayPal

Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

Tags:

cross linked polyethylene wire

xlpe insulated wire

electric hook up cable
