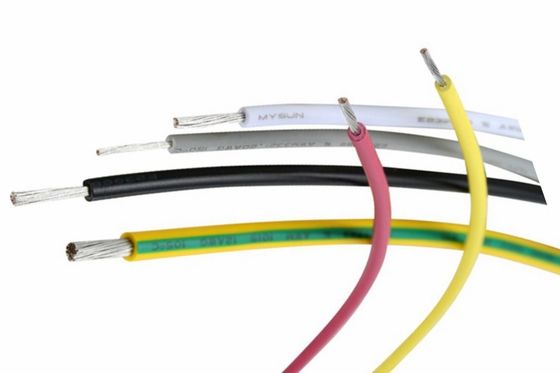

XLPE insulated cable UL3173 26-9AWG halogen free 600V 125C motor lead wire
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Insulation | XLPE | Conductor | Tinned Copper |
|---|---|---|---|
| Size | 26-9AWG | Color | Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink |
| Rated Voltage | 600V | Working Temp | 125C |
| Use In | Motor, Home Appliance | SPQ | 305m/roll, 610m/roll |
| Package | Reel, Carton, Pallet | ||
| High Light | xlpe insulated wire,cross linked polyethylene wire |
||
Product Description
XLPE insulated cable UL3173 26-9AWG halogen free 600V 125C
Specification:
Rated voltage: 600V
Rated temperature: 125C
UL standard: UL758
Applications: this wire widely sued for motorand home appliance, headlamp and etc.
Cable dimensions:
| Conductor | Insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | (Ω/KM) | (M)(Ft) |
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 143 | 305/1000 |
| 24 | 11/0.16 | 0.60 | 2.16 | 89.3 | ||
| 22 | 17/0.16 | 0.76 | 2.32 | 56.4 | ||
| 20 | 21/0.18 | 0.94 | 2.49 | 35.2 | ||
| 18 | 16/0.254 | 1.18 | 2.73 | 22.2 | ||
| 16 | 26/0.254 | 1.50 | 3.06 | 14 | ||
| 14 | 41/0.254 | 1.89 | 3.45 | 8.78 | ||
| 12 | 65/0.254 | 2.37 | 3.93 | 5.53 | ||
| 10 | 105/0.254 | 3.02 | 4.58 | 3.476 | ||
| 9 | 133/0.254 | 3.36 | 4.92 | 2.73 | ||

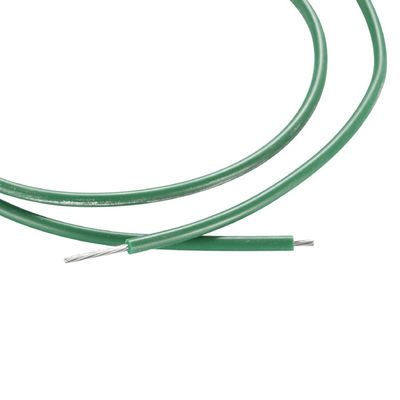

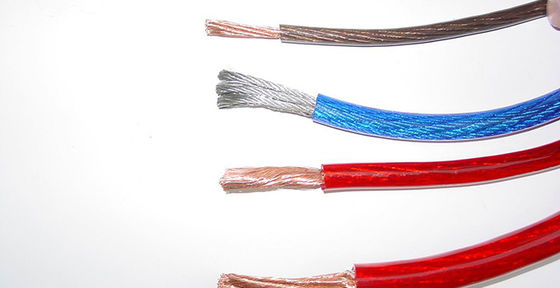

Cable details:
Price term:
EXW, FOB, CIF
Payment terms:
LC, TT, Western Union and PayPal
Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
