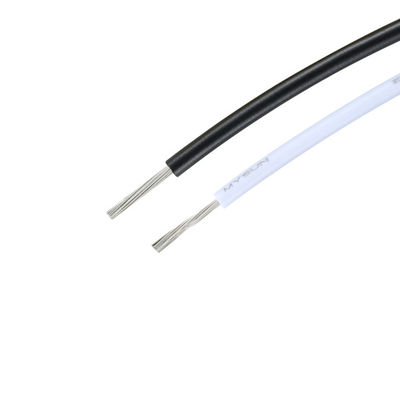

Halogen Free XLPE Hook Up Wire Led Light Cable UL3265 UL Approved Multi Colored

  • Halogen Free XLPE Hook Up Wire Led Light Cable UL3265 UL Approved Multi Colored
  • Halogen Free XLPE Hook Up Wire Led Light Cable UL3265 UL Approved Multi Colored
  • Halogen Free XLPE Hook Up Wire Led Light Cable UL3265 UL Approved Multi Colored
  • Halogen Free XLPE Hook Up Wire Led Light Cable UL3265 UL Approved Multi Colored
Place of Origin China
Brand Name MYSUN
Certification UL, cUl, CSA
Model Number UL3265
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m/roll
Payment Terms T/T
Supply Ability 50,000m/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 150V Temperature 125℃
Standard UL758 Insulation XLPE
Conductor Tinned Copper Appliance Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products And Etc.
Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 Color All Colors Are Available
Flame Test FT-1
High Light

electric hook up cable

,

cross linked polyethylene wire
Leave a Message
Product Description

UL3265 XLPE insulated cable UL certificated



Specifications:

Nominal voltage: 150V

Temperature range: 125C

Standard: UL 758

Insulation: XLPE

Conductor: tinned copper wire



Product dimensions:



CONDUCTOR INSULATION

MAX.COND RESISTANCE

(Ω/KM)



 UNIT LENGTH(M)(Ft)

SIZE

(AWG)

 CONSTRUCTION (NO./mm) DIAMETER (mm) NOMINAL THICKNESS (mm)

DIAMETER

(mm)
32 7/0.08 0.24 0.26 0.76 563 610(2000)
30 7/0.10 0.30 0.82 361
28 7/0.127 0.38 0.90 227
26 7/0.16 0.48 1.00 143 305(1000)
24 11/0.16 0.60 1.12 89.3
22 17/0.16 0.76 1.27 56.4
20 21/0.18 0.94 1.46 35.2
18 16/0.254 1.18 1.70 22.2
16 26/0.254 1.50 2.02

14



BENEFITS OF XLPE INSULATED CABLES​

XLPE or Cross-linked polyethylene is a thermoset insulation material. Crosslinking polymers is a process

which changes the molecular structure of the polymer chains so that they are more tightly bound together

and this crosslinking is done either by chemical means or physical means. Chemical crosslinking involves

the addition of chemicals or initiators such as silane or peroxide to generate free radicals which form

the crosslinking. Physical crosslinking involves subjecting the polymer to a high energy source such as

high-energy electron or microwave radiation.



Polyethylene (PE) material itself has excellent dielectric strength, high insulation resistance, and a low

dissipation factor at all frequencies making it an ideal insulator, however it is limited in its temperature range.

Cross-linking the PE to become XLPE increases the temperature range of the insulation whilst maintaining

the electrical properties.



distinctive properties of XLPE insulated cables and wires:

• They can feature single or multiple cores.
• These wires have a low dielectric constant.
• They have high impact and tensile strength.
• They possess large current carrying capacity.
• They are light weight making them easy to install.
• These cables are resistant to oxidation and UV light.
• They are ideal for both high and low tension current.
• XLPE cables are more flexible compared to SWA cables.
• Conductor material can be made of either aluminum or copper.
• XLPE wires are resistant to external environmental conditions, stress rupture and cracking.





Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days



Why choose us
1. Full experience of 20 years in manufacturing electric cables/wires
2. ISO9001:2008 member
3. Strong R&D Team to design and test products
4. Strict quality control process with strict standards
5. Over 200 certifications for our products including UL, RoHS, CUL, CSA, VDE,CCC, SGS,etc
6. Free samples
7. Several different payment methods,like T/T,L/C,Western Union,Paypal
8. Delivery in one week for your goods
9. Quick after-sale technical advice and guidance
