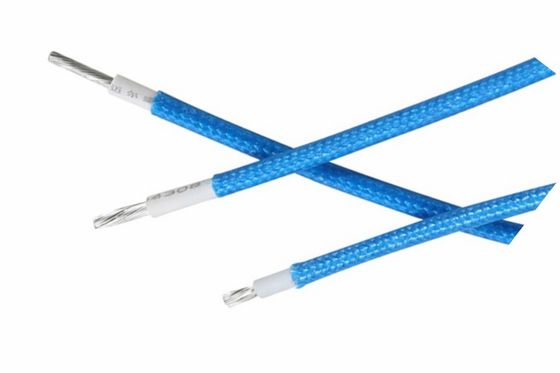

250C Rated Temperature Fiberglass Insulated Copper Wire Cable UL3252 Multi Colored

  • 250C Rated Temperature Fiberglass Insulated Copper Wire Cable UL3252 Multi Colored
  • 250C Rated Temperature Fiberglass Insulated Copper Wire Cable UL3252 Multi Colored
  • 250C Rated Temperature Fiberglass Insulated Copper Wire Cable UL3252 Multi Colored
  • 250C Rated Temperature Fiberglass Insulated Copper Wire Cable UL3252 Multi Colored
Place of Origin CHINA
Brand Name MYSUN
Certification UL
Model Number UL3252
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details carton, pallet
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability one million meters each day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation Silicone Rubber Conductor Nickel-plated Copper
Size 30-10AWG Color Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink
Rated Voltage 600V Working Temp 250V
Use In Coffee Maker, Oven And Other Home Appliance SPQ 305m/roll, 610m/roll
Package Reel, Carton, Pallet Jacket Fiberglass Braided
High Light

braided insulated wire

,

insulated braided copper wire
Leave a Message
Product Description

250C rated temperature silicone fiberglass braided wire UL3252



Specification:

Rated voltage: 600V

Rated temperature: 250C

UL standard: UL758

Applications: this wire widely sued for home appliance, heaters and etc.



Cable dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
30 7/0.10 0.30 0.93 2.16 361 610/2000
28 7/0.12 0.36 2.22 227
26 7/0.16 0.48 2.34 143 305/1000
24 7/0.20 0.60 2.46 89.3
22 7/0.254 0.76 2.62 56.4
20 7/0.31 0.93 2.79 35.2
18 7/0.39 1.17 3.03 22.2
16 7/0.49 1.47 3.33 14
14 41/0.254 1.89 3.75 8.78
12 19/0.47 2.36 4.22 5.53
10 19/0.61 3.05 4.91 3.476




Cable details:

250C Rated Temperature Fiberglass Insulated Copper Wire Cable UL3252 Multi Colored 0

250C Rated Temperature Fiberglass Insulated Copper Wire Cable UL3252 Multi Colored 1

250C Rated Temperature Fiberglass Insulated Copper Wire Cable UL3252 Multi Colored 2

250C Rated Temperature Fiberglass Insulated Copper Wire Cable UL3252 Multi Colored 3

250C Rated Temperature Fiberglass Insulated Copper Wire Cable UL3252 Multi Colored 4





Price term:
EXW, FOB, CIF



Payment terms:
LC, TT, Western Union and PayPal



Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
