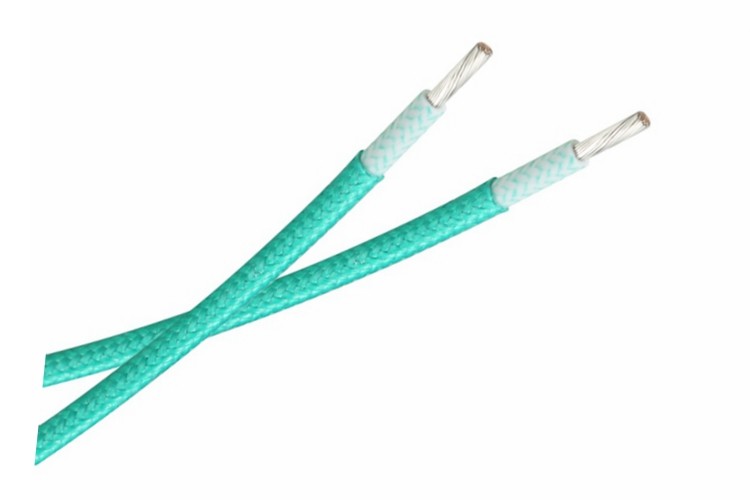

Oil Resistant Braided Thermocouple Wire , Silicone Braided Copper Wire UL3172

  • Oil Resistant Braided Thermocouple Wire , Silicone Braided Copper Wire UL3172
  • Oil Resistant Braided Thermocouple Wire , Silicone Braided Copper Wire UL3172
  • Oil Resistant Braided Thermocouple Wire , Silicone Braided Copper Wire UL3172
  • Oil Resistant Braided Thermocouple Wire , Silicone Braided Copper Wire UL3172
Place of Origin CHINA
Brand Name MYSUN
Certification UL, CSA
Model Number UL3172
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details carton, pallet
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability one million meters each day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation Silicone Rubber Conductor Tinned Copper
Size 26-18AWG Color Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink
Rated Voltage 600V Working Temp 200V
Use In Coffee Maker, Oven And Other Home Appliance SPQ 305m/roll, 610m/roll
Package Reel, Carton, Pallet Jacket Fiberglass Braided
High Light

braided insulated wire

,

insulated braided copper wire
Leave a Message
Product Description

Silicone insulation fiberglass braided wire UL3172 with UL CSA certificate



Specification:

Rated voltage: 600V

Rated temperature: 200C

UL standard: UL758, CSA

Applications: this wire widely sued for rice cooker, oven, break maker and other home appliance, headlamp and etc.



Cable dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
26 7/0.16 0.48 0.95 2.38 143 305/1000
24 7/0.20 0.61 2.51 89.3
22 7/0.254 0.77 2.67 56.4
20 7/0.31 0.94 2.84 35.2
18 7/0.39 1.19 3.09 22.2




Cable details:

Oil Resistant Braided Thermocouple Wire , Silicone Braided Copper Wire UL3172 0

Oil Resistant Braided Thermocouple Wire , Silicone Braided Copper Wire UL3172 1

Oil Resistant Braided Thermocouple Wire , Silicone Braided Copper Wire UL3172 2

Oil Resistant Braided Thermocouple Wire , Silicone Braided Copper Wire UL3172 3





Price term:
EXW, FOB, CIF



Payment terms:
LC, TT, Western Union and PayPal



Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days

Tags:

insulated braided copper wire

braided insulated wire

high temp lead wire
