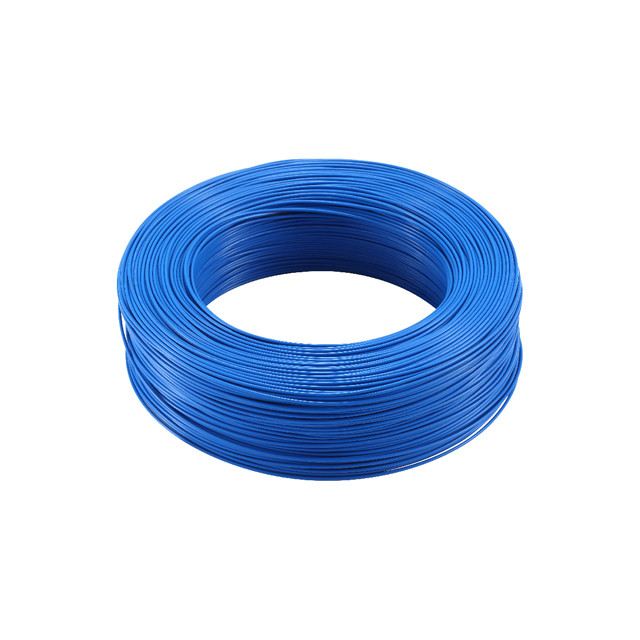

16-30awg UL1591 high temperature Insulated Wire Tinned copper wire

  • 16-30awg UL1591 high temperature Insulated Wire Tinned copper wire
  • 16-30awg UL1591 high temperature Insulated Wire Tinned copper wire
  • 16-30awg UL1591 high temperature Insulated Wire Tinned copper wire
  • 16-30awg UL1591 high temperature Insulated Wire Tinned copper wire
Place of Origin China
Brand Name MYSUN
Certification UL
Model Number UL1591
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m/roll
Payment Terms T/T
Supply Ability 50,000m/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 300V Rated Temperature 150℃
Insulation FEP Conductor Tinned Copper
Standard UL758 Color All Colors Are Available
Appliance Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products. Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008
Packing Reel Name Wire
High Light

insulated hookup wire

,

coated electrical wire
Leave a Message
Product Description

insulated wire UL1591



Specifications:

Nominal voltage: 300V

Temperature range:150C

Standard: UL 758

Insulation: FEP

Conductor: tinned copper wire



Product dimensions:



CONDUCTOR INSULATION MAX.COND RESISTANCE (Ω/KM) UNIT LENGTH (M)(FT)
SIZE (AWG) CONSTRUCTION (NO./mm) DIAMETER (mm) NOMINAL THICKNESS (mm) DIAMETER (mm)
30 7/0.10 0.30 0.35 1.00 361
610(2000)
28 7/0.12 0.36 1.06 227
26 7/0.16 0.48 1.18 143
24 7/0.20 0.60 1.30 89.3
22 19/0.15 0.75 0.38 1.51 56.4 305(1000)
20 19/0.185 0.93 1.69 35.2
18 19/0.235 1.17 1.93 22.2
16 19/0.30 1.50 2.26 14









Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
