UL Listed UL3071 Fiberglass Insulated Copper Wire 18/16/14/13AWG Oil Resistant

  • UL Listed UL3071 Fiberglass Insulated Copper Wire 18/16/14/13AWG Oil Resistant
  • UL Listed UL3071 Fiberglass Insulated Copper Wire 18/16/14/13AWG Oil Resistant
  • UL Listed UL3071 Fiberglass Insulated Copper Wire 18/16/14/13AWG Oil Resistant
  • UL Listed UL3071 Fiberglass Insulated Copper Wire 18/16/14/13AWG Oil Resistant
Place of Origin CHINA
Brand Name MYSUN
Certification UL, CSA
Model Number UL3071
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details carton, pallet
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability one million meters each day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation Silicone Rubber Conductor Tinned Copper
Size 18-13AWG Color Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink
Rated Voltage 600V Working Temp 200V
Use In Coffee Maker, Oven And Other Home Appliance SPQ 305m/roll, 610m/roll
Package Reel, Carton, Pallet Jacket Fiberglass Braided
Highlight

silicone rubber glass braid wire

,

fibreglass insulated cable
Leave a Message
Product Description

UL certificate UL3071 fiberglass insulated copper wire 18/16/14/13AWG



Specification:

Rated voltage: 600V

Rated temperature: 200C

UL standard: UL758, CSA

Applications: this wire widely sued for rice cooker, oven, break maker and other home appliance, headlamp and etc.



Cable dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
18 7/0.39 1.19 0.93 3.05 22.2 305/1000
16 7/0.49 1.49 3.35 14
14 41/0.254 1.87 3.73 8.78
13 50/0.254 2.07 3.93 6.97

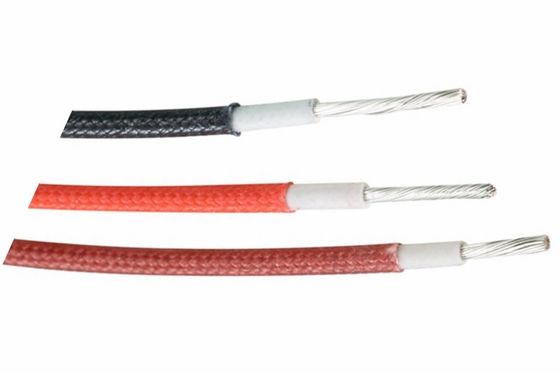

Cable details:

UL Listed UL3071 Fiberglass Insulated Copper Wire 18/16/14/13AWG Oil Resistant 0

UL Listed UL3071 Fiberglass Insulated Copper Wire 18/16/14/13AWG Oil Resistant 1

UL Listed UL3071 Fiberglass Insulated Copper Wire 18/16/14/13AWG Oil Resistant 2

UL Listed UL3071 Fiberglass Insulated Copper Wire 18/16/14/13AWG Oil Resistant 3





Price term:
EXW, FOB, CIF



Payment terms:
LC, TT, Western Union and PayPal



Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
