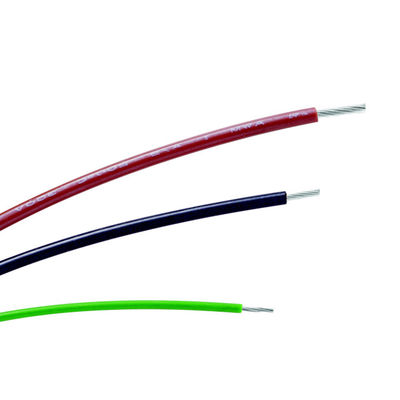

Heat Proof 300V 200C Insulated Wire UL1332 Different Colors Optional

Place of Origin CHINA
Brand Name MYSUN
Certification UL
Model Number UL1332
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details carton, pallet
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 0.6 million meters each day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation FEP Conductor Tinned Copper
Size 30AWG-10AWG Color Black, Red, White, Yellow, Blue, Green, Grey, Yellow-green, Pink, Transparent
Rated Voltage 300V Working Temp 200C
Use In Headlamp, Motor, Home Appliance SPQ 305m/roll, 610m/roll
Package Reel, Carton, Pallet Flame Retardant VW-1
High Light

coated electrical wire

,

insulated cable

Leave a Message
Product Description

300V 200C insulated wire UL1332 different colors for option



Specification:

Rated voltage: 300V

Rated temperature: 200C

UL standard: UL758

Applications: this wire is widely used in household appliances, lighting, electrical appliances,

instrumentation, industrial equipment and other high temperature environment.



Cable dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM) (M)(Ft)
30 1/0.26 0.26 0.305 0.87 361 610/2000
7/0.10 0.30 0.91
28 1/0.32 0.32 0.305 0.93 227 610/2000
7/0.12 0.36 1.38
26 7/0.16 0.48 0.305 1.09 143 610/2000
19/0.10 0.48 1.11
24 1/0.50 0.50 0.305 1.11 89.3 610/2000
7/0.20 0.60 1.21
19/0.12 0.60 1.21
22 1/0.65 0.65 0.33 1.31 56.4 305/1000
7/0.254 0.76 1.42
19/0.15 0.75 1.41
20 1/0.81 0.81 0.33 1.47 35.2 305/1000
7/0.31 0.93 1.59
19/0.19 0.93 1.59
18 1/1.02 1.02 0.33 1.68 22.2 305/1000
7/0.39 1.17 1.83
19/0.235 1.17 1.83
16 1/1.30 1.30 0.33 1.96 14 305/1000
7/0.49 1.47 2.13
19/0.30 1.50 2.16
14 19/0.37 1.85 0.33 2.51 8.78 305/1000
12 19/0.47 2.35 0.33 3.01 5.53 305/1000
10 19/0.61 3.05 0.33 3.71 3.476 305/1000



Cable details:
Heat Proof 300V 200C  Insulated Wire UL1332 Different Colors Optional 0

Heat Proof 300V 200C  Insulated Wire UL1332 Different Colors Optional 1

Heat Proof 300V 200C  Insulated Wire UL1332 Different Colors Optional 2

Heat Proof 300V 200C  Insulated Wire UL1332 Different Colors Optional 3



Price term:
EXW, FOB, CIF



Payment terms:
LC, TT, Western Union and PayPal



Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days



Why Choose Us?
1. Full experience of 20 years in manufacturing silicone cable, cable, xlpe cable, mica cable and wire harness.
2. ISO9001:2015, ISO14001:2015, IATF 16949:2016 member
3. Strong R&D Team to design and test products
4. Strict quality control process with strict standards
5. certifications for our products including UL, cUL, VDE, CSA, CCC and environmental test report: RoHS, REACH
6. Free samples if have samples in stock
7. Several different payment methods, like T/T, L/C, Western Union, Paypal
8. Fast lead time
9. Quick after-sale technical advice and guidance
