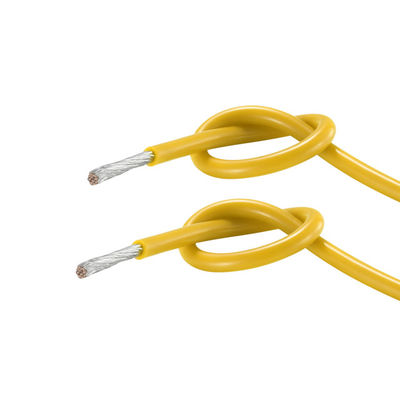

Electrical Appliance Silicone Insulated Wire Super Flexible With Stranded Conductor

  • Electrical Appliance Silicone Insulated Wire Super Flexible With Stranded Conductor
  • Electrical Appliance Silicone Insulated Wire Super Flexible With Stranded Conductor
  • Electrical Appliance Silicone Insulated Wire Super Flexible With Stranded Conductor
  • Electrical Appliance Silicone Insulated Wire Super Flexible With Stranded Conductor
Place of Origin CHINA
Brand Name Mysun
Certification UL,cUL,CSA
Model Number UL3135
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m per roll
Delivery Time 5-8 working days
Payment Terms T/T, L/C
Supply Ability 300km per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 600V Rated Temperature 200C
Insulation Silicone Rubber Conductor Flxible Stranded Tineed Copper
Name High Temperature Silicone Wire Packing 305m/roll,3050m/reel Or Customize
Flame Grade VW-1,FT-1,FT-2 Application UAV Lead Wire, Home Appliance, Cars
High Light

silicone hook up wire

,

silicone electrical cable
Leave a Message
Product Description

UAV Lead wires silicone rubber insulated wire super flexible stranded conductor



ilicone rubber insulated wire



Specifications:

Nominal voltage: 600V

Temperature range: 200C

Standard: UL758

Insulation: silicone rubber

Conductor: Tinned copper wire

Strands of conductor: 60/0.08; 80/0.08; 1500/0.07; 1750/0.05

Windly used in UAV, Robots, Home appliance, coffee machine

Size range: 26AWG to 12AWG, also can be customize

Packing: 610m/roll, 305m/roll, 3050m/wheel,1525m/spool

Product dimensions:



Conductor Insulation Max.cond
resistance
(Ω/km)		 Unit Length
(m)(Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Inside thickness(mm) Diameter
(mm
26 1/0.40 0.40 0.78 1.96 143 610/2000
7/0.16 0.48 2.04
19/0.10 0.48 2.04
24 1/0.50 0.50 0.78 2.06 89.3 305/1000
7/0.20 0.60 2.17
19/0.12 0.60 2.17
22 1/0.65 0.65 0.78 2.21 56.4 305/1000
7/0.254 0.75 2.33
17/0.16 0.75 2.33
20 1/0.81 0.81 0.78 2.37 35.2 305/1000
7/0.31 0.93 2.50
26/0.16 0.93 2.50
18 7/0.39 1.19 0.78 2.75 22.2 305/1000
18 41/0.16 1.18 0.78 2.75 22.2
16 7/0.49 1.49

0.78

 3.05 14 305/1000
16 26/0.254 1.49

0.78

 3.05 14
14 41/0.254 1.87 0.78 3.43 8.87 305/1000
12 19/0.47 2.35 0.78 3.92 5.53 305/1000

SIZE

(mm²)


0.30 12/0.18 0.71 0.78 2.27 60 610/2000
0.50 20/0.18 0.92 0.78 2.48 40 305/1000
0.75 30/0.18 1.13 0.78 2.69 27 305/1000
1.00 40/0.18 1.31 0.78 2.87 20 305/1000
1.25 50/0.18 1.46 0.78 3.02 14 305/1000
1.50 30/0.254 1.61 0.78 3.17 9 305/1000
2.00 41/0.254 1.87 0.78 3.43 8.5 305/1000
2.50 50/0.254 2.08 0.78 3.64 7.3 305/1000















Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
