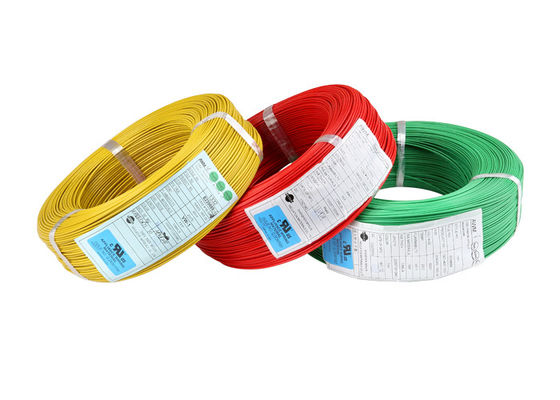

Lighting lead wires insulated wires take care for your safty

  • Lighting lead wires insulated wires take care for your safty
  • Lighting lead wires insulated wires take care for your safty
  • Lighting lead wires insulated wires take care for your safty
  • Lighting lead wires insulated wires take care for your safty
Place of Origin CHINA
Brand Name Mysun
Certification VDE
Model Number VDE8207
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m per roll or 3050m/spool/wheel
Delivery Time 5-10 working days
Payment Terms T/T, L/C
Supply Ability 300km per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 300/300V Temperature 180C
Insulation FEP Conductor Tinned Copper Or Nickel Plated Copper
Color All Colors Are Available Use In Automobile Cars,lightings, Coffee Machine, Metro
Flame Rating VW-1,FT-1 Purity 99.95% Above
Abrasion Auto Certifcated IATF 16949 Packing 305-610m/roll Or 3050m/reel
Highlight

coated electrical wire

,

insulated cable
Leave a Message
Product Description

insulated wire VDE8207



Specifications:

Nominal voltage: 300/300V

Temperature range: 180C

Standard: UL 758

Insulation: FEP

Conductor: tinned copper wire



Windly used in cars, home appliance like coffee machine,rice cooker,metros.



Product dimensions:

Conductor Insulation Max.cond
resistance
(Ω/km)		 Unit Length
(m)(Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)
30 1/0.26 0.26  0.305 0.87 361 610/2000
7/0.10 0.30  0.91
28 1/0.32 0.32  0.305 0.93  227 610/2000
7/0.12 0.36  1.38
26 7/0.16 0.48  0.305 1.09  143 610/2000
19/0.10 0.48  1.11
24 1/0.50 0.50  0.305 1.11  89.3 610/2000
7/0.20 0.60  1.21
19/0.12 0.60  1.21
22 1/0.65 0.65  0.33 1.31  56.4 305/1000
7/0.254 0.76  1.42
19/0.15 0.75  1.41
20 1/0.81 0.81  0.33  1.47  35.2 305/1000
7/0.31 0.93  1.59
19/0.19 0.93  1.59
18 1/1.02 1.02  0.33  1.68  22.2 305/1000
7/0.39 1.17  1.83
19/0.235 1.17  1.83
16 1/1.30 1.30  0.33  1.96  14 305/1000
7/0.49 1.47  2.13
19/0.30 1.50  2.16
14 19/0.37 1.85  0.33  2.51  8.78 305/1000
12 19/0.47 2.35  0.33  3.01  5.53 305/1000
10 19/0.61 3.05  0.33  3.71  3.476 305/1000











FAQ:





1.Do you have Automotive Wire?

A: Yes of course, we attained IATF 16949 auto certification.



2.What is the cost for 50m samples? can I pay by Paypal?

A: Yes you could pay by paypal, besides if we got stock for this item, we will send you by free



3. How can I get samples?

A:Please tell us the detailed information of products you need. Then we will check our stock.We can offer the free samples immediately.

If we don't have the exact model you need, Maybe we will send you similar sample if you accept.If you couldn’t accept,it will take us 3-5days to get the sample done.



Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
