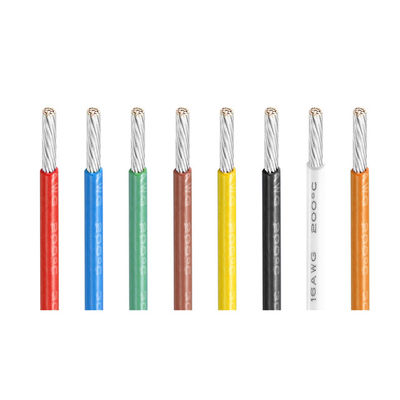

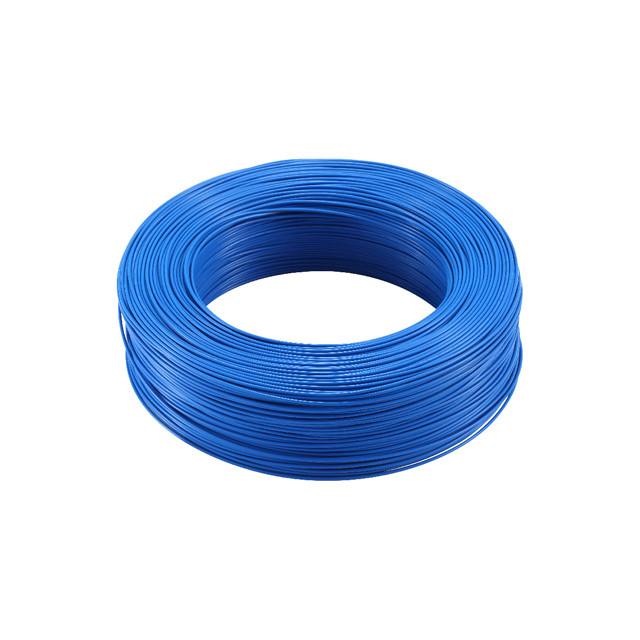

Automobile lead wires insulated wire take care for your safty

  • Automobile lead wires insulated wire take care for your safty
  • Automobile lead wires insulated wire take care for your safty
  • Automobile lead wires insulated wire take care for your safty
  • Automobile lead wires insulated wire take care for your safty
Place of Origin CHINA
Brand Name Mysun
Certification UL,cUL,CSA
Model Number UL1333
Minimum Order Quantity 5000 pcs
Price Negotiable

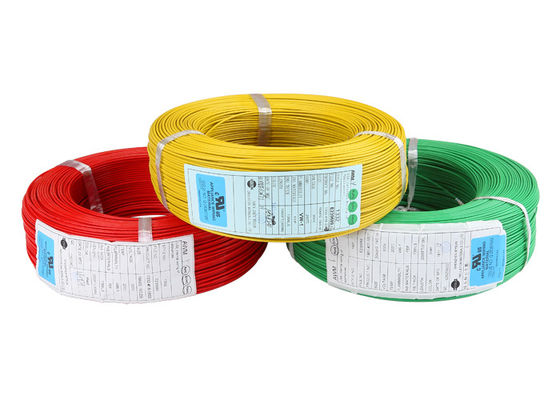

Packaging Details 305m per roll or 3050m/spool/wheel
Delivery Time 5-10 working days
Payment Terms T/T, L/C
Supply Ability 300km per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 300V Temperature 200C
Insulation FEP Conductor Tinned Copper Or Nickel Plated Copper
Color All Colors Are Available Use In Automobile Cars,lightings, Coffee Machine, Metro
Flame Rating 100% Passed VW-1,FT-1 Purity 99.95% Above
UL File NO. E239689 Abrasion 100% Passed IATF 16949
High Light

insulated hookup wire

,

coated electrical wire
Leave a Message
Product Description

insulated wire UL1331



Specifications:

Nominal voltage: 300V

Temperature range: 150C

Standard: UL 758

Insulation: FEP

Conductor: tinned copper wire



Windly used in cars, home appliance like coffee machine,rice cooker,metros.



Product dimensions:

Conductor Insulation Max.cond
resistance
(Ω/km)		 Unit Length
(m)(Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)
30 1/0.26 0.26  0.305 0.87 361 610/2000
7/0.10 0.30  0.91
28 1/0.32 0.32  0.305 0.93  227 610/2000
7/0.12 0.36  1.38
26 7/0.16 0.48  0.305 1.09  143 610/2000
19/0.10 0.48  1.11
24 1/0.50 0.50  0.305 1.11  89.3 610/2000
7/0.20 0.60  1.21
19/0.12 0.60  1.21
22 1/0.65 0.65  0.33 1.31  56.4 305/1000
7/0.254 0.76  1.42
19/0.15 0.75  1.41
20 1/0.81 0.81  0.33  1.47  35.2 305/1000
7/0.31 0.93  1.59
19/0.19 0.93  1.59
18 1/1.02 1.02  0.33  1.68  22.2 305/1000
7/0.39 1.17  1.83
19/0.235 1.17  1.83
16 1/1.30 1.30  0.33  1.96  14 305/1000
7/0.49 1.47  2.13
19/0.30 1.50  2.16
14 19/0.37 1.85  0.33  2.51  8.78 305/1000
12 19/0.47 2.35  0.33  3.01  5.53 305/1000
10 19/0.61 3.05  0.33  3.71  3.476 305/1000











FAQ:

1. Are you a manufacturer?



A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;

and have 20 years leading experience in manufacturing wires.



2. What are your main products?



A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.



3.What certification did your products pass?

A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications



Service:

Shipment:

1. by express

2. by sea

3. by air



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
