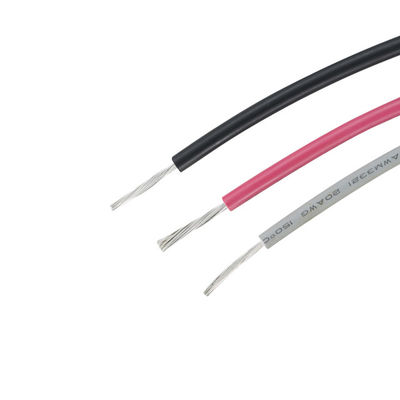

Low smoke and halogen free XLPE insulated wire and cable UL3271

  • Low smoke and halogen free XLPE insulated wire and cable UL3271
Place of Origin CHINA
Brand Name Mysun
Certification UL,cUL
Model Number UL3271
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m per roll
Delivery Time 5-10 working days
Payment Terms T/T, L/C
Supply Ability 15km per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 600V Rated Temperature 125C
Insulation XLPE Conductor Tinned Copper
High Light

xlpe insulated wire

,

electric hook up cable
Leave a Message
Product Description

XLPE insulated cable UL certificated NO. 3271



Specifications:

Nominal voltage: 600V

Temperature range: 125C

Standard: UL 758

Insulation: XLPE

Conductor: tinned copper wire



Product dimensions:



Conductor Insulation Max.cond
resistance
(Ω/km)		 Unit Length
(m)(Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Inside thickness(mm) Diameter
(mm)
28 7/0.127 0.38 0.78 1.94 227 610/2000
26 7/0.16 0.48 0.78 2.04 143 610/2000
24 11/0.16 0.60 0.78 2.16 89.3 305/1000
22 17/0.16 0.76 0.78 2.32 56.4 305/1000
20 21/0.18 0.94 0.78 2.49 35.2 305/1000
18 16/0.254 1.18 0.78 2.73 22.2 305/1000
16 26/0.254 1.50 0.78 3.05 14 305/1000
14 41/0.254 1.89 0.78 3.45 8.78 305/1000
12 65/0.254 2.37 0.78 3.93 5.53 305/1000
10 105/0.254 3.02 0.78 4.58 3.476 305/1000
9 133/0.254 3.36 1.15 4.92 2.73 100/328
8 133/0.28 3.75 1.15 6.05 2.16 100/328





Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
