UL Certificated Insulated Wire And Cable Oil Resistant UL10362 600V 250C

  • UL Certificated Insulated Wire And Cable Oil Resistant UL10362 600V 250C
  • UL Certificated Insulated Wire And Cable Oil Resistant UL10362 600V 250C
  • UL Certificated Insulated Wire And Cable Oil Resistant UL10362 600V 250C
Place of Origin CHINA
Brand Name Mysun
Certification UL,cUL,CSA
Model Number UL10362
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m per roll
Delivery Time 5-10 working days
Payment Terms T/T, L/C
Supply Ability 200km per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 600V Rated Temperature 250C
Insulation PFA Conductor Tinned Copper Or Nickel Plated Copper
Color All Colors Are Available Flame Level 100% Pass VW-1 And FT-1 Test
Spark Test 100% Pass 6500V AC Test ROHS 100% PASSED
REACH 100% PASSED
High Light

insulated hookup wire

,

insulated cable
Leave a Message
Product Description

insulated wire and cable UL10362



Retad voltage 600V
Retad  temperature 250°C
Insulation PFA
Conductor nickel-plated copper wire
Standards UL 758
Application home appliances/ leds/industrial machine
M/FT 305/1000,610/2000
Size 30,28,26,24,22,20,18,16,14,12,10,8
Color white,black,red,brown,yellow,blue,green,transparent etc.
Conductor Insulation Max.Cond Resistance
(Ω/KM)		 Unit length
(M)(Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)
30 7/0.10 0.30 0.300 0.90 361 610/2000
28 7/0.12 0.38 0.300 0.96 227 610/2000
26 7/0.16 0.48 0.300 1.08 143 610/2000
24 7/0.20 0.61 0.300 1.20 89.3 610/2000
22 19/0.15 0.75 0.300 1.35 56.4 305/1000
20 19/0.185 0.93 0.300 1.53 35.2 305/1000
18 19/0.235 1.17 0.300 1.77 22.2 305/1000
16 19/0.30 1.50 0.300 2.20 14 305/1000
14 19/0.37 1.85 0.300 2.55 8.78 305/1000
12 19/0.47 2.35 0.300 3.15 5.53 305/1000
10 37/0.43 3.00 0.300 3.80 3.476 305/1000
8 37/0.54 3.78 0.800 5.38 2.16
7 37/0.60 4.20 0.800 5.80 1.716
6 37/0.68 4.76 0.800 6.36 1.361
5 37/0.76 5.32 0.800 6.92 1.079
4 37/0.86 6.02 0.800 7.62 0.8559
3 7/2.21 6.63 0.800 8.23 0.6788 as order
2 7/2.48 7.44 0.800 9.04 0.5384
1 7/2.78 8.34 1.200 10.74 0.4268
0 7/3.20 9.60 1.200 12.00 0.3367
2/0 7/3.57 10.71 1.200 13.11 0.267
3/0 7/3.94 11.82 1.200 14.22 0.2119
4/0 7/4.42 13.26 1.200 15.66 0.168

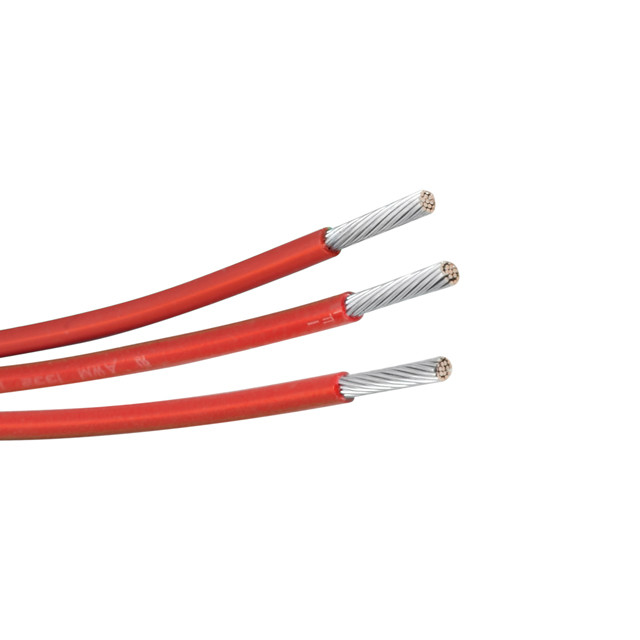

UL Certificated Insulated Wire And Cable Oil Resistant UL10362 600V 250C 0

UL Certificated Insulated Wire And Cable Oil Resistant UL10362 600V 250C 1

FAQ:

1. What is the diffierence between FEP and PFA?

A: They are both of materials, FEP is normally rated 200C but PFA is better than it, 250C rated temperature, higher rated voltage.



 2.What certification did your products pass?

A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications.



3.​Is the quality of your products guaranteed?

A:Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment,

and our workers are highly experienced . We strictly follow the international standards and customers' requirements.
