AWM5335 450 Degree Mica Insulated Wire Nickel Plating

  • AWM5335 450 Degree Mica Insulated Wire Nickel Plating
  • AWM5335 450 Degree Mica Insulated Wire Nickel Plating
  • AWM5335 450 Degree Mica Insulated Wire Nickel Plating
Place of Origin Guangdong
Brand Name Mysun
Certification UL/cUL/CCC/CE/RoHS/SGS
Model Number UL5335
Minimum Order Quantity 3050/6100meters
Price Negotiable
Packaging Details 305/610 Meters per Roll / 7 Rolls per Carton or can be customized
Delivery Time 7-10 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item Mica Insulated Wire Insulation Mica + Glass
Conductor Nickel-plated Copper Color 8 Colors
OD 2.2-7.85mm Application Headlamp, Industrial Machine, Electro Thermal Products
Country Of Orgin Guangdong, China Standard UL758
Package Customize Model AWM5335
Rated Voltage 600V Rated Temperature 450°c
High Light

450 Degree Mica Insulated Wire

,

AWM5335 Mica Insulated Wire

,

Nickel Plating Mica Copper Wire
Leave a Message
Product Description

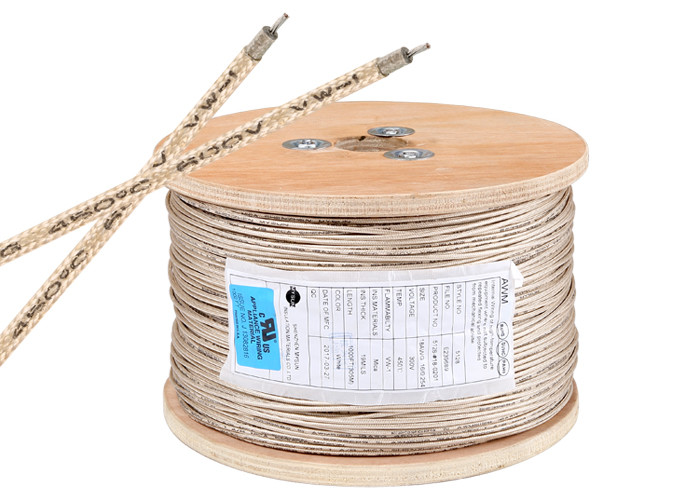

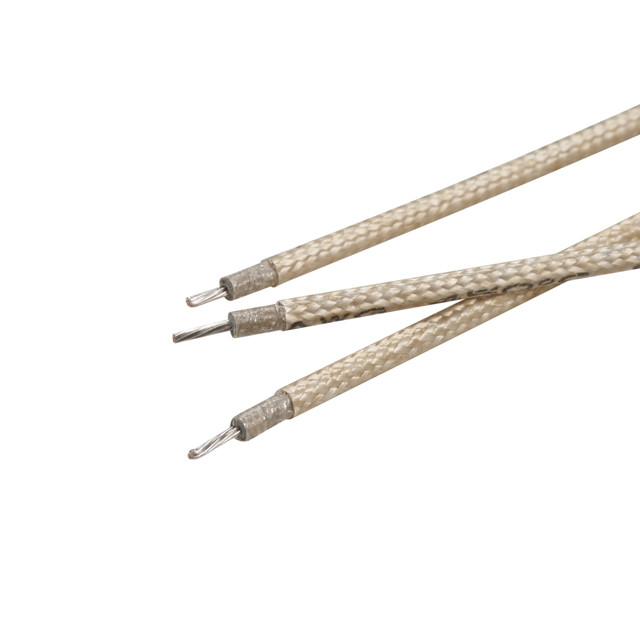

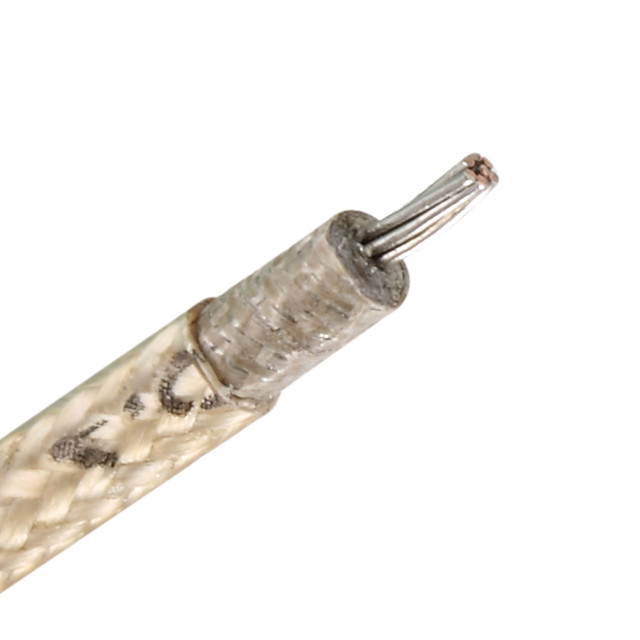

The AWM5335 450 degree Special electrical wires with nickel plating copper wire High temperature Mica



Product dimensions:

Conductor Insulation Max.cond
resistance
(Ω/km)		 Unit Length
(m)(Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)
26 7/0.16 0.48 0.60 1.68 143 305/1000
24 7/0.20 0.61 1.81 89.3
22 7/0.254 0.77 1.97 56.4
20 7/0.31 0.94 2.14 35.2
18 7/0.39 1.19 2.39 22.2
16 7/0.49 1.49 2.69 14
24 1/0.50 0.50 0.65 1.80 89.3 305/1000
22 1/0.65 0.65 1.95 56.4
20 1/0.81 0.81 2.11 35.2
18 1/1.02 1.02 2.32 22.2
16 1/1.20 1.20 2.50 14
24 11/0.16 0.61 0.60 1.81 89.3 305/1000
22 17/0.16 0.76 1.96 56.4
20 26/0.16 0.94 2.14 35.2
18 41/0.16 1.18 2.38 22.2
16 26/0.254 1.49 2.69 14
0.30mm² 12/0.18 0.71 0.60 1.91 59.78 305/1000
0.50mm² 20/0.18 0.92 2.12 40.1
0.75mm² 30/0.18 1.13 2.33 26.7
1.00mm² 40/0.18 1.31 2.51 20
1.25mm² 50/0.18 1.46 2.66 14.35

AWM5335 450 Degree Mica Insulated Wire Nickel Plating 0​

AWM5335 450 Degree Mica Insulated Wire Nickel Plating 1​AWM5335 450 Degree Mica Insulated Wire Nickel Plating 2AWM5335 450 Degree Mica Insulated Wire Nickel Plating 3
AWM5335 450 Degree Mica Insulated Wire Nickel Plating 4​
AWM5335 450 Degree Mica Insulated Wire Nickel Plating 5​
AWM5335 450 Degree Mica Insulated Wire Nickel Plating 6​

Service
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
