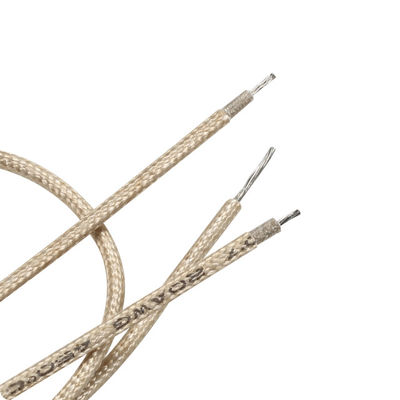

Fireproof Electric Heating Element Wire 450C Mica Insulated UL5335 UL Certificate

Fireproof Electric Heating Element Wire 450C Mica Insulated UL5335 UL Certificate

    • Fireproof Electric Heating Element Wire 450C Mica Insulated UL5335 UL Certificate
    • Fireproof Electric Heating Element Wire 450C Mica Insulated UL5335 UL Certificate
    • Fireproof Electric Heating Element Wire 450C Mica Insulated UL5335 UL Certificate
  • Fireproof Electric Heating Element Wire 450C Mica Insulated UL5335 UL Certificate

    Product Details:

    Place of Origin: CHINA
    Brand Name: MYSUN
    Certification: UL
    Model Number: UL5335

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: Negotiable
    Packaging Details: carton, pallet
    Delivery Time: 10-15 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 20000 meters each day
    Contact Now
    Detailed Product Description
    Insulation: Mica Conductor: Nickel-plated Copper Or Pure Nickel
    Size: 22-4AWG Color: White, Black, Blue, Brown
    Rated Voltage: 600V Working Temp: 450C
    Use In: Heater SPQ: 305m/roll Or 610m/roll
    Package: Reel, Carton, Pallet Jacket: Fiberglass Braided

    UL certificate 450C mica insulated wire UL5335 for heating element

    Specification:
    Rated voltage: 600V
    Rated temperature: 450C
    UL standard: UL758
    Applications: this wire widely sued for heating element and home appliance

    Cable dimensions:



    Conductor Insulation Max.Cond Resistance Unit length
    Size
    (AWG)
    Construction
    (No./mm)
    Diameter
    (mm)
    Nominal Thickness
    (mm)
    Diameter
    (mm)
    (Ω/KM) (M)(Ft)
    22 7/0.25 0.77 ≥0.585 0.127 ≥2.20 305/1000
    20 7/0.31 0.94 ≥2.40
    18 16/0.254 1.19 ≥2.65
    16 26/0.254 1.49 ≥2.95
    14 41/0.254 1.87 ≥3.30
    12 65/0.254 2.36 ≥4.25 200/656
    10 35/0.45 3.06 ≥0.686 0.254 ≥4.95 100/328
    8 67/0.40 3.75 ≥5.65
    6 266/0.254 4.75 ≥6.65
    4 420/0.254 6.02 ≥7.85

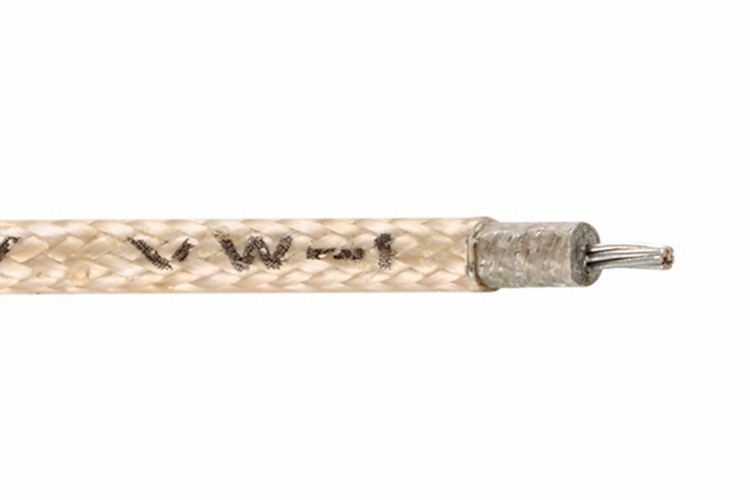

    Cable details:
    Fireproof Electric Heating Element Wire 450C Mica Insulated UL5335 UL Certificate
    Fireproof Electric Heating Element Wire 450C Mica Insulated UL5335 UL Certificate
    Fireproof Electric Heating Element Wire 450C Mica Insulated UL5335 UL Certificate
    Fireproof Electric Heating Element Wire 450C Mica Insulated UL5335 UL Certificate
     Fireproof Electric Heating Element Wire 450C Mica Insulated UL5335 UL Certificate


    Price term:
    EXW, FOB, CIF


    Payment terms:
    LC, TT, Western Union and PayPal


    Lead time:
    Sample order: 1-3 working days
    Big order: 5-10 working days
    Customized order: 10-15 working days
