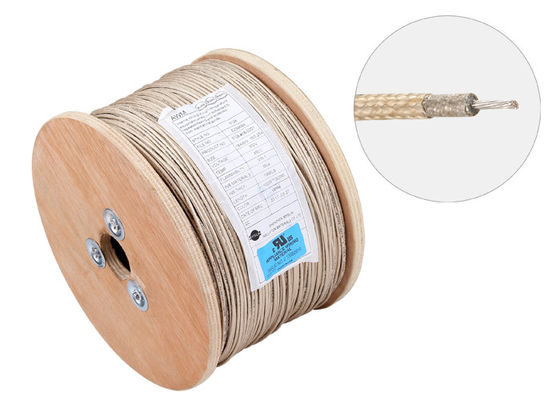

Fiberglass Braiding Heater Hook Up Wire , Household Electrical Cable UL5128 300v 450c

Fiberglass Braiding Heater Hook Up Wire , Household Electrical Cable UL5128 300v 450c

Fiberglass Braiding Heater Hook Up Wire , Household Electrical Cable UL5128 300v 450c

Product Details:

Place of Origin: CHINA
Brand Name: Mysun
Certification: UL,cUL
Model Number: UL5128

Payment & Shipping Terms:

Minimum Order Quantity: 5000 pcs
Price: Negotiable
Delivery Time: 7- working days
Payment Terms: T/T, L/C
Supply Ability: 20km per day
Contact Now
Detailed Product Description
Voltage: 300V Temperature: 450C
Insulation: Mica Jacket: Fiberglass Braiding
Conductor: Nickel Plated Copper Or Pure Nickel

450 degrees mica insulated wire



Product dimensions:

Conductor Insulation Unit Length
(m)
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Mica Thickness
(mm)
Glass Thickness
(mm)
Diameter
(mm)
24 7/0.20 0.61 ≥0.381 0.178 ≥1.75 305
22 7/0.25 0.77 ≥1.90
20 7/0.31 0.94 ≥2.10
18 16/0.254 1.19 ≥2.30
16 26/0.254 1.49 ≥2.60
14 41/0.254 1.87 ≥3.00
12 65/0.254 2.36 ≥0.508 0.381 ≥4.15 200
10 35/0.45 3.06 ≥4.85 100
8 67/0.40 3.75 ≥5.55
6 266/0.254 4.75 ≥6.55
4 420/0.254 6.02 ≥7.80
