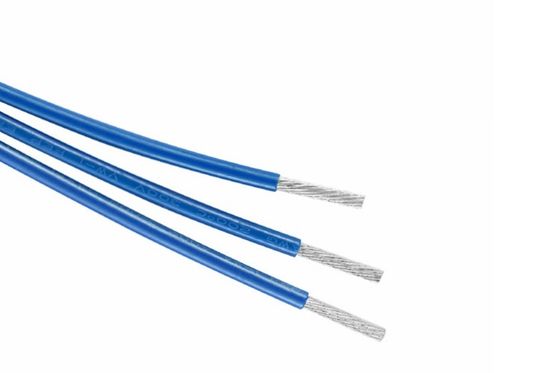

high temp 1.5mm VDE8207 Insulated Wire durable oil resistant FEP cable

high temp 1.5mm VDE8207 Insulated Wire durable oil resistant FEP cable

    • high temp 1.5mm VDE8207  Insulated Wire durable oil resistant FEP cable
    • high temp 1.5mm VDE8207  Insulated Wire durable oil resistant FEP cable
    • high temp 1.5mm VDE8207  Insulated Wire durable oil resistant FEP cable
  • high temp 1.5mm VDE8207  Insulated Wire durable oil resistant FEP cable

    Product Details:

    Place of Origin: China
    Brand Name: MYSUN
    Certification: VDE
    Model Number: VDE8207

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: Negotiable
    Packaging Details: 305m/roll
    Payment Terms: T/T
    Supply Ability: 50,000m/day
    Contact Now
    Detailed Product Description
    Rated Voltage: 300V Rated Temperature: 180℃
    Insulation: FEP Conductor: Tinned Copper Wire
    Standard: VDE 0250 Color: All Colors Are Available
    Appliance: Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products. Certification: ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008
    Packing: Reel Name: High Temperature Wire
    Size: 012-5.00mm Name: Wire

    insulated wire VDE 8207



    Specifications:

    Nominal voltage:300V

    Temperature range:180C

    Standard: VDE 0250

    Insulation: FEP

    Conductor: Tinned copper wire

    appliance:home appliance, headlamp, industrial machine, electro thermal products.

    color:all colors are available



    Product dimensions:



    CONDUCTOR INSULATION MAX.COND RESISTANCE (Ω/KM) UNIT LENGTH (M)(FT)
    SIZE (AWG) CONSTRUCTION (NO./mm) DIAMETER (mm) NOMINAL THICKNESS (mm) DIAMETER (mm)
    0.12 7/0.15 0.46 0.305 1.06 150.15 610(2000)
    0.20 7/0.20 0.60 0.305 1.21 89.3 610(2000)
    0.30 19/0.15 0.75 0.305 1.36 59.78 610(2000)
    0.50 19/0.19 0.95 0.305 1.56 40.1 305(1000)
    0.75 19/0.23 1.17 0.305 1.78 26.7 305(1000)
    1.00 19/0.26 1.31 0.305 1.91 20 305(1000)
    1.25 19/0.29 1.46 0.350 2.16 14.35 305(1000)
    1.50 19/0.32 1.61 0.350 2.31 13.7 305(1000)
    2.00 19/0.37 1.85 0.350 2.55 8.78 305(1000)
    2.50 19/0.41 2.06 0.350 2.76 7.16 305(1000)
    3.00 19/0.47 2.35 0.350 3.05 6.5 305(1000)
    4.00 19/0.52 2.60 0.450 3.50 4.7 305(1000)
    5.00 37/0.43 3.01 0.450 3.91 3.76 305(1000)



    advantage of our wire:
    It is resistant to soldering. It remains unaffected in such circumstances.
    It does not absorb moisture. Hence, it can be used in damp environments.
    They exhibit low dielectric constant and high dielectric strength. This makes the material chemically inert.
    It is extremely strong with high impact strength. Despite the high levels of strength, this material is flexible.
    It has high heat capacity making it resistant to thermal aging. It can withstand temperatures as high as 260 ºC ( ºF)
    It is inflammable (flame resistant). It is not only be used in high temperature applications but also around applications where fire is used.
    It is corrosion resistant. Hence, it can be used in environments where other materials will be easily corroded.
    The coefficient of friction of the material is also extremely low. It can therefore be used in conjunction with bearings, and other equipment that can cause friction.
    It is abrasion resistant making it extremely useful in outdoor applications, or those using abrasive chemicals and media.
