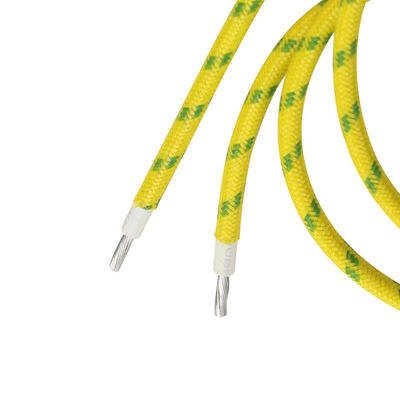

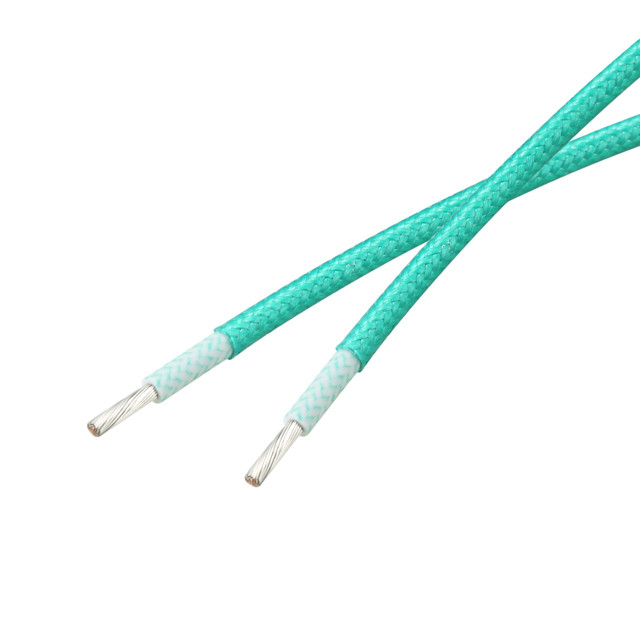

Home Appliance Fiberglass Braided Lamp Wire , Braided Insulated Wire AWM3712

Home Appliance Fiberglass Braided Lamp Wire , Braided Insulated Wire AWM3712

    • Home Appliance Fiberglass Braided Lamp Wire , Braided Insulated Wire AWM3712
    • Home Appliance Fiberglass Braided Lamp Wire , Braided Insulated Wire AWM3712
    • Home Appliance Fiberglass Braided Lamp Wire , Braided Insulated Wire AWM3712
    • Home Appliance Fiberglass Braided Lamp Wire , Braided Insulated Wire AWM3712
  • Home Appliance Fiberglass Braided Lamp Wire , Braided Insulated Wire AWM3712

    Product Details:

    Place of Origin: CHINA
    Brand Name: Mysun
    Certification: UL,cUL,CSA
    Model Number: UL3172

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: Negotiable
    Packaging Details: 305m per roll
    Delivery Time: 7-10 working days
    Payment Terms: T/T
    Supply Ability: 800km per day
    Contact Now
    Detailed Product Description
    Rated Voltage: 600V Rated Temperature: 200C
    Insulation: Silicone Rubber Jacket: Fiberglass Braiding
    Standard: UL758/UL1581 Type: AWM3712
    Application: Use Inside On Appliance Packing: 305-610m/roll Or 915-3050m/reel

    silicone rubber fiberglass braided wire UL3172



    Specifications:

    Nominal voltage: 600V

    Temperature range: 200C

    Standard: UL 758

    Conductor: Tinned copper wire

    Insulation: Silicone Rubber

    Insulation: Fiber Glass

    Application: Home appliance, coffee machine, rice cooker,



    Factory selling directly strong capacity 800,000m per day

    Good quality and competitive price



    Product dimensions:

    Conductor Insulation Max.cond
    resistance
    (Ω/km)
    Unit Length
    (m)(Ft)
    Size
    (AWG)
    Construction
    (No./mm)
    Diameter
    (mm)
    Nominal Thickness
    (mm)
    Diameter
    (mm)
    26 7/0.16 0.48 0.95 2.38 143 305/1000
    24 7/0.20 0.61  2.51 89.3
    22 7/0.254 0.77  2.67  56.4
    20 7/0.31 0.94 2.84 35.2
    18 7/0.39 1.19 3.09  22.2








    Service:

    Shipment:

    1. by express

    2. by sea



    Payment terms:

    LC, TT, Western Union, Money Gram and PayPal



    Delivery:

    Sample order: 1-3 working days

    Big order: 5-10 working days

    Customized order: 10-15 working days
