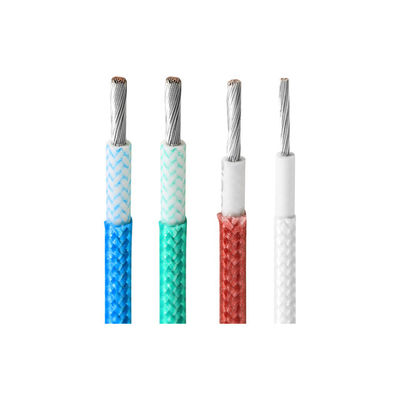

Coffee Machine High Temp Lead Wire , Fiberglass Braided Electrical Wire

  • Coffee Machine High Temp Lead Wire , Fiberglass Braided Electrical Wire
  • Coffee Machine High Temp Lead Wire , Fiberglass Braided Electrical Wire
  • Coffee Machine High Temp Lead Wire , Fiberglass Braided Electrical Wire
  • Coffee Machine High Temp Lead Wire , Fiberglass Braided Electrical Wire
Place of Origin CHINA
Brand Name Mysun
Certification UL,cUL,CSA
Model Number UL3122
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m per roll
Delivery Time 7-10 working days
Payment Terms T/T
Supply Ability 800km per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 600V Rated Temperature 200C
Insulation Silicone Rubber And Fiberglass Braiding Conductor Tineed Copper Or Nickel Pltaed Copper
Color All Colors Are Availbale Packing 305m/roll,3050m/reel Or Customize
Purity 99.95% Above Application Coffee Machine, Rice Cooker, Oven
Capacity 800,000m/day Shipping Term FOB,CIF,CRF
Highlight

insulated braided copper wire

,

high temp lead wire
Leave a Message
Product Description

Silicone fiberglass wire UL3122 electrical wire



Specifications:

Nominal voltage: 300V

Temperature range: 200C

Standard: UL 758

Conductor: Tinned copper wire single or strands

Insulation: Silicone Rubber

Insulation: Fiber Glass



Product dimensions:

Conductor Insulation Max.cond
resistance
(Ω/km)		 Unit Length
(m) (Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)
26 7/0.16 0.48  0.60  1.68  143 305/1000
24 7/0.20 0.61  1.81  89.3
22 7/0.254 0.77  1.97  56.4
20 7/0.31 0.94  2.14  35.2
18 7/0.39 1.19  2.39  22.2
16 7/0.49 1.49  2.69  14
24 1/0.50 0.50  0.65  1.80  89.3 305/1000
22 1/0.65 0.65  1.95  56.4
20 1/0.81 0.81  2.11  35.2
18 1/1.02 1.02  2.32  22.2
16 1/1.20 1.20  2.50  14
24 11/0.16 0.61  0.60  1.81  89.3 305/1000
22 17/0.16 0.76  1.96  56.4
20 26/0.16 0.94  2.14  35.2
18 41/0.16 1.18  2.38  22.2
16 26/0.254 1.49  2.69  14
0.30mm² 12/0.18 0.71  0.60  1.91  59.78 305/1000
0.50mm² 20/0.18 0.92  2.12  40.1
0.75mm² 30/0.18 1.13  2.33  26.7
1.00mm² 40/0.18 1.31  2.51  20
1.25mm² 50/0.18 1.46  2.66  14.35



Coffee Machine High Temp Lead Wire , Fiberglass Braided Electrical Wire 0

Coffee Machine High Temp Lead Wire , Fiberglass Braided Electrical Wire 1



FAQ:

1. Are you a manufacturer?

A:Yes,WeOur factory is located in Shenzhen City and have 20 years leading experience wires.



2. Is the quality of your products guaranteed?

A:Yes,the quality of our products is highly guaranteed.

Our workshops are equipped with advanced machines and test equipment



3. How can I get samples?

A:Please tell us the detailed information of products you need. Then we will check our stock.

We can offer the free samples immediately. If we don't have the exact model you need,

Maybe we will send you similar sample if you accept.If you couldn’t accept,it will take us 3-5days to get the sample done



Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Big order: 5-10 working days

Customized order: 10-15 working days
