600V UL758 PVC Sheathed Cable OD 10.66mm 105C UL1015 Pvc Flexible Cable

Place of Origin Guangdong
Brand Name Mysun
Certification UL/cUL/CCC/CE/RoHS/SGS
Model Number UL1015
Minimum Order Quantity 3050 meters
Price Negotiable
Packaging Details 305/610 Meters per Roll / 7 Rolls per Carton or can be customized
Delivery Time 7-10 Working Days
Payment Terms L/C, D/A, T/T, Western Union,Paypal,HSBC
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation PVC Conductor Tinned Copper Wire
OD 1.90-10.66mm Max.Cond Resistance 0.56-381Ω/KM
Rated Voltage 600V Rated Temperature 105℃
Standard UL758 Flammability Rating VW-1/FT-1/ -LF-/-HF-
Color 8 Colors / Can Be Customized Application Home Appliance,industrial Machines And Others
Package 305M/Roll Original Of Place China
Size 2-30AWG
High Light

600V UL758 PVC Sheathed Cable

,

PVC Sheathed Cable OD 10.66mm

,

105C UL1015 Pvc Flexible Cable

Leave a Message
Product Description

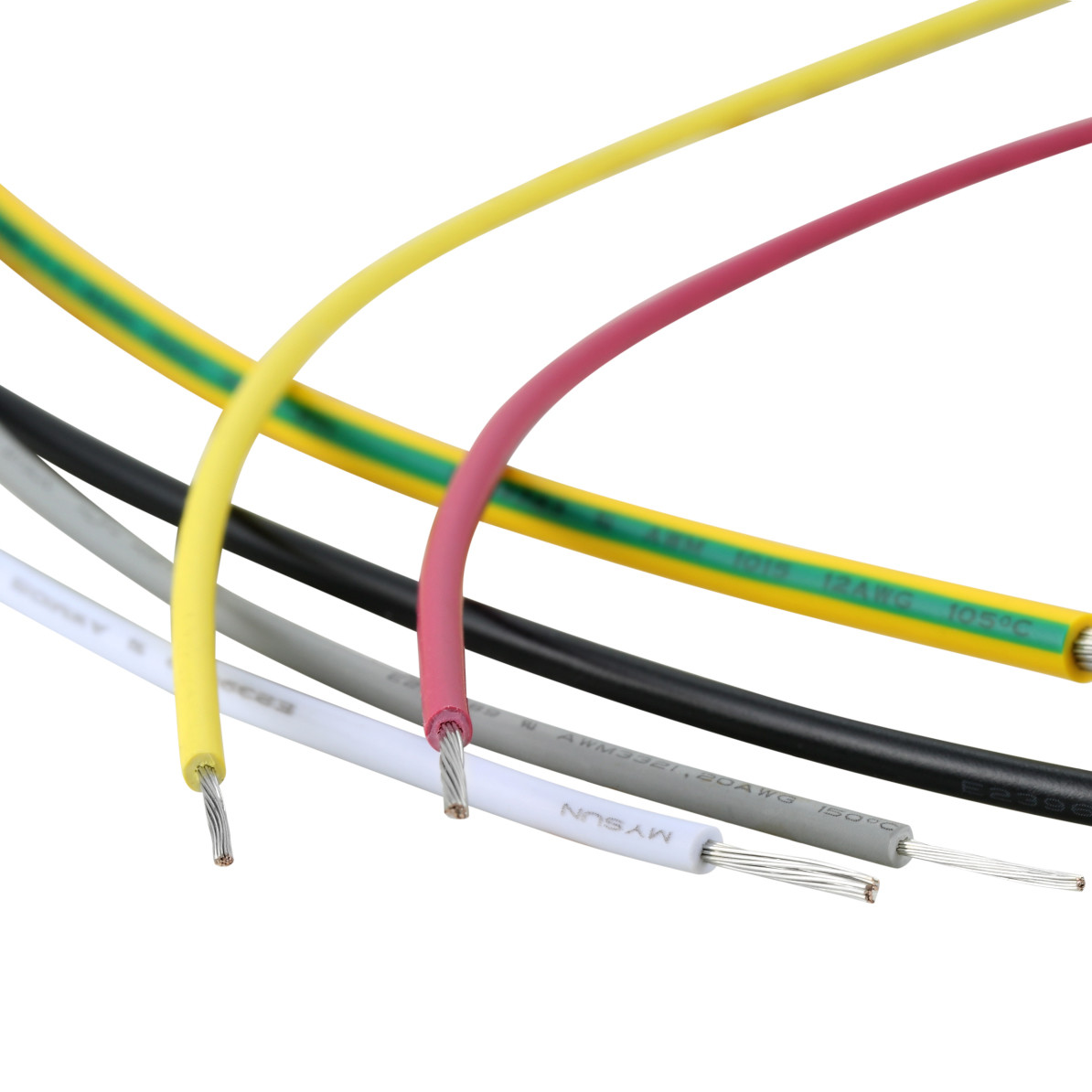

OD 10.66mm PVC Sheathed Cable UL758 UL1015 Tinned Copper for home appliance





Product Description

Specifications:

Nominal voltage: 600V

Temperature range: 105C

Standard: UL 758

Insulation: XLPVC

Conductor: tinned copper wire

Application:Widely used in home appliance,lighting,heater,motor&generator,UAV,robot,industrial power etc.



Product dimensions:



Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM) (M)(Ft)
30 7/0.10 0.30 0.80 1.90 347 305/1000
28 7/0.127 0.38 1.98 218
26 7/0.16 0.48 2.08 138
24 11/0.16 0.61 2.21 85.9
22 17/0.16 0.76 2.36 54.3
20 21/0.18 0.95 2.55 33.9
18 34/0.18 1.21 2.81 21.4
16 26/0.254 1.50 3.10 13.5
14 41/0.254 1.89 3.49 8.45
12 65/0.254 2.37 3.97 5.31
10 105/0.254 3.02 4.62 3.343
9 133/0.254 3.39 4.99 2.652
8 133/0.280 3.75 1.15 6.05 2.102
6 84/0.45 4.79 1.53 7.85 1.323
4 133/0.45 6.02 9.08 0.8315
2 212/0.45 7.60 10.66 0.5231

FAQ



DSC_3361

FAQ



1.Do you accept partial shipment?

Yes, partial shipment is accepted. But the freight shall be covered by yourself.



2.When the goods have quality problem, will you send us the replacement?

If the cable has quality problem, please send us the details, like the quantity of defective cable, pictures and labels.

When we confirm it, the replacement will be shipped together with your next order.



3.Can I order the cable which is lower than your MOQ?

First, we will check the inventory. If it is in stock, sure, it is ok. But if it was out of stock. When your quantity is closed to our MOQ, it is ok.

If it is much less than our MOQ, we will take it as a sample order, so the price will be a little bit higher.



Product Display
















Packaging & Shipping



600V UL758 PVC Sheathed Cable OD 10.66mm 105C UL1015 Pvc Flexible Cable 14



Service

Packaging : Hard cardboard carton ( Customizable)

Shipment:
1. by express
2. by sea

3. by air plane

If you have your own shipper,you can tell me in advance.

My targert is to give my best serivce for you and hope we can have a good cooperation!


Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days





FAQ:



1, What’s the MOQ?

One roll. 100M/200M/300M/305M/500M/Roll.



2, How to get the samples?

We have most of the commonly used samples in Stock.

We can offer the free samples immediately.



3, What’s the payment terms?

LC, TT, Western Union, Money Gram and PayPal



4, What’s the delivery date?

Most of the commonly used products are in Stock. We can arrange it within one day.

We will arrange the delivery date as your requirement while the Bulk Production.



5, How to visit your factory/company?

We are located in Dongguan City, Guangdong Province, closed to Shenzhen,Guangzhou and Hong Kong. Only one and a half hours drive away. Convenient for visit.
