UL1015 2AWG PVC Insulated Copper Wire FT1 VDE Stranded Conductor

Place of Origin Guangdong,China
Brand Name Mysun
Certification UL/cUL/CCC/CE/RoHS/SGS
Model Number UL1015
Minimum Order Quantity 3050meters
Price 0.06~0.52USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Color Black
Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc Rated Voltage 600v
Rated Temperature 105C Size 2AWG
Conductor Tinned Copper Certification ROHS/CCC/VDE/CCC/ISO9001:2008
Standard UL758 Insulation PVC
Type Insulated Max.Cond Resistance 0.56Ω/KM
Construction 212/0.450
High Light

UL1015 PVC Insulated Copper Wire

,

2AWG PVC Insulated Copper Wire

,

VDE Pvc Jacket Cable

Leave a Message
Product Description

PVC Insulated Copper Wire UL1015 2AWG FT1 600V tinner copper



UL1015 Specifications:

Nominal voltage:600V

Temperature range: 125℃

Standard: UL1015

Insulation:PVC

Conductor: Tinner copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.




Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
(Ω/KM) (M)(Ft)
30 7/0.10 0.30 0.80 1.90 347 305/1000
28 7/0.127 0.38 1.98 218
26 7/0.16 0.48 2.08 138
24 11/0.16 0.61 2.21 85.9
22 17/0.16 0.76 2.36 54.3
20 21/0.18 0.95 2.55 33.9
18 34/0.18 1.21 2.81 21.4
16 26/0.254 1.50 3.10 13.5
14 41/0.254 1.89 3.49 8.45
12 65/0.254 2.37 3.97 5.31
10 105/0.254 3.02 4.62 3.343
9 133/0.254 3.39 4.99 2.652
8 133/0.280 3.75 1.15 6.05 2.102
6 84/0.45 4.79 1.53 7.85 1.323
4 133/0.45 6.02 9.08 0.8315
2 212/0.45 7.60 10.66 0.5231



Our Product

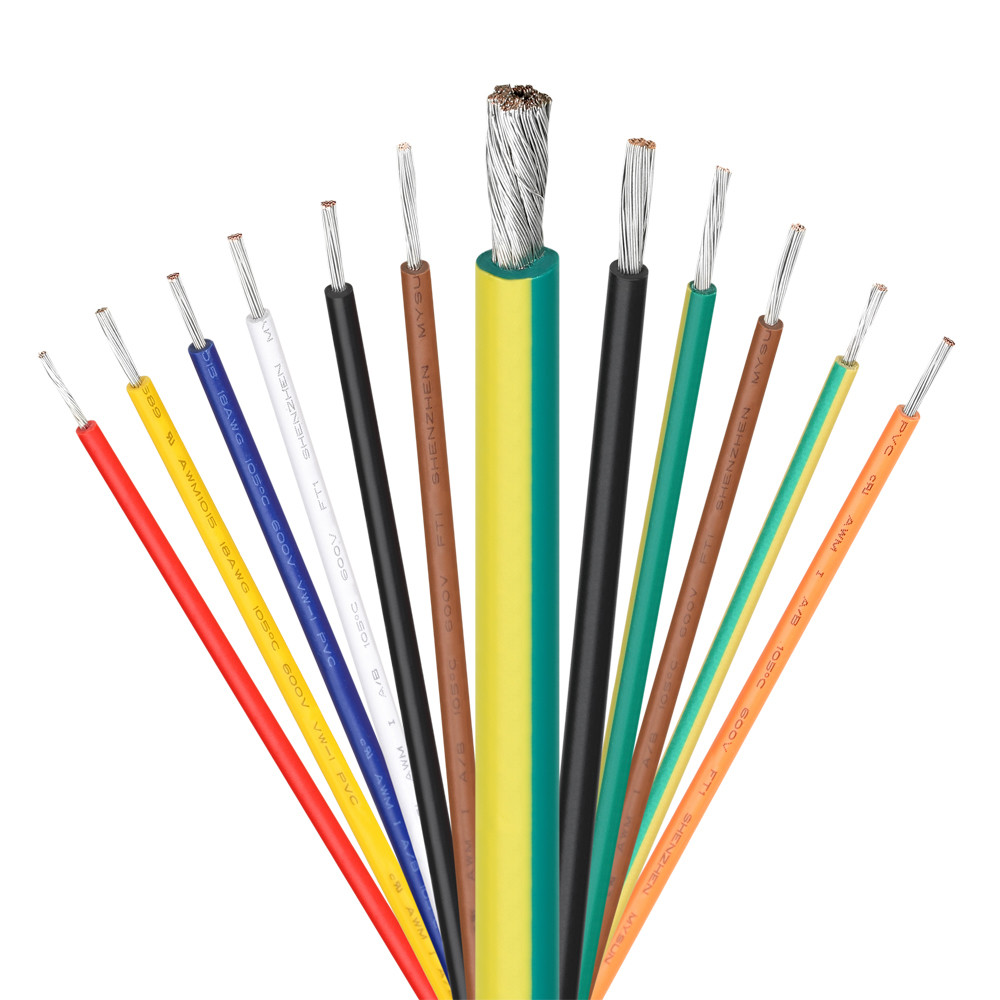

UL1015 2AWG PVC Insulated Copper Wire FT1 VDE Stranded Conductor 0



Product Description



UL1015 2AWG PVC Insulated Copper Wire FT1 VDE Stranded Conductor 1

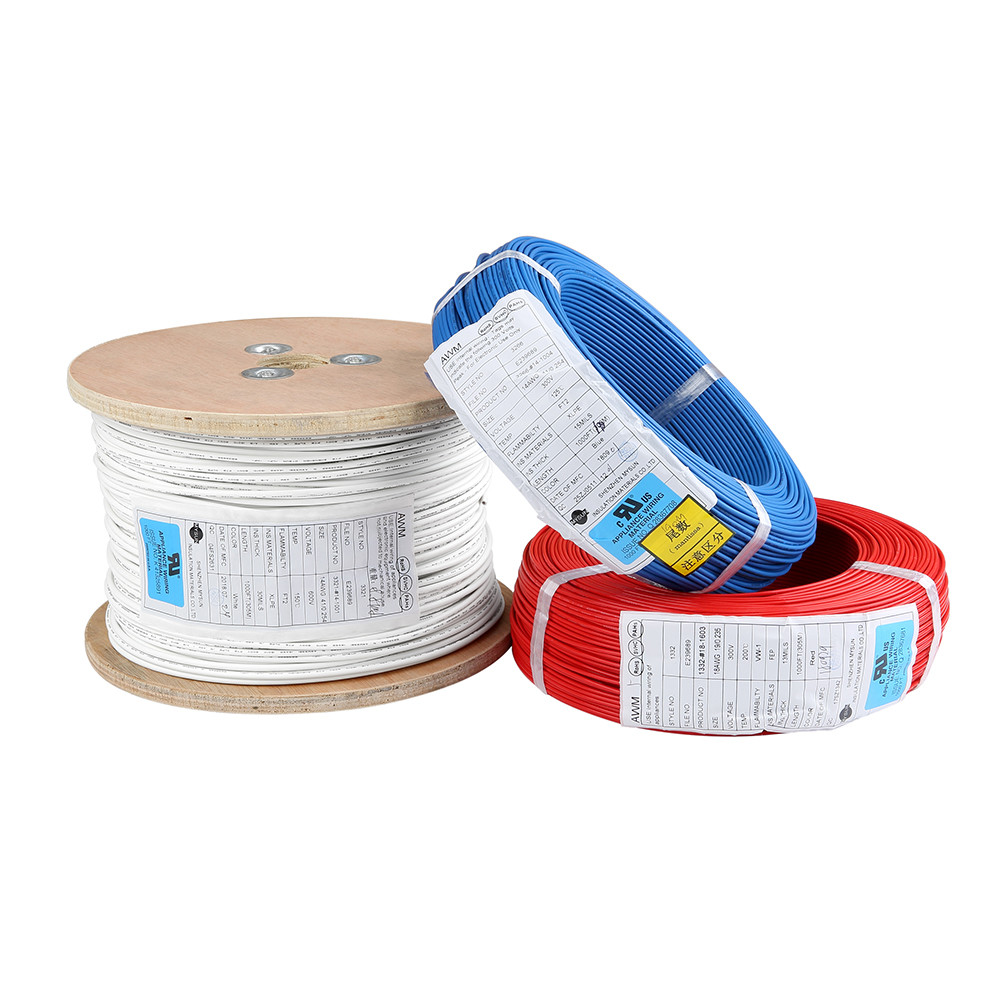

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



UL1015 2AWG PVC Insulated Copper Wire FT1 VDE Stranded Conductor 2
