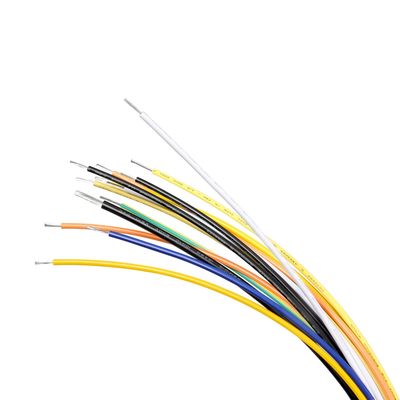

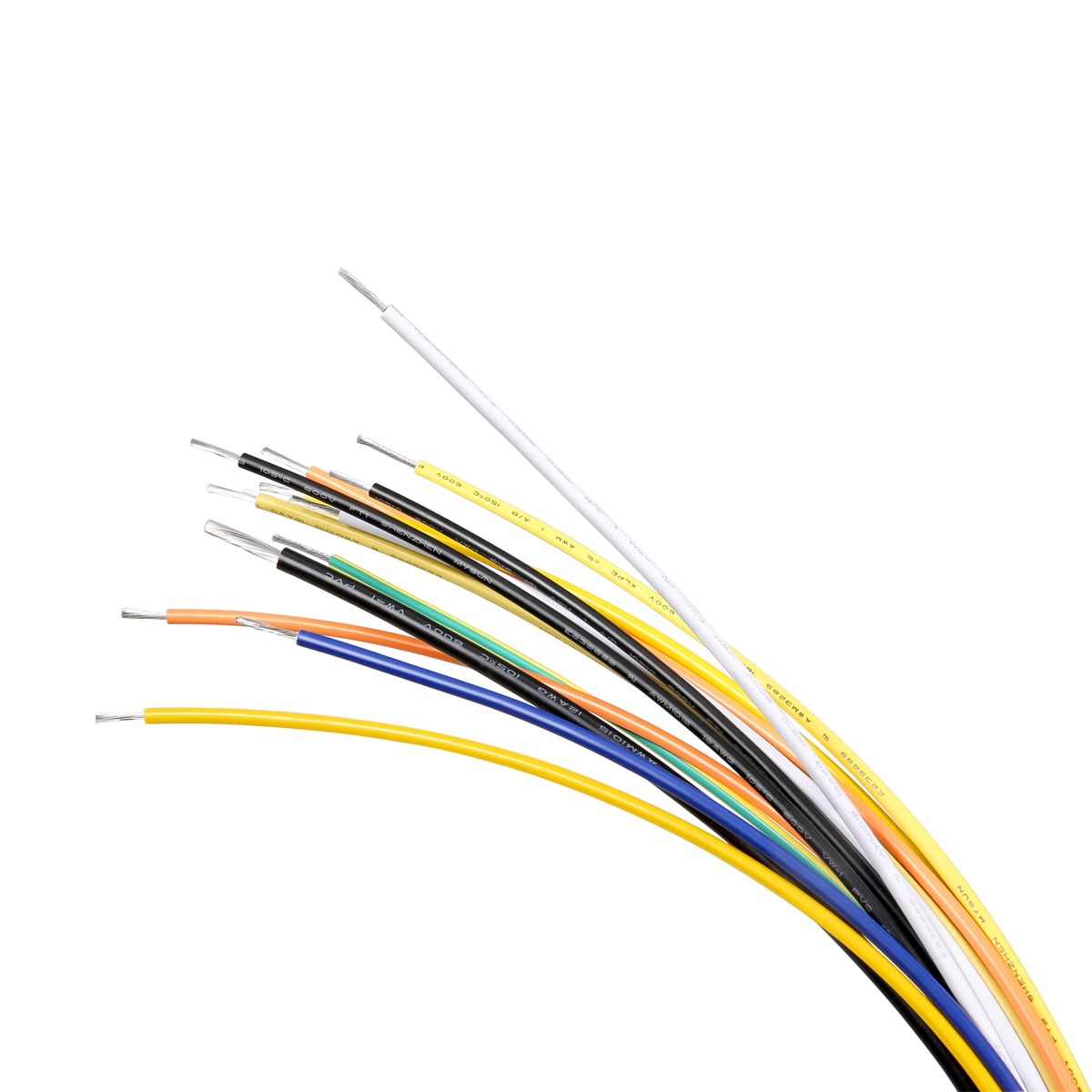

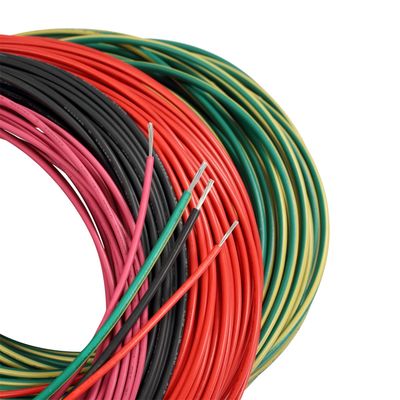

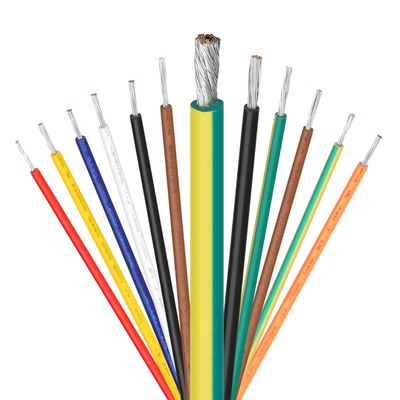

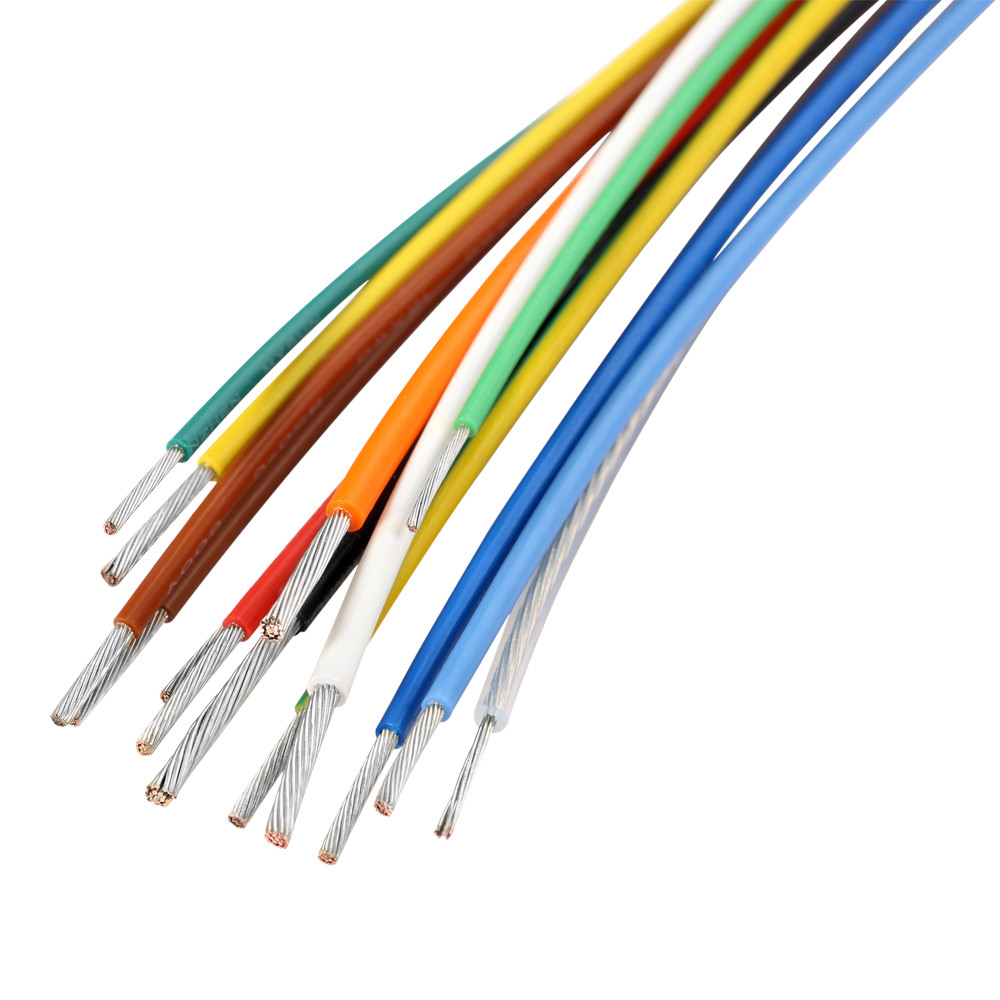

300V UL1007 PVC Insulated Electric Wire Tinned Copper Conductor 305M/ roll

  • 300V UL1007 PVC Insulated Electric Wire Tinned Copper Conductor 305M/ roll
  • 300V UL1007 PVC Insulated Electric Wire Tinned Copper Conductor 305M/ roll
  • 300V UL1007 PVC Insulated Electric Wire Tinned Copper Conductor 305M/ roll
  • 300V UL1007 PVC Insulated Electric Wire Tinned Copper Conductor 305M/ roll
Place of Origin GuangDong,China
Brand Name MYSUN
Certification UL
Model Number UL1007
Minimum Order Quantity 3050meter
Price USD+0.02-0.67+$
Packaging Details 100m/roll,305m/roll
Delivery Time 7-15days
Payment Terms T/T, Western Union, L/C
Supply Ability 800000+Meter+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number UL1007 Application Internal Wireing For Appliance Etc.
Conductor Type Stranded Insulation Material PVC
Rated Temperature 80C Rated Voltage 300V
Colors White Yellow Green Black Blue Red Conductor Materials Tinned Copper
Package 305M/roll Diameters 0.24-1.50mm
High Light

UL1007 PVC Insulated Electric Wire

,

300V PVC Insulated Electric Wire

,

305M/ Roll Pvc Insulated Cables
Leave a Message
Product Description

Tinned Copper Stranded Conductor Single Core Electrical wires and cables UL1007



Technical Data:

*Insulation:PVC

*Rated Voltage:300V

*Rated Temperature Range:80℃

*Insulation thickness:0.40mm

*Conductor:Tin-coated Copper Strand Wires



Characteristic:



PVC insulated material,excellent heat resistance and mechanical characters,easy stripping & cutting.

Resistance acids,alkalis,oils,moisture and mildew.



Product Demension:

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
32 7/0.08 0.24 0.38 1.00 542 610/2000
30 7/0.10 0.30 1.06 347
28 7/0.127 0.38 1.14 218
26 7/0.16 0.48 1.24 138
24 11/0.16 0.61 1.37 85.9 305/1000
22 17/0.16 0.76 1.52 54.3
20 21/0.18 0.95 1.71 33.9
18 34/0.18 1.21 1.97 21.4
16 26/0.254 1.50 2.26 13.5
