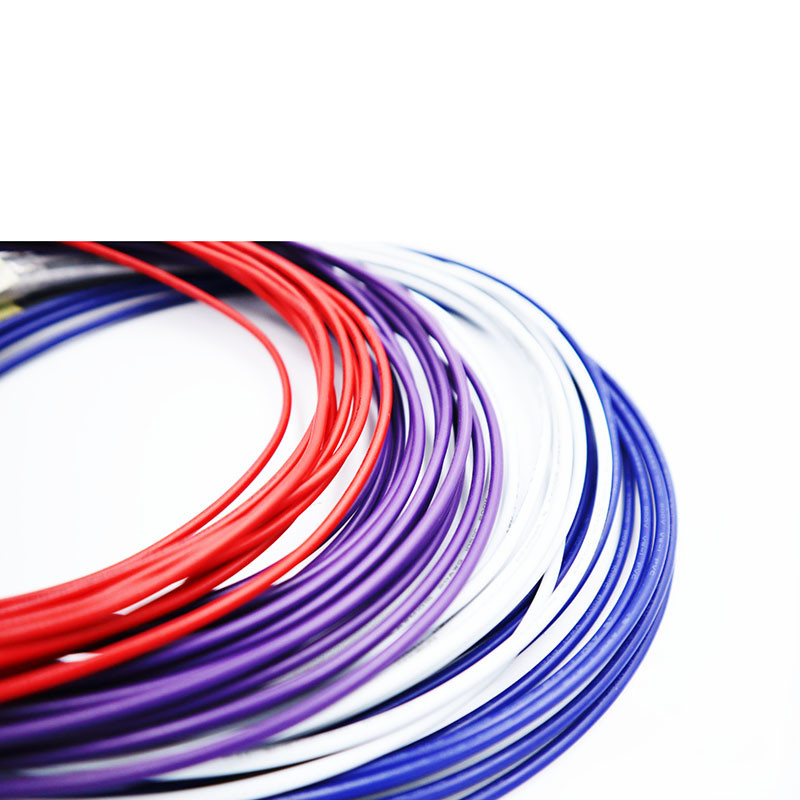

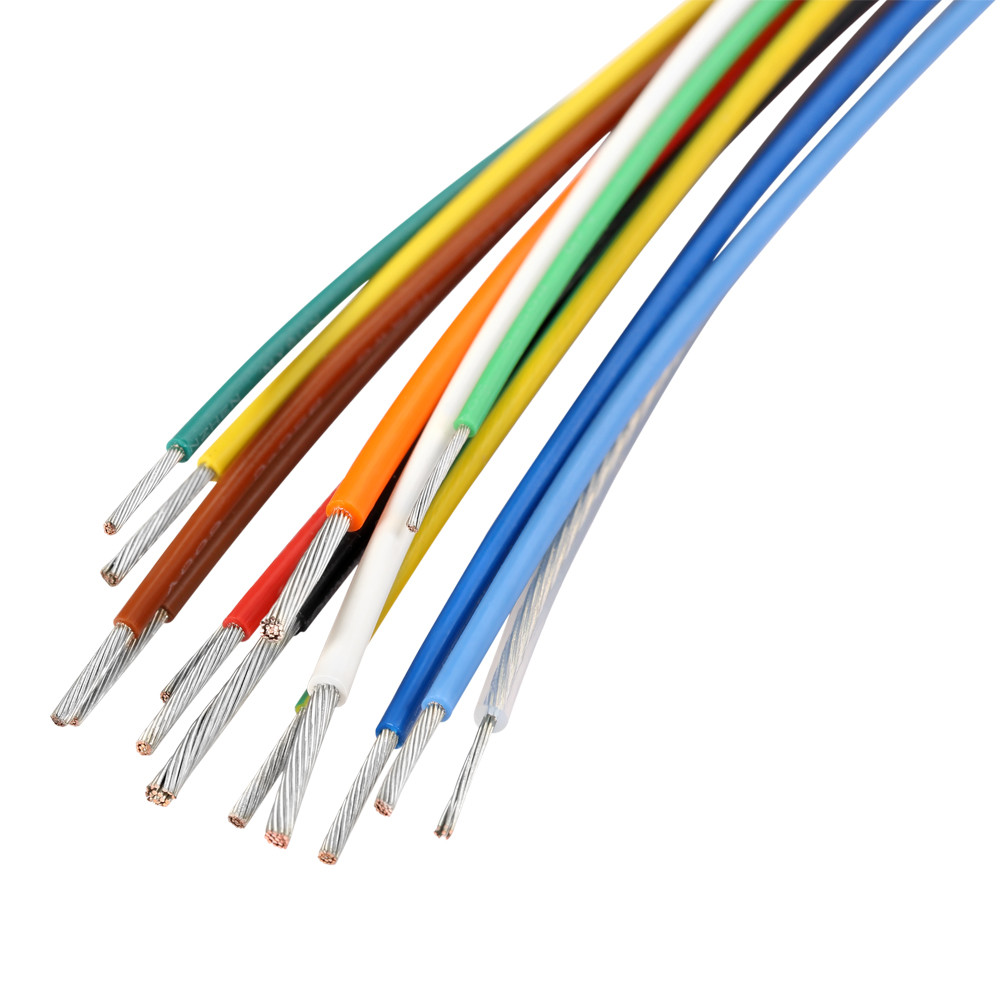

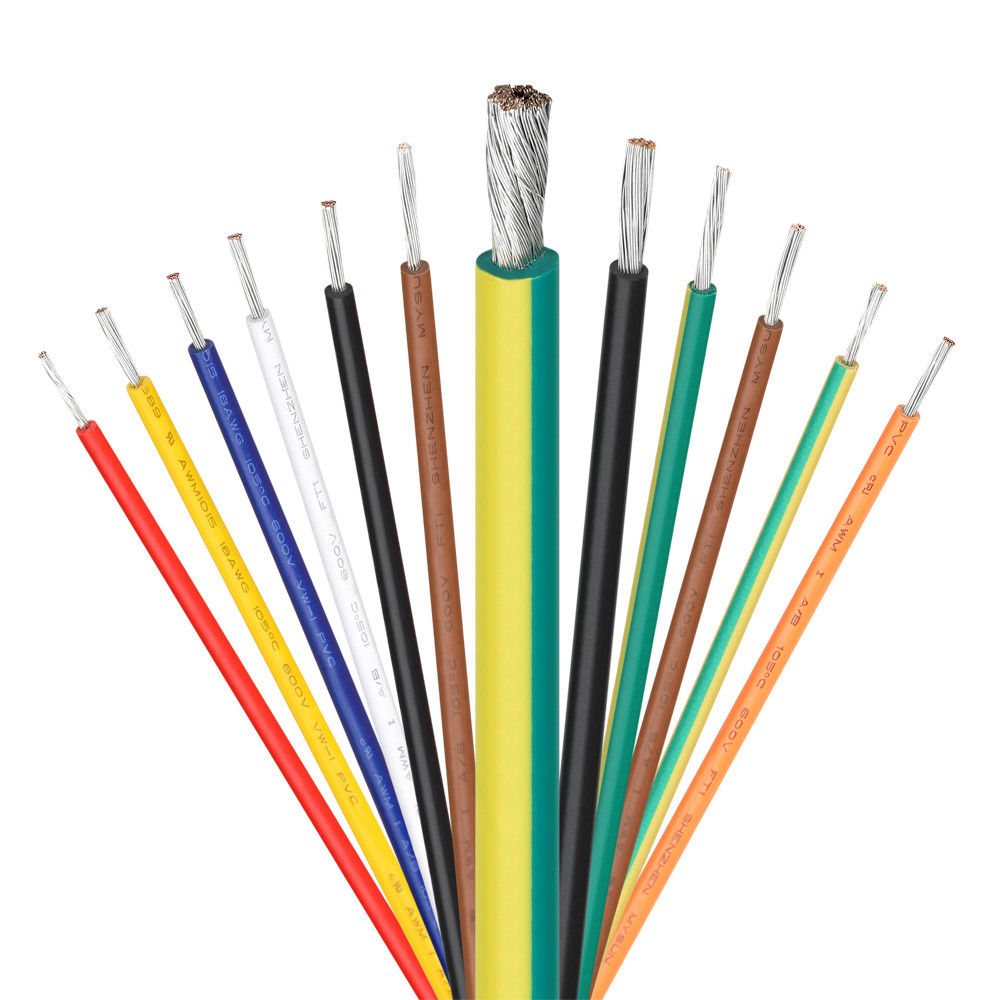

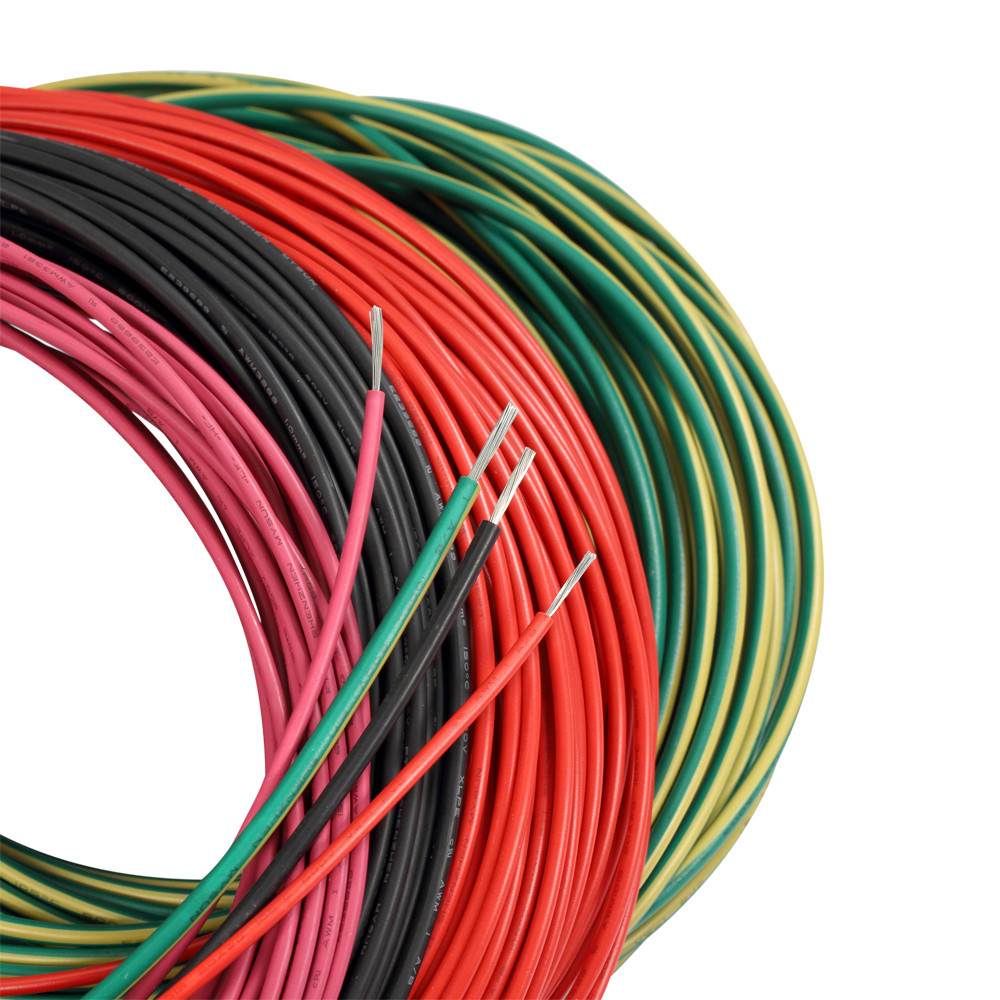

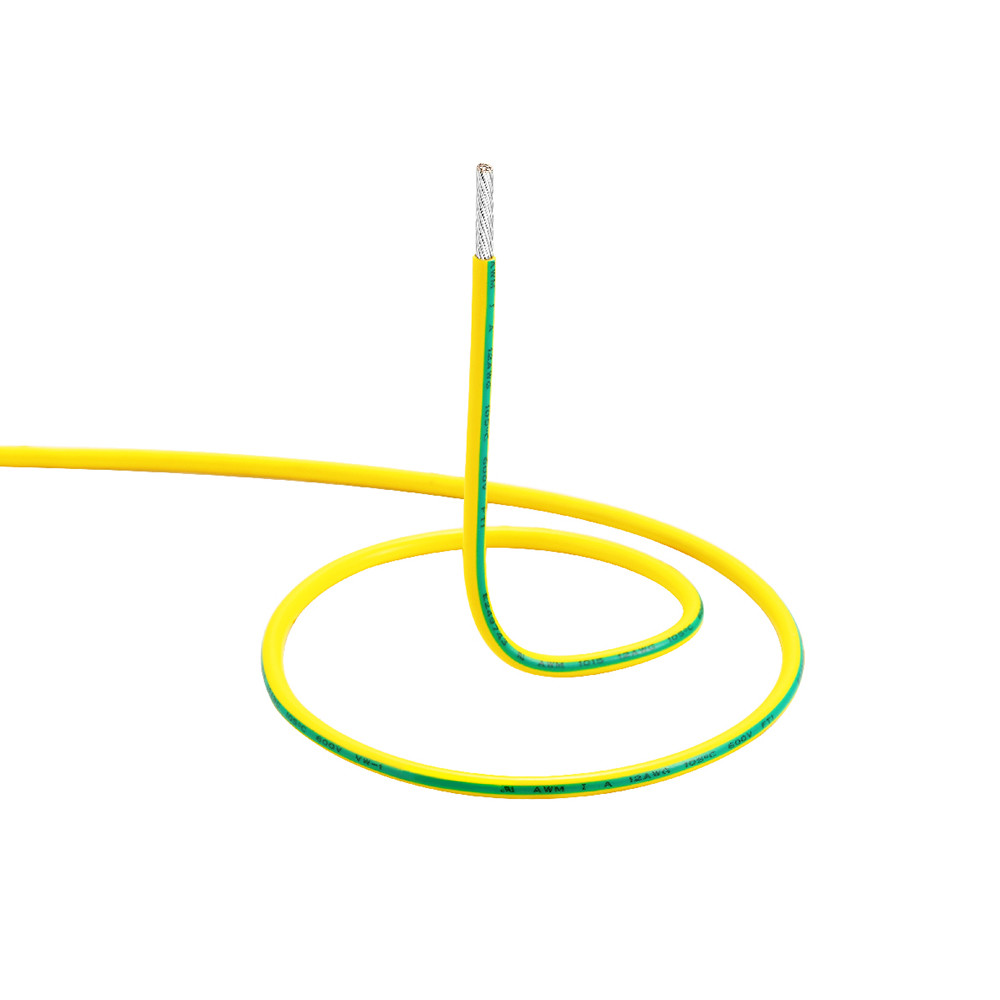

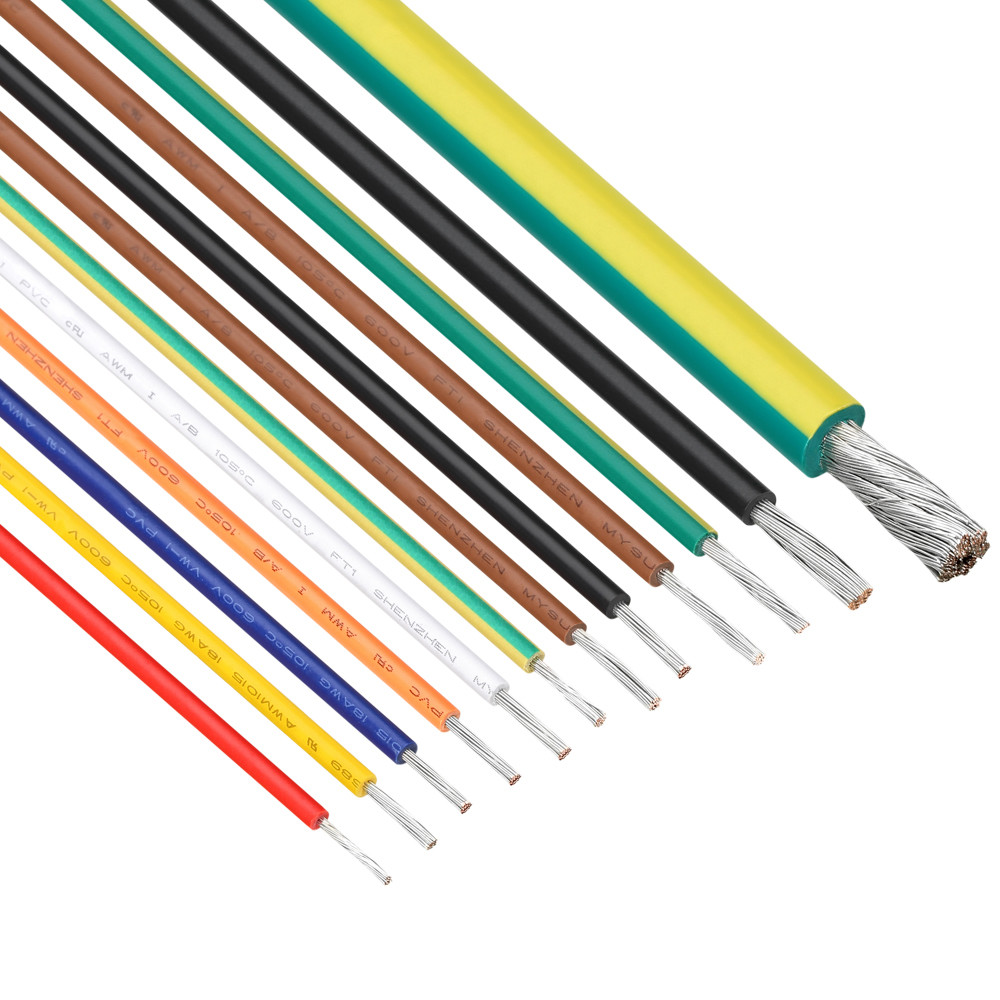

UL1007 16-32AWG 300V Tinned Copper PVC Wire Stranded Conductor

  • UL1007 16-32AWG 300V Tinned Copper PVC Wire Stranded Conductor
  • UL1007 16-32AWG 300V Tinned Copper PVC Wire Stranded Conductor
  • UL1007 16-32AWG 300V Tinned Copper PVC Wire Stranded Conductor
  • UL1007 16-32AWG 300V Tinned Copper PVC Wire Stranded Conductor
  • UL1007 16-32AWG 300V Tinned Copper PVC Wire Stranded Conductor
  • UL1007 16-32AWG 300V Tinned Copper PVC Wire Stranded Conductor
  • UL1007 16-32AWG 300V Tinned Copper PVC Wire Stranded Conductor
Place of Origin GuangDong,China
Brand Name MYSUN
Certification UL
Model Number UL1007
Minimum Order Quantity 3050meter
Price USD+0.02-0.67+$
Packaging Details 100m/roll,305m/roll
Delivery Time 7-15days
Payment Terms T/T, Western Union, L/C
Supply Ability 800000+Meter+per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number UL1007 Application Internal Wireing For Appliance Etc.
Conductor Type Stranded Insulation Material PVC
High Light

32AWG Tinned Copper PVC Wire

,

300V Tinned Copper PVC Wire

,

Stranded Conductor Pvc Xlpe Cable
Leave a Message
Product Description

Tinned Copper Stranded Conductor Single Core Electrical wires and cables UL1007



Technical Data:

*Insulation:PVC

*Rated Voltage:300V

*Rated Temperature Range:80℃

*Insulation thickness:0.40MM

*Conductor:Tin-coated Copper Strand Wires



Characteristic:



PVC insulated material,excellent heat resistance and mechanical characters,easy stripping & cutting.

Resistance acids,alkalis,oils,moisture and mildew.



Product Demension:

Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
32 7/0.08 0.24 0.38 1.00 542 610/2000
30 7/0.10 0.30 1.06 347
28 7/0.127 0.38 1.14 218
26 7/0.16 0.48 1.24 138
24 11/0.16 0.61 1.37 85.9 305/1000
22 17/0.16 0.76 1.52 54.3
20 21/0.18 0.95 1.71 33.9
18 34/0.18 1.21 1.97 21.4
16 26/0.254 1.50 2.26 13.5





UL1007 16-32AWG 300V Tinned Copper PVC Wire Stranded Conductor 0
