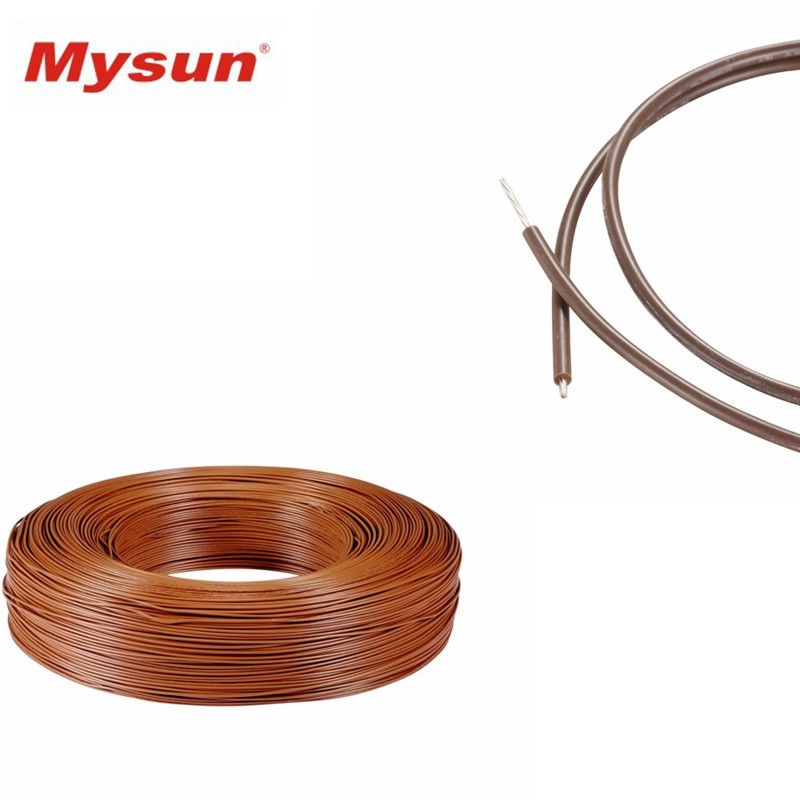

Tinned Copper Wire Pvc Power Cable , packing insulated wire

  • Tinned Copper Wire Pvc Power Cable , packing insulated wire
  • Tinned Copper Wire Pvc Power Cable , packing insulated wire
  • Tinned Copper Wire Pvc Power Cable , packing insulated wire
  • Tinned Copper Wire Pvc Power Cable , packing insulated wire
  • Tinned Copper Wire Pvc Power Cable , packing insulated wire
Place of Origin Guangdong
Brand Name Mysun
Certification UL/cUL/CCC/CE/RoHS/SGS
Model Number UL1015
Minimum Order Quantity 3050/6100 meters
Price Negotiable
Packaging Details 305/610 Meters per Roll / 7 Rolls per Carton or can be customized
Delivery Time 7-10 Working Days
Payment Terms L/C, D/A, T/T, Western Union,Paypal,HSBC
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Item PVC Insulated Copper Wire Conductor Tinned Copper Wire
OD 1.90-10.66 Mm Max.Cond Resistance 0.5231-347 Ω/KM
Rated Voltage 600V Rated Temperature 105℃
Color 8 Colors / Can Be Customized Application Home Appliance,industrial Machines And Others
Package 305/610 Meters Per Roll Insulation PVC
High Light

plastic coated copper wire

,

pvc insulated flexible wire
Leave a Message
Product Description

PVC insulated copper wire



Specifications:

Nominal voltage:600V

Temperature range: 105℃

Standard: UL 758

Insulation: PVC

Conductor: Tinned copper wire



Product features:

PVC insulated copper wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.



Product dimensions:



Conductor Insulation Max.cond
resistance
(Ω/km)		 Unit Length
(m)(Ft)
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Inside thickness(mm) Diameter
(mm)
30 7/0.100 0.30 0.80 1.90 347 305/1000
28 7/0.127 0.38 0.80 1.98 218 305/1000
26 7/0.160 0.48 0.80 2.08 138 305/1000
24 11/0.160 0.61 0.80 2.21 85.9 305/1000
22 17/0.160 0.76 0.80 2.36 54.3 305/1000
20 21/0.180 0.95 0.80 2.55 33.9 305/1000
18 34/0.180 1.21 0.80 2.81 21.4 305/1000
16 26/0.254 1.50 0.80 3.10 13.5 305/1000
14 41/0.254 1.89 0.80 3.49 8.45 305/1000
12 65/0.254 2.37 0.80 3.97 5.31 305/1000
10 105/0.254 3.02 0.80 4.62 3.343 305/1000
9 133/0.254 3.39 0.80 4.99 2.652 305/1000
8 133/0.280 3.75 1.15 6.05 2.102 305/1000
6 84/0.450 4.79 1.53 7.85 1.323 305/1000
4 133/0.450 6.02 1.53 9.08 0.8315 305/1000
2 212/0.450 7.06 1.53 10.66 0.5231 305/1000



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Product shoot:

Tinned Copper Wire Pvc Power Cable , packing insulated wire 0Tinned Copper Wire Pvc Power Cable , packing insulated wire 1









QNH76117-b--20170321_01--20170321_08--20170321_09--20170321_02--20170321_04



Service

Packaging : Hard cardboard carton ( Customizable)

Shipment:
1. by express
2. by sea

3. by air plane

If you have your own shipper,you can tell me in advance.

My targert is to give my best serivce for you and hope we can have a good cooperation!


Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days





FAQ:



1, What’s the MOQ?

One roll. 100M/200M/300M/305M/500M/Roll.



2, How to get the samples?

We have most of the commonly used samples in Stock.

We can offer the free samples immediately.



3, What’s the payment terms?

LC, TT, Western Union, Money Gram and PayPal



4, What’s the delivery date?

Most of the commonly used products are in Stock. We can arrange it within one day.

We will arrange the delivery date as your requirement while the Bulk Production.



5, How to visit your factory/company?

We are located in Dongguan City, Guangdong Province, closed to Shenzhen,Guangzhou and Hong Kong. Only one and a half hours drive away. Convenient for visit.



Tags:

plastic coated copper wire

pvc insulated cable

pvc insulated flexible wire
