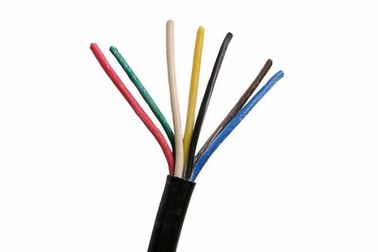

Multi Core 4*18 Awg Custom Electrical Wire High Voltage Resistance UL4271

  • Multi Core 4*18 Awg Custom Electrical Wire High Voltage Resistance UL4271
  • Multi Core 4*18 Awg Custom Electrical Wire High Voltage Resistance UL4271
  • Multi Core 4*18 Awg Custom Electrical Wire High Voltage Resistance UL4271
Place of Origin China
Brand Name MYSUN
Model Number UL 4271
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m/roll
Payment Terms T/T
Supply Ability 50,000m/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/UL/CCC/VDE/CCC/SGS/ISO9001:2008 Rated Voltage 600V
Rated Temperature 200℃ Conductor Tinned Copper Wire
Insulation Silicone Rubber Application Home Appliance, Headlamp, Industrial Machine, Electro Thermal Products.
Color Customized Name High Temperature Cable
Size 14,16,18awg Flame Test FT-2
High Light

flexible multicore cable

,

industrial electric wire and cable
Leave a Message
Product Description



 flexible UL 4271 Silicone Rubber Insulated Wire

specifications


Retad voltage 600V
Retad temperature 200°C
Insulation silicone rubber
Conductor tinned copper wire
Standards UL 758
size awg14,16,18
M/FT 305/1000
Color

white,black,red,brown,yellow,blue,green,transparent etc.


APPLICATION:

Wiring of hearting elements,cartrides,bands,bands and hot plates.
Domestic electrical hearting appliances,professional kitchens and ovens.
Machine for thermoplastice and rubber,etc..Furnaces and industrical ovens.

product dimensions


CONDUCTOR INSULATION JACKET DIAMETER (mm)
SIZE (AWG) CONSTRUCTION (NO./mm) DIAMETER (mm) NOMINAL THICKNESS (mm) OUTER GARMENT THICKNESS(mm)
2×18 7/0.39 1.17 0.78 ≥1.00 7.50-9.00
2×16 7/0.49 1.47 0.78 ≥1.00 8.00-9.50
2×14 41/0.254 1.89 0.78 ≥1.00 9.00-10.50
3×18 7/0.39 1.17 0.78 ≥1.00 7.50-9.00
3×16 7/0.34 1.47 0.78 ≥1.00 8.00-9.50
3×14 41/0.254 1.89 0.78 ≥1.00 9.00-10.50
4×18 7/0.39 1.17 0.78 ≥1.00 8.50-10.00
4×16 7/0.49 1.47 0.78 ≥1.00 9.00-10.50
4×14 41/0.254 1.89 0.78 ≥1.00 10.00-11.50



Industrial Applications that Use Silicone Insulated Wires
Silicone insulated wires are used for a variety of industrial applications due to the above mentioned advantageous properties.
The below mentioned industrial applications make the best use of these insulated wires.

Internal Wiring of Home Appliances and Industrial Applications:
Silicone insulated wires are ideal for flexible applications, and is used for internal wiring of industrial heating appliances,
hot-rolling mills, textile machines, industrial ovens, etc.

High Voltage Cable Assemblies:
Today, many cable assembly manufacturers prefer using silicone cables over regular cheap cable assemblies.
Additionally, these wires have a dielectric strength of 550vpm, high insulation resistance, and excellent dielectric constant of 3-3.5.
These characteristics make these wires good electrical insulators, and are ideal for high voltage cable assemblies as well.

RoHS Compliant Applications:
As silicone rubber is a non-toxic substance, it is ideal for RoHS compliant applications.
This is also the reason why silicone insulated wires are used in various medical applications.


Multi Core 4*18 Awg Custom Electrical Wire High Voltage Resistance UL4271 0
Multi Core 4*18 Awg Custom Electrical Wire High Voltage Resistance UL4271 1

Multi Core 4*18 Awg Custom Electrical Wire High Voltage Resistance UL4271 2

company information

Shenzhen Mysun Insulation Materials Co.Ltd. is a comprehensive enterprise integrated with manufacture,distribution and trade.

We specialized in production of all sorts of wire of high temperature and connecting which have been subjected to tests of UL,cUL,VDE,CE,CCC,SGS and TUV,

and supply enterprises such as home appliance,electronics,lighting,medical unit,communication and office equipment with connecting wiring harness and processing service.



With the development and devote us into special materials field as an expert, our product lines are now covering:



1) FEP/PFA/ETFE/PTFE wires;

2) Silicone rubber wires;

3) XLPE wires;

4) Special electrical wires;

5) PVC&XLPVC wires;

6) High temperature insulation tubing;

7) wiring harnesses.



"Quality is guarantee forexistence" is the guideline the the company always upholds.To realize own value and servethe society is our target and also our advancing power.


Service:
Shipment:
1. by express
2. by sea

Payment terms:
LC, TT, Western Union, Money Gram and PayPal

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
