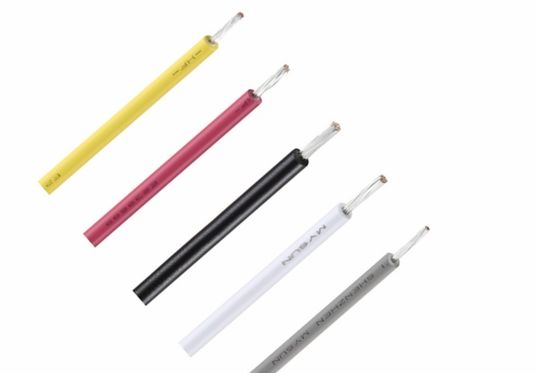

16 awg 600V 105C UL1015 PVC Insulated Copper Wire Hook Up Cable

Place of Origin China
Brand Name MYSUN
Certification UL
Model Number UL1015
Minimum Order Quantity 5000 pcs
Price Negotiable
Packaging Details 305m/roll
Payment Terms T/T
Supply Ability 50,000/day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 600V Rated Temperature 105℃
Insulation PVC Conductor Tinned Copper
Standard UL758 Appliance Internal Wire Of Electronic Equipment
Color Customized Name Lead Wire
Flame Test VW-1
High Light

pvc insulated cable

,

pvc insulated flexible wire

Leave a Message
Product Description

UL1015 pvc insulated copper wire



Specifications:

Nominal voltage: 600V

Temperature range: 105C

Standard: UL 758

Conductor: Tinned copper

Insulation: PVC



Product dimensions:

Conductor Insulation Max.cond
resistance
(Ω/km)
Unit Length
(m)(Ft)
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Diameter
(mm)
30 7/0.10 0.30  0.80  1.90  347 305/1000
28 7/0.127 0.38  1.98  218
26 7/0.16 0.48  2.08  138
24 11/0.16 0.61  2.21  85.9
22 17/0.16 0.76  2.36  54.3
20 21/0.18 0.95  2.55  33.9
18 34/0.18 1.21  2.81  21.4
16 26/0.254 1.50  3.10  13.5
14 41/0.254 1.89  3.49  8.45
12 65/0.254 2.37  3.97  5.31
10 105/0.254 3.02  4.62  3.343
9 133/0.254 3.39  4.99  2.652
8 133/0.280 3.75  1.15  6.05  2.102
6 84/0.45 4.79  1.53  7.85  1.323
4 133/0.45 6.02  9.08  0.8315
2 212/0.45 7.60  10.66  0.5231



Application:
Used as internal wiring for appliances and electrical and electronic equipment.
Also used for wiring and cable assemblies in data and electronic equipment.
PVC applications include motors, transformers, fluorescent ballasts and fixtures, switchboards, panels,

controls, rectifiers and electronic circuits.



UL1015 introduce:

UL1015 wire is constructed single or stranded tinned or bare copper and lead-free pvc insulation.

It resists acid, alkali, moisture , mould proofing. The insulation lay is easy to peel and cut off.

With the rated voltage 600v and the rated temperature 80℃,90℃ or 105℃.

this products meet the standard of UL758, UL1581.

UL1015 is suitable for internal wiring of computers and electric equipment exposed to the oil

with the temperature not exceeding 60℃ or 80℃.



PVC material feature

The resistance to flames, oils and chemicals make pvc insulated cables ideal for a variety of

different applications including low power and controlled uses.

Excellent flexibility properties, good resistance to temperature fluctuations and environmental c

onditions along with comparative low costs to other materials make pvc cables the preferred

choice for cable insulation and jackets.



Our factory

16 awg 600V 105C UL1015 PVC Insulated Copper Wire Hook Up Cable 0

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds of UL, cUL, CSA, VDE, CCC, RoHS, REACH certified high temperature wire and cable. For home appliances, lighting, medical equipment, office facilities, industrial machine and motors & generators. The company has consistently in accordance with the ISO9001, ISO14001 international standard and IATF16949 auto certification.



certification

16 awg 600V 105C UL1015 PVC Insulated Copper Wire Hook Up Cable 1

Mysun laboratory

16 awg 600V 105C UL1015 PVC Insulated Copper Wire Hook Up Cable 2

Good equipment lays a firm foundation for good products.Mysun has full set of test equipments, such as flame test chamber, aging
test machine, grinding test machine, abrasion resistance test machine, low temperature winding machine, air ventilation climatic
test chamber, high voltage tester, printing hardness fastness tester, projector, high temperature furnace and so on.
.



Service:

Shipment:

1. by express

2. by sea



Payment terms:

LC, TT, Western Union, Money Gram and PayPal



Delivery:

Sample order: 1-3 working days

Customized order: 10-15 working days
