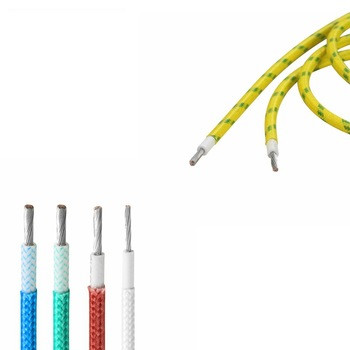

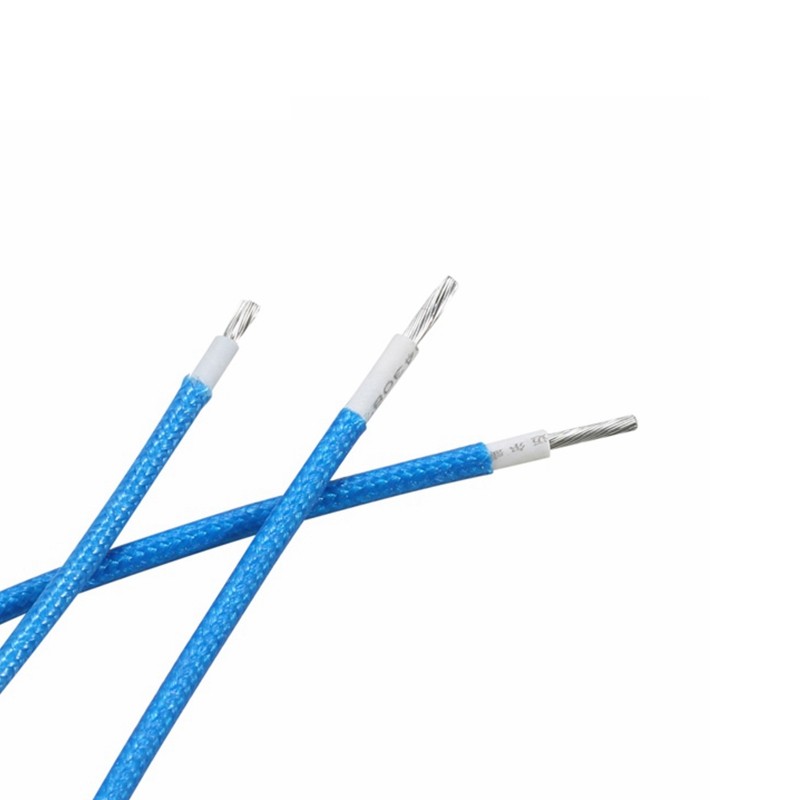

UL3122 200C Silicone Rubber Insulation Wire Tinned Copper 22AWG

  • UL3122 200C Silicone Rubber Insulation Wire Tinned Copper 22AWG
  • UL3122 200C Silicone Rubber Insulation Wire Tinned Copper 22AWG
  • UL3122 200C Silicone Rubber Insulation Wire Tinned Copper 22AWG
  • UL3122 200C Silicone Rubber Insulation Wire Tinned Copper 22AWG
  • UL3122 200C Silicone Rubber Insulation Wire Tinned Copper 22AWG
  • UL3122 200C Silicone Rubber Insulation Wire Tinned Copper 22AWG
Place of Origin China
Brand Name Mysun
Certification UL
Model Number UL3122
Minimum Order Quantity 1000M
Price USD0.1-2/m
Packaging Details 305m/roll,610m/roll
Delivery Time 5-10 workdays
Payment Terms T/T
Supply Ability 1 million per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Conductor Type Stranded Insulation Material Silicone Rubber Extruded
Conductor Material Tinned Copper Type Insulated
Color Red,Black,blue,yellow,green Rated Voltage 300V
Cross Section 0.75mm2AWG Core Single
Packing 100m/Roll,wooden Drum,1000ft /roll,305m Per Roll Temp Reistance 200 Degree
High Light

UL3122 Silicone Rubber Insulation Wire

,

200C Silicone Rubber Insulation Wire

,

22AWG Tinned Copper Flexible Wire
Leave a Message
Product Description

UL3122 silicone rubber wire

  • Flexibility: silicone rubber insulation with fiberglass braided sleeving
  • Maximum conductor resistance: 24.4 ohm/km
  • Resistant to oil, hot and cold, flexing
  • Rated temperature: -50°C to +200°C
  • Rated voltage: 300 V
  • Insulation potential strength: 2000 VAC/min
  • Passes the FT2 flame test
  • Available in 16AWG, 18 AWG, 20 AWG, and 22AWG



ConductorInsulationMax Cond resistance
(ohms/m)		Unit length
(m)(F)
   3KV6KV10KV20KV30KV
SizeConstructionDiameterNominal ThicknessDiameterNominal ThicknessDiameterNominal ThicknessDiameterNominal ThicknessDiameterNominal ThicknessDiameter
(AWG)(NO./mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)
287x0.120.370.501.370.701.771.002.371.302.971.703.77239610/2000
267x0.150.490.501.490.701.891.002.491.303.091.703.89150610/2000
2414x0.140.600.501.600.702.001.002.601.303.201.704.0094.2610/2000
2222x0.140.760.501.760.702.141.002.761.303.361.704.1659.4305/1000
2032x0.140.910.501.910.702.311.002.911.303.501.704.3136.7305/1000
1852x0.141.170.502.170.702.571.003.171.303.771.704.5723.2305/1000
1652x0.181.500.502.500.702.901.003.501.304.101.704.9014.6305/1000

UL3122 200C Silicone Rubber Insulation Wire Tinned Copper 22AWG 0
