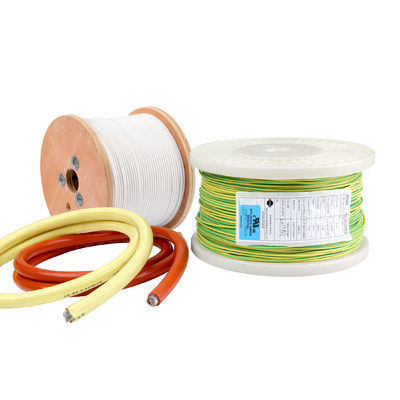

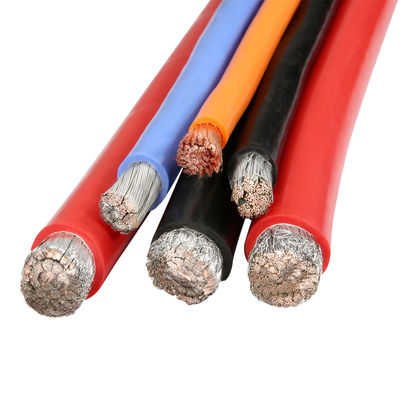

300V Voltage Resistance Silicone Rubber 20 AWG 7/031 Tinned Copper Wires
| Place of Origin | Guangdong，China |
|---|---|
| Brand Name | Mysun |
| Model Number | UL3367 |
| Minimum Order Quantity | 3050meters |
| Price | 0.06~0.325USD per M |
| Packaging Details | Standard packge: cardboard box Accept custom-made. |
| Delivery Time | 7-15 working day |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 500000 Meters per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | ROHS/CCC/VDE/CCC/ISO9001:2008 | Conductor Type | Stranded |
|---|---|---|---|
| Color | Black | Usage | Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc |
| Rated Voltage | 300v | Rated Temperature | 200C |
| Size | 20awg | Conductor | Tinned Copper |
| Standard | UL758 | Insulation | Silicone Rubber |
| Max.Cond Resistance | 36.70Ω/KM | Construction | 7/0.31 |
| High Light | Oil Resistance XLPE Insulation Wire,CCC High Temperature XLPE Wire,Tinned Copper Fiberglass Braided Wire |
||
Product Description
UL3367 Tinned Copper Conductor Wires 300V 18AWG Wires and Cables
UL3367 Specifications:
Nominal voltage:300V
Temperature range: 200℃
Standard: UL3367
Insulation: Silicone Rubber
Conductor: Tinner copper
Insulation Color: Red/Balck/Yellow/Green/Bule/ Yellow&Green
Silicones rubber Insulated Tinner Cooper Silicone Wire
Tinned or bare, strand or solid copper conductor, 20AWG min
Color-coded silicone rubber insulation
Uniform insulation thickness of wire to ensure easy stripping and cutting
Resistant to acid, alkali, oil, moisture and fungi, comforming ULstandard
Product features:
insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,
high voltage resistance, aging resistance, long service life and soft and easy to install.
Product Parameter
Applications:
* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.
|
Conductor
|
Insulation
|
Max.Cond Resistance
|
Unit length
|
|||
|
Size
(AWG) |
Construction
(No./mm) |
Diameter
(mm) |
Nominal Thickness
(mm) |
Diameter
(mm) |
(Ω/KM)
|
(M)(Ft)
|
|
26
|
7/0.16
|
0.48
|
0.45
|
1.38
|
143
|
305/1000
|
|
24
|
7/0.20
|
0.6
|
0.45
|
1.5
|
89.3
|
305/1000
|
|
22
|
7/0.254
|
0.76
|
0.45
|
1.66
|
56.4
|
305/1000
|
|
20
|
7/0.31
|
0.94
|
0.45
|
1.83
|
35.2
|
305/1000
|
|
18
|
7/0.39
|
1.17
|
0.45
|
2.07
|
22.2
|
305/1000
|
|
16
|
7/0.49
|
1.47
|
0.45
|
2.37
|
14
|
305/1000
|
|
14
|
41/0.254
|
1.89
|
0.45
|
2.77
|
8.78
|
305/1000
|
|
12
|
19/0.47
|
2.36
|
0.45
|
3.26
|
5.53
|
305/1000
|
|
10
|
19/0.61
|
3.05
|
0.45
|
3.95
|
3.48
|
305/1000
|
Our Product
Product Description
Package & Delivery
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days
