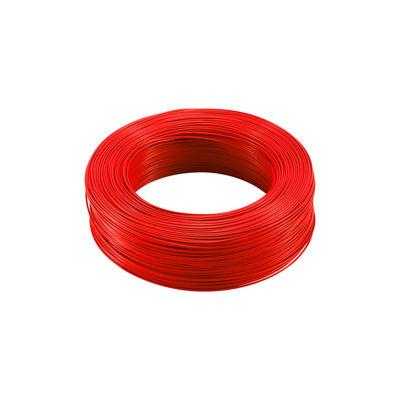

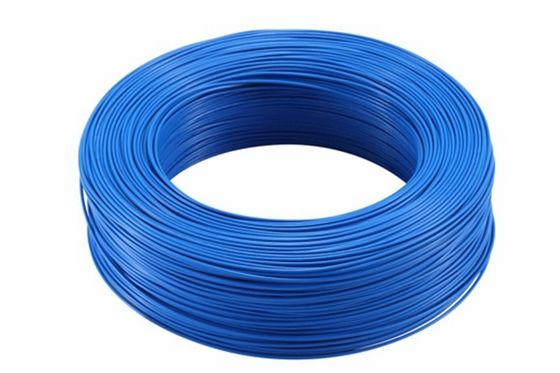

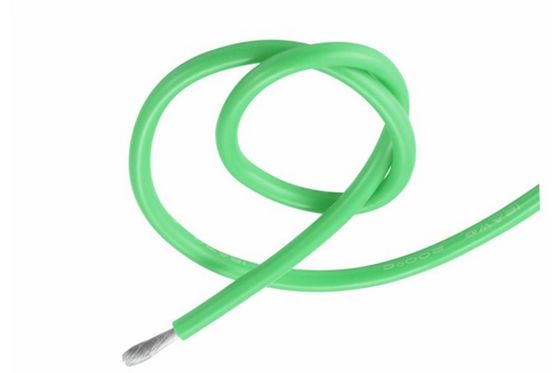

26 AWG High Voltage Silicone Insulated Wire With Stranded Conductor AWM3136

26 AWG High Voltage Silicone Insulated Wire With Stranded Conductor AWM3136

    • 26 AWG High Voltage Silicone Insulated Wire With Stranded Conductor AWM3136
    • 26 AWG High Voltage Silicone Insulated Wire With Stranded Conductor AWM3136
    • 26 AWG High Voltage Silicone Insulated Wire With Stranded Conductor AWM3136
    • 26 AWG High Voltage Silicone Insulated Wire With Stranded Conductor AWM3136
  • 26 AWG High Voltage Silicone Insulated Wire With Stranded Conductor AWM3136

    Product Details:

    Place of Origin: Guangdong
    Brand Name: Mysun
    Certification: UL/cUL
    Model Number: 3136-26AWG

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: Negotiable
    Packaging Details: 305 Meters per Roll and 7 Rolls per Carton
    Delivery Time: 7-10 Working Days
    Payment Terms: L/C, D/A, T/T, Western Union,Paypal,HSBC
    Supply Ability: 2000000 Meters per Day
    Contact Now
    Detailed Product Description
    Name: High Voltage Silicone Wire Conductor: Tinned Copper
    Conductor Type: Stranded Size: 26-20 AWG
    Conductor Construction: 1/0.4 1/0.5 1/0.65 1/0.81 No./mm Rated Voltage: 150℃
    Flammability Rating: FT-2 Printing: Yes
    Color: White,black,red,brown,yellow,green,blue,yellow/green Application: Electro Thermal Product And Home Appliance
    Original Of Place: China Package: 305 Meters Per Roll

    AWM 3136 26AWG Silicone rubber insulated wire



    Specifications:
    Nominal voltage: 300V
    Temperature range: 150℃
    Standard: UL758
    Insulation: silicone rubber
    Conductor: Tinned copper wire

    Application : Coffee machine,Microwave Oven

    Product dimensions:

    Conductor Insulation Max.cond
    resistance
    (Ω/km)
    Unit Length
    (m)(Ft)
    Size
    (AWG)
    Construction
    (No./mm)
    Diameter
    (mm)
    Inside thickness(mm) Diameter
    (mm)
    26 1/0.40 0.40 1.15 2.70 143 305/1000
    24 1/0.50 0.50 1.15 2.80 89.3 305/1000
    22 1/0.65 0.65 1.15 2.95 56.4 305/1000
    20 1/0.81 0.81 1.15 3.11 35.2 305/1000


     26 AWG High Voltage Silicone Insulated Wire With Stranded Conductor AWM3136




    FAQ:



    1, What’s the MOQ?

    One roll. 100M/200M/300M/305M/500M/Roll.



    2, How to get the samples?

    We have most of the commonly used samples in Stock.

    We can offer the free samples immediately.



    3, What’s the payment terms?

    LC, TT, Western Union, Money Gram and PayPal



    4, What’s the delivery date?

    Most of the commonly used products are in Stock. We can arrange it within one day.

    We will arrange the delivery date as your requirement while the Bulk Production.



    5, How to visit your factory/company?

    We are located in Shenzhen City, Guangdong Province, closed to Guangzhou, Dongguan and Hong Kong. Only one and a half hours drive away. Convenient for visit.





    Service

    Packaging : Hard cardboard carton ( Customizable)

    Shipment:
    1. by express
    2. by sea

    3. by air plane

    If you have your own shipper,you can tell me in advance.

    My targert is to give my best serivce for you and hope we can have a good cooperation!


    Delivery:
    Sample order: 1-3 working days
    Big order: 5-10 working day
    Customized order: 10-15 working days
