CCC 24awg XLPE Heating Wire UL3265 For Industrial Power Wires

  • CCC 24awg XLPE Heating Wire UL3265 For Industrial Power Wires
  • CCC 24awg XLPE Heating Wire UL3265 For Industrial Power Wires
Place of Origin Guangdong，China
Brand Name Mysun
Model Number UL3265
Minimum Order Quantity 3050meters
Price 0.06~0.2681USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/CCC/VDE/CCC/ISO9001:2008 Conductor Type Stranded
Color Blue Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc
Rated Voltage 150V Rated Temperature 125C
Size 24AWG Conductor Tinned Copper
Standard UL758 Insulation XLPE
Type Insulated Max.Cond Resistance 94.2 Ω/KM
Construction 11/0.16mm
High Light

CCC XLPE Heating Wire

,

24awg XLPE Heating Wire

,

XLPE Insulation Cable UL3265
Leave a Message
Product Description

Soft tinned copper wiring cable 22awg 17/0.16mm XLPE wires



 UL 3265 Specifications:

Nominal voltage:150V

Temperature range:125℃

Standard: UL3265

Insulation: xlpe

Conductor: Tinner copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


CONDUCTOR INSULATION MAX.COND RESISTANCE UNIT LENGTH(M)(Ft)

SIZE CONSTRUCTION (NO./mm) DIAMETER (mm) NOMINAL THICKNESS (mm) DIAMETER (Ω/KM)

(AWG) (mm)
32 7/0.08 0.24 0.26 0.76 563 610(2000)
30 7/0.10 0.3 0.82 361
28 7/0.127 0.38 0.9 227
26 7/0.16 0.48 1 143 305(1000)
24 11/0.16 0.6 1.12 89.3
22 17/0.16 0.76 1.27 56.4
20 21/0.18 0.94 1.46 35.2
18 16/0.254 1.18 1.7 22.2
16 26/0.254 1.5 2.02 14

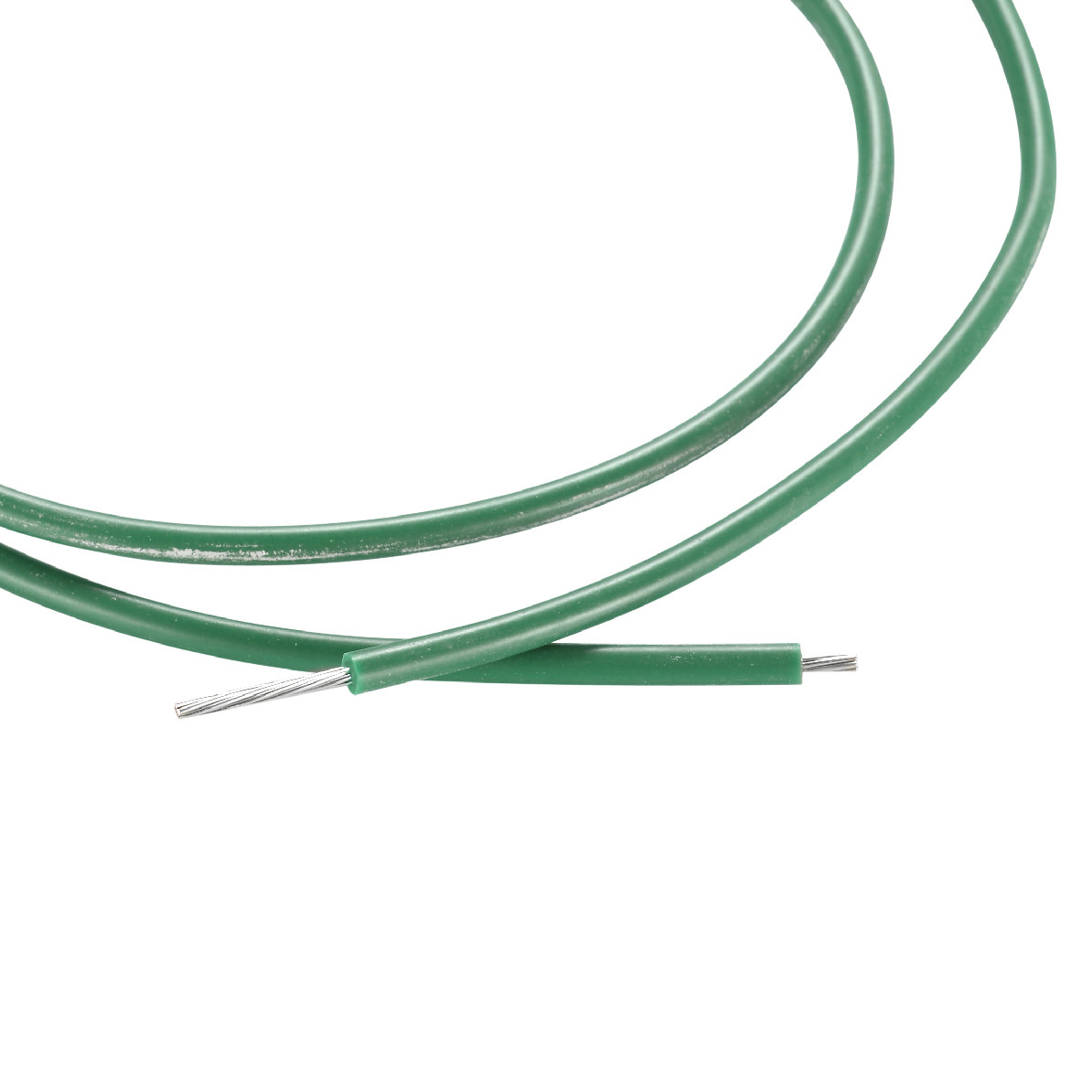

CCC 24awg XLPE Heating Wire UL3265 For Industrial Power Wires 0

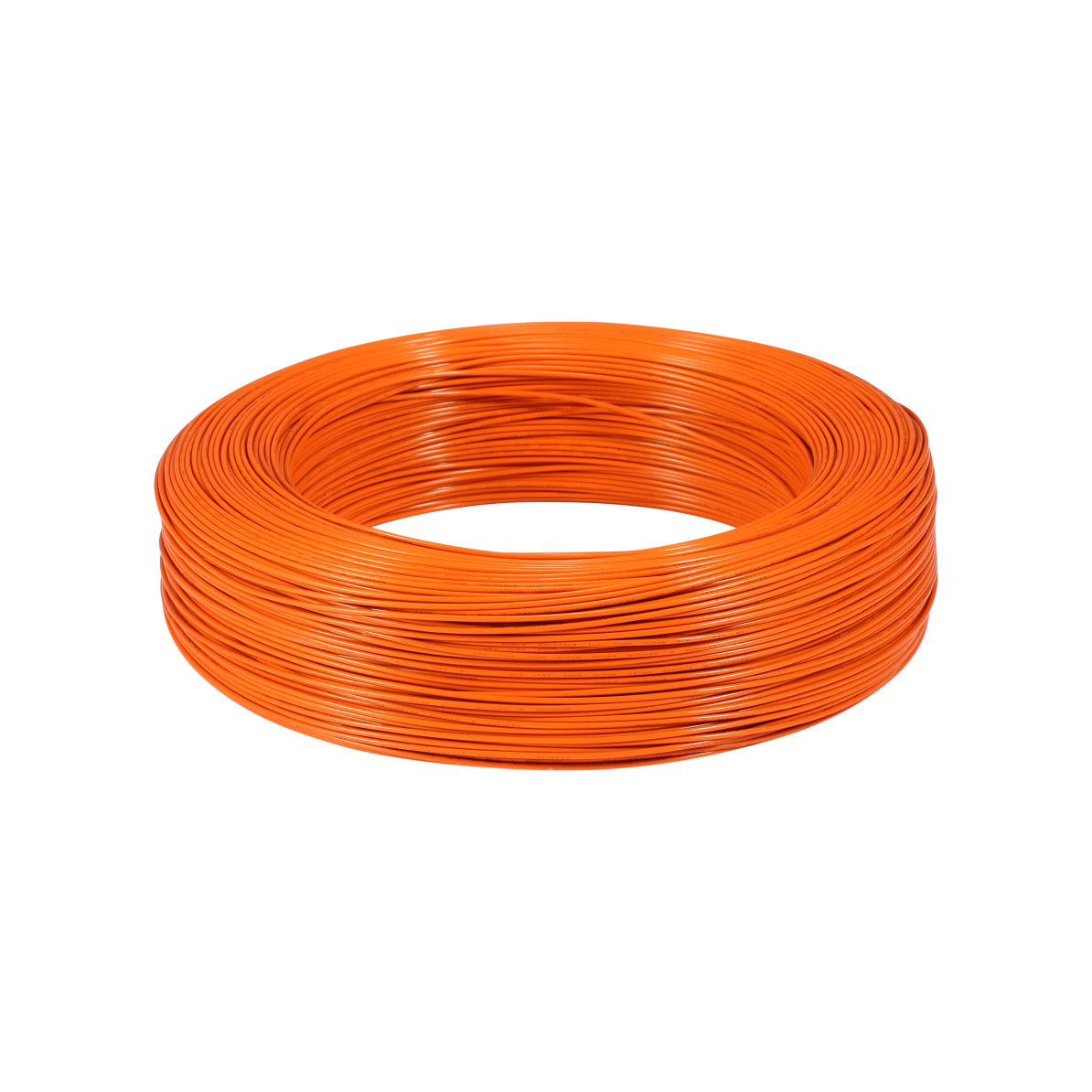

CCC 24awg XLPE Heating Wire UL3265 For Industrial Power Wires 1




Our Product



CCC 24awg XLPE Heating Wire UL3265 For Industrial Power Wires 2



Product Description



CCC 24awg XLPE Heating Wire UL3265 For Industrial Power Wires 3

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



CCC 24awg XLPE Heating Wire UL3265 For Industrial Power Wires 4







Company Introduction



CCC 24awg XLPE Heating Wire UL3265 For Industrial Power Wires 5

CCC 24awg XLPE Heating Wire UL3265 For Industrial Power Wires 6
