| Place of Origin: | CHINA |
| Brand Name: | Mysun |
| Certification: | UL,cUL |
| Model Number: | UL3289 |
| Minimum Order Quantity: | 5000 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 305m per roll |
| Delivery Time: | 5-10 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 15km per day |
| Rated Voltage: | 600V | Rated Temperature: | 150C |
|---|---|---|---|
| Insulation: | XLPE | Conductor: | Tinned Copper |
| Environmental: | ROHS,REACH, LOW SMOKE | Standard: | UL,cUL Certificates |
| Application: | Metros, Appliance | Flame: | 100% Pass FT-2, Also Can Make VW-1 And FT-1 |

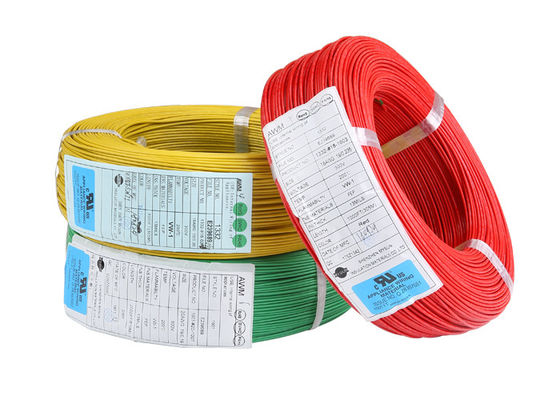

XLPE insulated cable UL certificated
Specifications:
Nominal voltage: 600V
Temperature range: 150C
Standard: UL 758
Insulation: XLPE
Conductor: tinned copper wire
Product dimensions:
| Conductor | Insulation | Max.cond resistance (Ω/km) |
Unit Length (m)(Ft) |
|||
| Size (AWG) |
Construction (No./mm) |
Diameter (mm) |
Inside thickness(mm) | Diameter (mm) |
||
| 28 | 7/0.127 | 0.38 | 0.78 | 1.94 | 227 | 610/2000 |
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 143 | 610/2000 |
| 24 | 11/0.16 | 0.60 | 0.78 | 2.16 | 89.3 | 305/1000 |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 56.4 | 305/1000 |
| 20 | 21/0.18 | 0.94 | 0.78 | 2.49 | 35.2 | 305/1000 |
| 18 | 16/0.254 | 1.18 | 0.78 | 2.73 | 22.2 | 305/1000 |
| 16 | 26/0.254 | 1.50 | 0.78 | 3.05 | 14 | 305/1000 |
| 14 | 41/0.254 | 1.89 | 0.78 | 3.45 | 8.78 | 305/1000 |
| 12 | 65/0.254 | 2.37 | 0.78 | 3.93 | 5.53 | 305/1000 |
| 10 | 105/0.254 | 3.02 | 0.78 | 4.58 | 3.476 | 305/1000 |
| 9 | 133/0.254 | 3.36 | 1.15 | 4.92 | 2.73 | 100/328 |
| 8 | 133/0.28 | 3.75 | 1.15 | 6.05 | 2.16 | 100/328 |
FAQ:
1. Does your XLPE wires are Low smoke and halogen free?
A: Yes of course, our XLPE wires are made by Environmental protection materials and pass all testing
2.How can I get samples?
A:Please tell us the detailed information of products you need. Then we will check our stock.We can offer the free samples immediately.
If we don't have the exact model you need, Maybe we will send you similar sample if you accept.
If you couldn’t accept,it will take us 3-5days to get the sample done.
Service:
Shipment:
1. by express
2. by sea
3. by air
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
