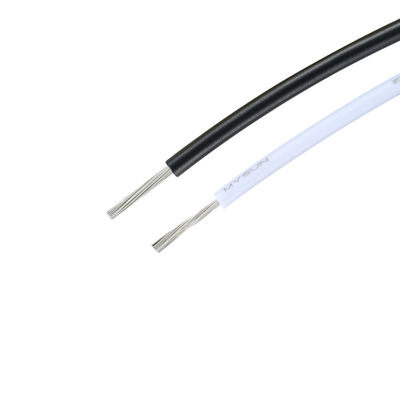

Coffee Machine Electrical XLPE Wires 24AWG 11/0.16 VW-1 600 / 750v Rated Voltage

  • Coffee Machine Electrical XLPE Wires 24AWG 11/0.16 VW-1 600 / 750v Rated Voltage
  • Coffee Machine Electrical XLPE Wires 24AWG 11/0.16 VW-1 600 / 750v Rated Voltage
  • Coffee Machine Electrical XLPE Wires 24AWG 11/0.16 VW-1 600 / 750v Rated Voltage
Place of Origin Guangdong，China
Brand Name Mysun
Model Number UL3289
Minimum Order Quantity 3050meters
Price 0.06~0.48USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/CCC/VDE/CCC/ISO9001:2008 Conductor Type Stranded
Color Blue Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc
Rated Voltage 600/750v Rated Temperature 150C
Size 24AWG Conductor Tinned Copper
Standard UL758 Insulation XLPE
Type Insulated Max.Cond Resistance 94.2Ω/KM
Construction 11/0.16
High Light

Coffee Machine XLPE Wires

,

XLPE Wires 24AWG

,

Coffee Machine XLPE Insulated Wire
Leave a Message
Product Description

UL3289 Tinned Copper XLPE Electric Wires 14AWG 150C Insulated in blue color



 UL 3289 Specifications:

Nominal voltage:600-750V

Temperature range: 125℃

Standard: UL3289

Insulation: xlpe

Conductor: Tinner copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.



Coffee Machine Electrical XLPE Wires 24AWG 11/0.16 VW-1 600 / 750v Rated Voltage 0


Conductor
Insulation
Jacket


Diameter
Size
(AWG)
Construction
(No./mm)
Diameter
(mm)
Nominal Thickness
(mm)
Outer Garment Thickness
(nm)
26
7/0.16
0.48








0.78
2.04
143







305/1000
24
11/0.16
0.60
2.16
89.3
22
17/0.16
0.76
2.32
56.4
20
21/0.18
0.94
2.49
35.2
18
16/0.254
1.18
2.73
22.2
16
26/0.254
1.50
3.06
14
14
41/0.254
1.89
3.45
8.78
12
65/0.254
2.37
3.93
5.53
10
105/0.254
3.02
4.58
3.476
9
133/0.254
3.36
4.92
2.73



Our Product



Coffee Machine Electrical XLPE Wires 24AWG 11/0.16 VW-1 600 / 750v Rated Voltage 1



Product Description



Coffee Machine Electrical XLPE Wires 24AWG 11/0.16 VW-1 600 / 750v Rated Voltage 2



Coffee Machine Electrical XLPE Wires 24AWG 11/0.16 VW-1 600 / 750v Rated Voltage 3





Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



Coffee Machine Electrical XLPE Wires 24AWG 11/0.16 VW-1 600 / 750v Rated Voltage 4







Company Introduction



Coffee Machine Electrical XLPE Wires 24AWG 11/0.16 VW-1 600 / 750v Rated Voltage 5

Coffee Machine Electrical XLPE Wires 24AWG 11/0.16 VW-1 600 / 750v Rated Voltage 6
