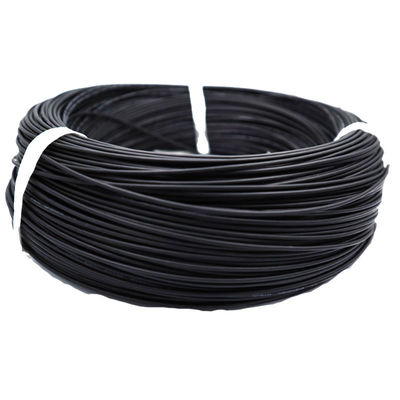

UL3266 XLPE Hook Up Wire 125C 18awg VW-1 For New Energy Automobile

  • UL3266 XLPE Hook Up Wire 125C 18awg VW-1 For New Energy Automobile
Place of Origin Guangdong，China
Brand Name Mysun
Model Number UL3266
Minimum Order Quantity 3050meters
Price 0.06~0.48USD per M
Packaging Details Standard packge: cardboard box Accept custom-made.
Delivery Time 7-15 working day
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 500000 Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Certification ROHS/CCC/VDE/CCC/ISO9001:2008 Conductor Type Stranded
Color Black Usage Widely Used In Home Appliance ,lighting ,heater,motor & Generator,UAU,robot,industrial Power Etc
Rated Voltage 300v Rated Temperature 125C
Size 18AWG Conductor Tinned Copper
Standard UL758 Insulation XLPE
Type Insulated Max.Cond Resistance 23.2Ω/KM
Construction 16/0.254
High Light

UL3266 XLPE Hook Up Wire

,

XLPE Hook Up Wire 125C

,

New Energy Automobile XLPE Insulation Wires
Leave a Message
Product Description

XLPE insulation wires 125C UL3266 18awg VW-1 for new energy automonbile



 UL 3266  Specifications:

Nominal voltage:300V

Temperature range: 125℃

Standard: UL3266

Insulation: xlpe

Conductor: Tinner copper





Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.







Product Parameter



Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.


Conductor Insulation Max.Cond Resistance Unit length
Size
(AWG)		 Construction
(No./mm)		 Diameter
(mm)		 Nominal Thickness
(mm)		 Diameter
(mm)		 (Ω/KM) (M)(Ft)
32 7/0.08 0.24 0.39 1.02 563 610/2000
30 7/0.10 0.30 1.08 361
28 7/0.127 0.38 1.16 227
26 7/0.16 0.48 1.26 143 305/1000
24 11/0.16 0.60 1.38 89.3
22 17/0.16 0.76 1.54 56.4
20 21/0.18 0.94 1.72 35.2
18 16/0.254 1.18 1.96 22.2
16 26/0.254 1.50 2.28 14
14 41/0.254 1.89 2.67 8.78
12 65/0.254 2.37 3.15 5.53
10 105/0.254 3.02 3.80 3.476




Our Product



UL3266 XLPE Hook Up Wire 125C 18awg VW-1 For New Energy Automobile 0



Product Description



UL3266 XLPE Hook Up Wire 125C 18awg VW-1 For New Energy Automobile 1

Package & Delivery



Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days



UL3266 XLPE Hook Up Wire 125C 18awg VW-1 For New Energy Automobile 2







Company Introduction



UL3266 XLPE Hook Up Wire 125C 18awg VW-1 For New Energy Automobile 3

UL3266 XLPE Hook Up Wire 125C 18awg VW-1 For New Energy Automobile 4
